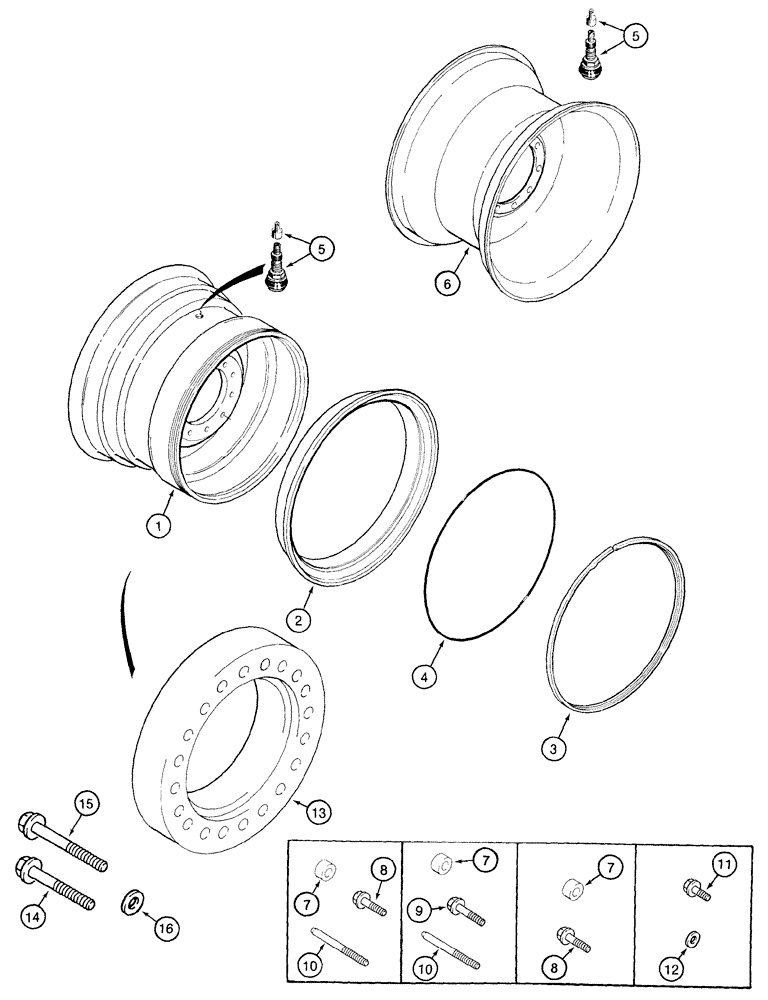

Запчасти Case IH 2155 (6-50) - DRIVE WHEELS AND SPACERS (03) - POWER TRAIN

111977A3

WHEEL ASSY.

WHEEL - drive, 13.00 x 32 inch tire

2шт.

Includes (4) 111866A1 decal, multi-piece rims, item 9, parts list page 9F-47.

1шт.

135898A1

WHEEL ASSY.

WHEEL - drive, 13.00 x 32 inch tire, dual ready

2шт.

Includes (4) 111866A1 decal, multi-piece rims, item 9, parts list page 9F-47.

1шт.

1

NSS

NOT SOLD SEPARAT

RIM - drive wheel

1шт.

2

184471C1

WHEEL

- wheel, side

1шт.

3

184472C1

RING

- wheel, locking

1шт.

4

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

M29.8 ID x .30 Thk, Wheel ring sealing

1шт.

5

179482C1

VALVE STEM

VALVE - inflation, includes cap, for 5/8 inch hole

2шт.

6

124092A1

WHEEL ASSY.

WHEEL - drive, one piece, 24.5 x 32 inch, 16 PR tire, single drive, 4 Row Wide

2шт.

6

129948A1

WHEEL

- drive, one piece, 20.8-38 14 PR tire, outer dual, 5 Row Wide

2шт.

Includes (2) 135786A2 decal, dual wheel boly torque, parts list 9F 45

1шт.

7

130871A1

SPACER

- wheel bolt, used with 111977A3, 135898A1 or 124092A1 wheels, if used

30шт.

8

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

BOLT - hex flange, 20 - 1.5 x 70 mm, class 10.9, used with 111977A3 or 124092A1 single wheels

30шт.

9

130934A1

FLANGE BOLT,Hex, M20 x 1.5 x 90mm, Cl 10.9

BOLT - hex flange, 20 - 1.5 x 90 mm, class 10.9, used with 135898A1 dual ready wheels

30шт.

10

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

BOLT - special, drive wheel starter, used with 111977A3, 124092A1 or 135898A1 wheels

2шт.

11

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

- hex, 20 - 1.5 x 45 mm, class 10.9, used with 129948A1 outer dual wheels

10шт.

12

137339A1

WASHER

- flat, special, 22 x 34 x 3.4 mm, used with 129948A1 outer dual wheels

10шт.

13

135171A1

SPACER

- wheel, 76 mm, 40 inch rows, 5 Row Wide

2шт.

14

514-1224

BOLT,Hex, M20 x 1.5 x 125mm, Cl 10.9

- hex, 20 - 1.5 x 125 mm, class 10.9, 40 inch rows, 5 Row Wide

10шт.

15

514-1225

BOLT,Hex, M20 x 1.5 x 140mm, Cl 10.9

- hex, 20 - 1.5 x 140 mm, class 10.9, 40 inch rows, 5 Row Wide

30шт.

16

137339A1

WASHER

- flat, special, 22 x 34 x 3.4 mm, 40 inch rows, 5 Row Wide

30шт.
