Запчасти Case IH 2155 (6-48) - AXLE SPACERS (03) - POWER TRAIN

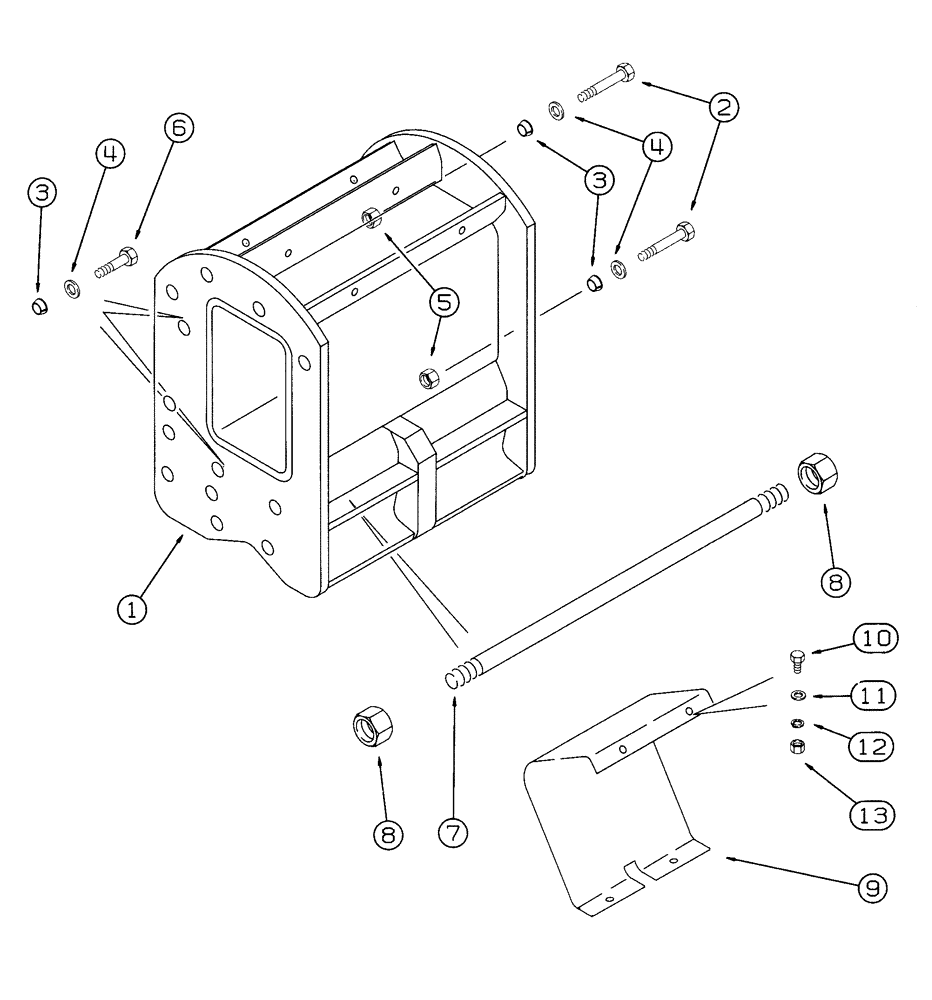

Схема запчастей Case IH 2155 - (6-48) - AXLE SPACERS (03) - POWER TRAIN
4
10
8
1
6
3
5
8
2
9
12
7
4
3
13
11

Артикул

Название

Примечание

Количество

1

125386A1

EXTENSION

SPACER - axle, 15-1/2 inch, single wheel, 5 Row Wide; dual ready wheels, 5 Row Narrow

2шт.

1

181278A1

EXTENSION

SPACER - axle, 12 inch, left-hand, dual ready wheels, 4 Row Wide

1шт.

1

181279A1

EXTENSION

SPACER - axle, 12 inch, right-hand, dual ready wheels, 4 Row wide

1шт.

1

127271A1

EXTENSION

SPACER - axle, right-hand, 34 inch, dual ready wheels, 5 Row Wide

1шт.

1

127272A1

EXTENSION

SPACER - axle, left-hand, 34 inch, dual ready wheels, 5 Row Wide

1шт.

2

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

- hex, 20 - 2.5 x 90 mm, class 10.9

26шт.

3

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered, final drive mounting

4шт.

4

137339A1

WASHER

- flat, special, 22 x 34 x 3.4 mm, hardened

52шт.

5

832-41320

NUT,M20 x 2.5, Cl 10

NUT - hex, self-locking, 20 mm - 2.5, class 10.9

26шт.

6

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 60 mm, class 10.9

26шт.

7

125395A1

BOLT,1 1/4" - 7 x 2016mm, Full Thd

BOLT - special, axle tension, used with 15-1/2 inch spacer

1шт.

7

127279A1

BOLT,1 1/4 - 7 x 2896mm

BOLT - special, axle tension, used with 34 inch spacer

1шт.

7

1990365C1

STEM,Hex, 1 1/4" - 7 x 1921mm

BOLT - special, axle tension, used with 12 inch spacer

1шт.

8

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

2шт.

9

131211A1

GUARD

- axle

2шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

11

495-31016

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch

8шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

Выбрано товаров: 19
