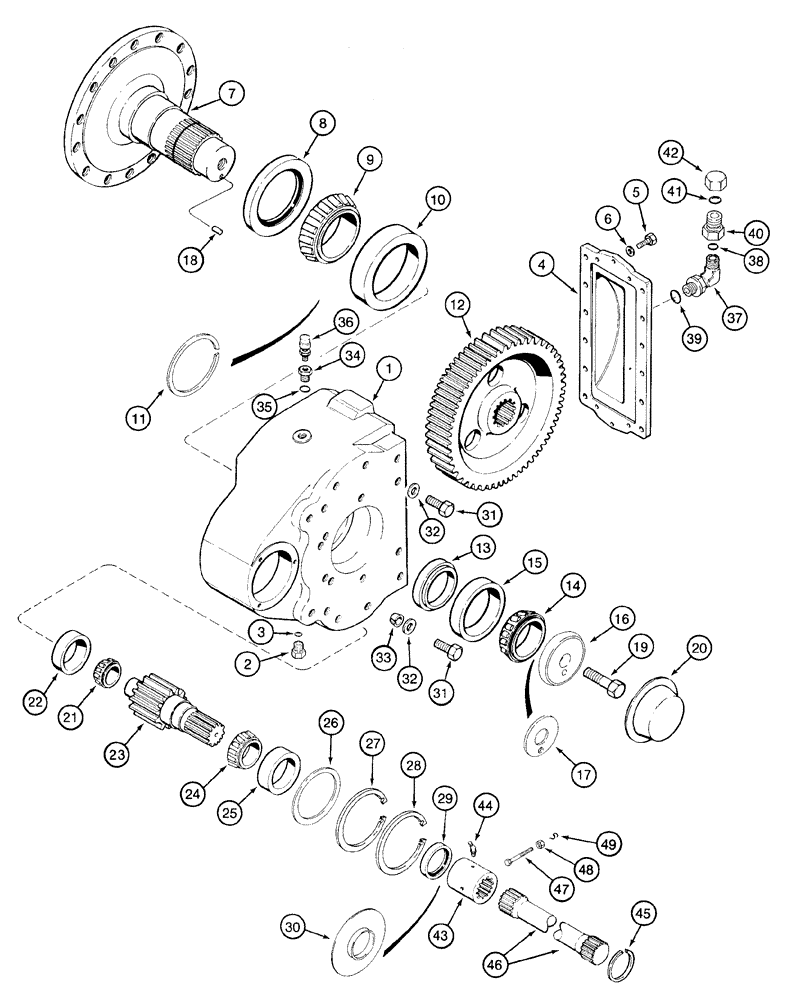

Запчасти Case IH 2155 (6-44) - FINAL DRIVE ASSEMBLY (03) - POWER TRAIN

1997415C2

REDUCER

DRIVE ASSEMBLY - final, heavy duty

2шт.

1

135285A1

HOUSING

- final drive

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

4

135286A1

COVER

- housing

1шт.

5

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

14шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

14шт.

7

135288A2

SHAFT

- output

1шт.

8

135293A1

OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk

- oil

1шт.

9

135648A1

ROLLER BEARING,133.35mm ID x 46.04mm W

BEARING - tapered roller, outer shaft

1шт.

10

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

CUP - tapered roller bearing, outer shaft

1шт.

11

135297A1

CIRCLIP

RING - retaining, drive gear

1шт.

12

135287A1

PINION

GEAR - final drive, 73 teeth

1шт.

13

135307A1

SPACER

- final drive

1шт.

14

135294A1

THRUST BEARING,71.44mm ID x 41.19mm W

BEARING - tapered roller, inner shaft

1шт.

15

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

CUP - tapered roller bearing, inner shaft

1шт.

16

135289A1

RETAINER

PLATE - bearing retainer

1шт.

17

135299A1

SHIM,0.051mm Thk

Bearing, Output shaft 0.051mm Thk

1шт.

17

135300A1

SHIM,0.457mm Thk

Bearing, Output shaft 0.457mm Thk

1шт.

17

135301A1

SHIM,0.635mm Thk

Bearing, Output shaft 0.635mm Thk

1шт.

18

837-8016

DOWEL,8mm OD x 16mm L

PIN - dowel, 8 x 16 mm, hardened

1шт.

19

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

1шт.

20

135296A1

BEARING COVER

- final drive

1шт.

21

135295A1

ROLLER BEARING,44.46mm ID x 35.98mm W

BEARING - tapered roller, inner

1шт.

22

135650A1

BEARING CUP,101.6mm OD x 26.99mm W

CUP - tapered roller bearing, inner

1шт.

23

135290A1

SHAFT

- input, 12 teeth

1шт.

24

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

BEARING - tapered roller, outer shaft

1шт.

25

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

CUP - tapered roller bearing, outer shaft

1шт.

26

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

Bearing, Input shaft 0.051mm Thk

1шт.

26

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

Bearing, Input shaft 0.46mm Thk

1шт.

26

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

Bearing, Input shaft 0.63mm Thk

1шт.

27

135298A1

CIRCLIP

RING - retaining

1шт.

28

101-21412

SNAP RING,#412, 4.430", Int

RING, SNAP, #412, 4.430", Int

1шт.

29

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

- lip, oil

1шт.

30

135291A1

GUARD

- seal

1шт.

31

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 - 2.5 x 70 mm, class 10.9

26шт.

32

137339A1

WASHER

- flat, special, 22 x 34 x 3.4 mm

26шт.

33

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered

4шт.

34

135950A1

ADAPTER

- straight, special, 1/8 PT x 1-1/16-12 inch O-ring boss

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

2шт.

37

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

- 90 degree, 1-7/16-12 face seal x 1-1/16-12 inch adj O-ring boss

2шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

40

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

ADAPTER - reducing, 1-3/16-12 face seal x 1-7/16-12 inch female face

2шт.

41

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

42

201-907

CAP,1-3/16" - 12 ORFS

2шт.

43

184341C2

SPLINED COUPLING

COUPLING ASSEMBLY - axle drive shaft

4шт.

44

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease, 65 degree, 1/4 drive type x 3/4 inch

1шт.

45

123763A1

SNAP RING

RING - snap, special

8шт.

46

123709A1

SHAFT

- final drive, 7-19/32 inch (193 mm) long, left-hand, single wheels, 4 Row Wide and 5 Row Narrow

1шт.

46

1342676C2

SHAFT

- final drive, 10-3/4 inch (273 mm) long, right-hand, single wheels, 4 Row Wide and 5 Row Narrow

1шт.

46

135974A1

SHAFT

- final drive, 23-1/16 inch (586 mm) long, left-hand, single wheels, 5 Row Wide; dual ready wheels, 5 Row Narrow

1шт.

46

126098A2

SHAFT

- final drive, 26-1/4 inch (666 mm) long, right-hand, single wheels, 5 Row Wide; dual wheels, 5 Row Narrow

1шт.

46

135708A1

SHAFT

- final drive, 19-3/8 inch (492 mm) long, left-hand, dual ready wheels, 4 Row Wide

1шт.

46

1997838C2

SHAFT

- final drive, 22-1/2 inch (572 mm) long, right-hand, dual ready wheels, 4 Row Wide

1шт.

46

135977A1

SHAFT

- axle drive, 41-3/16 inch (1046 mm) long, left-hand, dual ready wheels, 5 Row Wide

1шт.

46

184374C2

SHAFT

- final drive, 44-3/8 inch (1126 mm) long, right-hand, dual ready wheels, 5 Row Wide

1шт.

47

113-2293

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

48

654049R1

LOCK NUT

- hex, self-locking, 3/8 inch NC

4шт.

49

21864R1

COTTER PIN

- retaining, S-type

4шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
