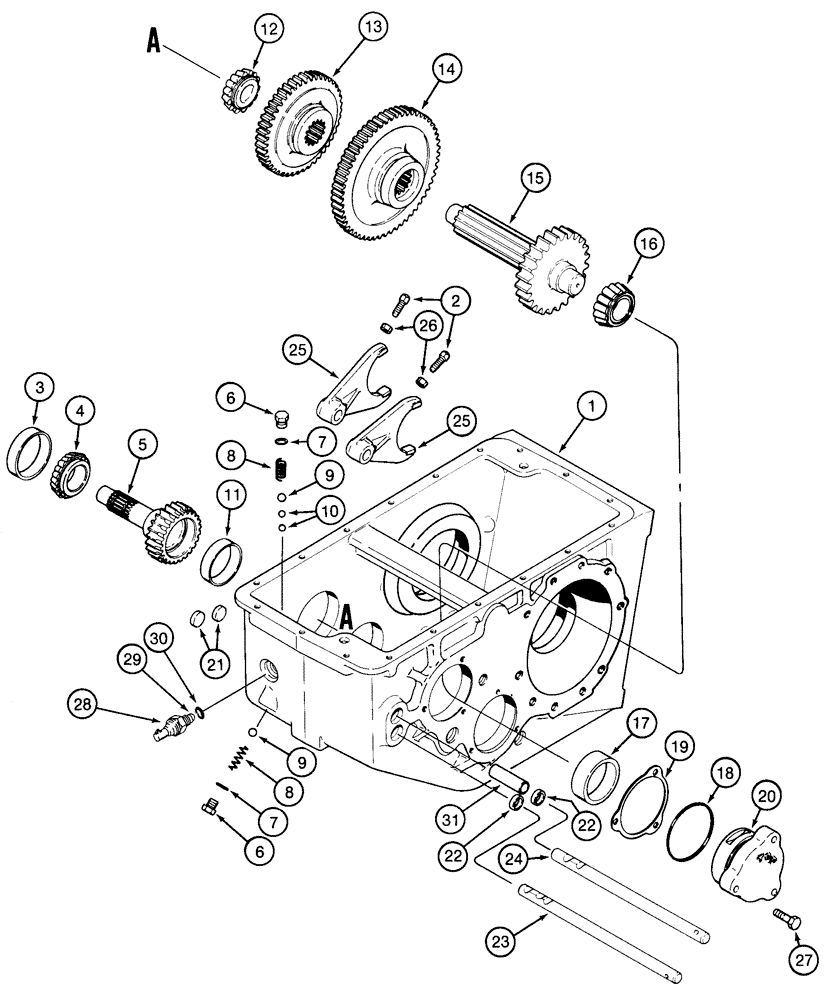

Запчасти Case IH 2155 (6-42) - TRANSMISSION ASSEMBLY, INPUT SHAFT, GEARS AND SHIFTER RAILS (03) - POWER TRAIN

139007A1

TRANSMISSION

TRANSMISSION ASSEMBLY - parts list pages 6-39 - 6-43

1шт.

139007A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

139007A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

1997980C1

HOUSING

HOUSING - transmission, see item 1, page 6-41

1шт.

2

1997657C1

SET SCREW

SCREW - set, shifter fork

2шт.

3

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.

4

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING - tapered roller, 1-25/32 inch ID

1шт.

5

119835A1

PINION

SHAFT - gear, input pinion, 26 teeth

1шт.

6

76349

PLUG,9/16" - 18 ORB

PLUG, Hex Hd, 9/16"-18 ORB

2шт.

8

588801R1

SPRING

SPRING - detent

2шт.

9

211-1016

BALL,12.7mm OD, Gr 24

BALL - chrome alloy steel, 1/2 inch, grade 24

2шт.

10

211-1014

BALL,7/16" Dia

BALL - chrome alloy steel, 7/16 inch, grade 24

2шт.

11

50213V

BEARING CUP

CUP - tapered roller bearing, 2-3/4 inch OD

1шт.

12

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING - tapered roller, 1-5/16 inch ID

1шт.

13

1997592C1

PINION

GEAR - second and third sliding, 26 and 48 teeth

1шт.

14

1342487C1

PINION

GEAR - first sliding, 57 teeth

1шт.

15

406607R3

SHAFT

SHAFT - gear, 32 teeth

1шт.

16

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

BEARING - tapered roller, 2-7/8 inch OD

1шт.

17

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

CUP - tapered roller bearing, 1-9/16 inch ID

1шт.

18

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

O-RING, -154, Cl 7, 3.737" ID x .103" Thk

1шт.

19

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

SHIM, (0.003") 0.076mm Thk

1шт.

19

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

SHIM, (0.005") 0.127mm Thk

1шт.

19

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

SHIM, (0.007") 0.178mm Thk

1шт.

19

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

SHIM, (0.030") 0.762mm Thk

1шт.

20

1997998C1

BEARING COVER,72.99 mm ID x 101.51 mm OD x 37.8 mm

CAP - bearing retainer

1шт.

21

41-1612

PLUG,Cup, 3/4", Stainless

PLUG, Cup, 3/4", Stainless

2шт.

22

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

SEAL - oil

2шт.

23

1342442C3

SHIFT RAIL

SHAFT - second and third gear shifter

1шт.

24

1342443C3

SHIFT RAIL

SHAFT - first gear shifter

1шт.

25

1997656C1

SHIFTER FORK

FORK - gear shifter

1шт.

26

829-1310

NUT,M10, Cl 10

NUT - hex, 10 mm - 1.5, class 10

2шт.

27

183089A1

SCREW

BOLT - hex with Loctite, special, 10 - 1.5 x 35 mm, class 10.9

3шт.

ref #27 183089a1 production only service p/n is 628-10035 plus use #516 loctite per herb - dmm

1шт.

28

1983575C1

SWITCH

SWITCH - neutral, transmission

1шт.

29

211-1010

BALL,5/16" OD

BALL - chrome alloy steel, 5/16 inch, grade 24

1шт.

31

189168A1

SPACER

SPACER - shift rail

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

1шт.
