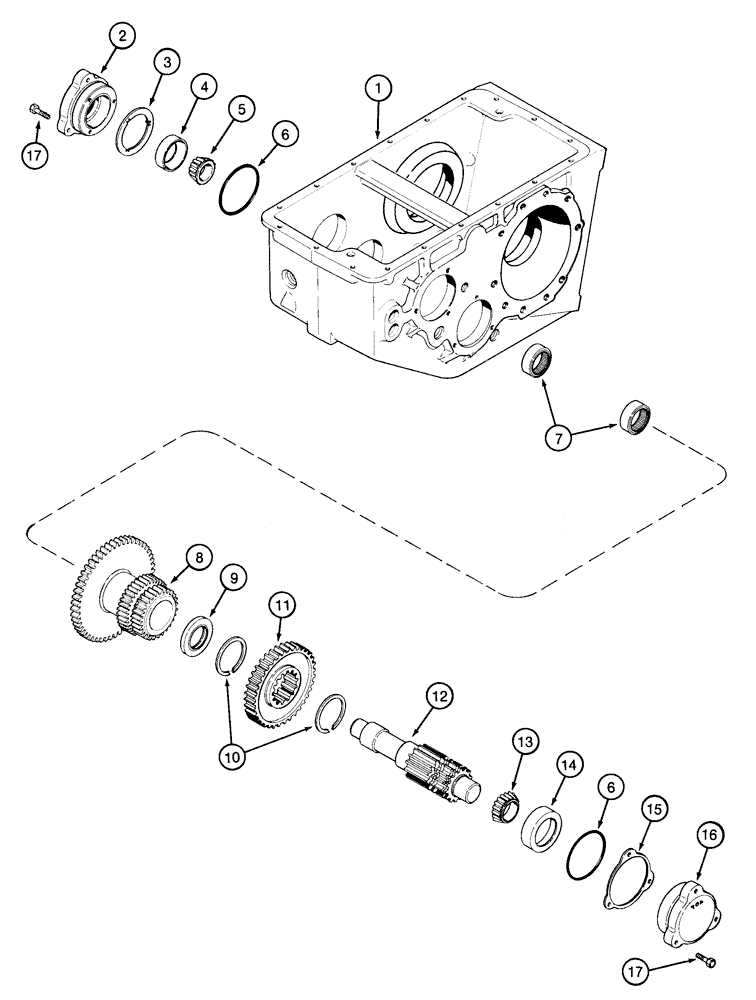

Запчасти Case IH 2155 (6-40) - TRANSMISSION ASSEMBLY, DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN

139007A1

TRANSMISSION

TRANSMISSION ASSEMBLY - parts list pages 6-39 - 6-43

1шт.

139007A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

139007A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

1997980C1

HOUSING

HOUSING - transmission, item 1, see page 6-43

1шт.

2

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

BEARING COVER HOUSING - bearing, left-hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

WASHER - thrust

1шт.

4

131312C1

BEARING CUP

CUP - tapered roller bearing, left-hand pinion shaft

1шт.

5

871244R1

ROLLER BEARING

BEARING - tapered roller, left-hand pinion shaft

1шт.

6

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

O-RING, -154, Cl 7, 3.737" ID x .103" Thk

2шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle

2шт.

8

1997591C1

PINION

GEAR - spool, 59, 28, and 28 teeth

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

SPACER - spool gear

1шт.

10

196693H1

RING

RING - snap, change gear

2шт.

11

406606R1

GEAR

GEAR - change driven, 41 teeth

1шт.

12

401878R1

SHAFT

SHAFT - pinion, 14 teeth

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

BEARING - tapered roller

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP - tapered roller bearing

1шт.

15

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

SHIM, (0.003") 0.076mm Thk

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

SHIM, (0.005") 0.127mm Thk

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

SHIM, (0.007") 0.178mm Thk

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

SHIM, (0.030") 0.762mm Thk

1шт.

16

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

BEARING HOUSING HOUSING - bearing, right-hand

1шт.

17

183089A1

SCREW

BOLT - hex with Loctite, special, 10 - 1.5 x 35 mm, class 10.9

6шт.

ref #17 183089a1 is production only. service number is 628-10035 plus #516 loctite dmm per herb.

1шт.
