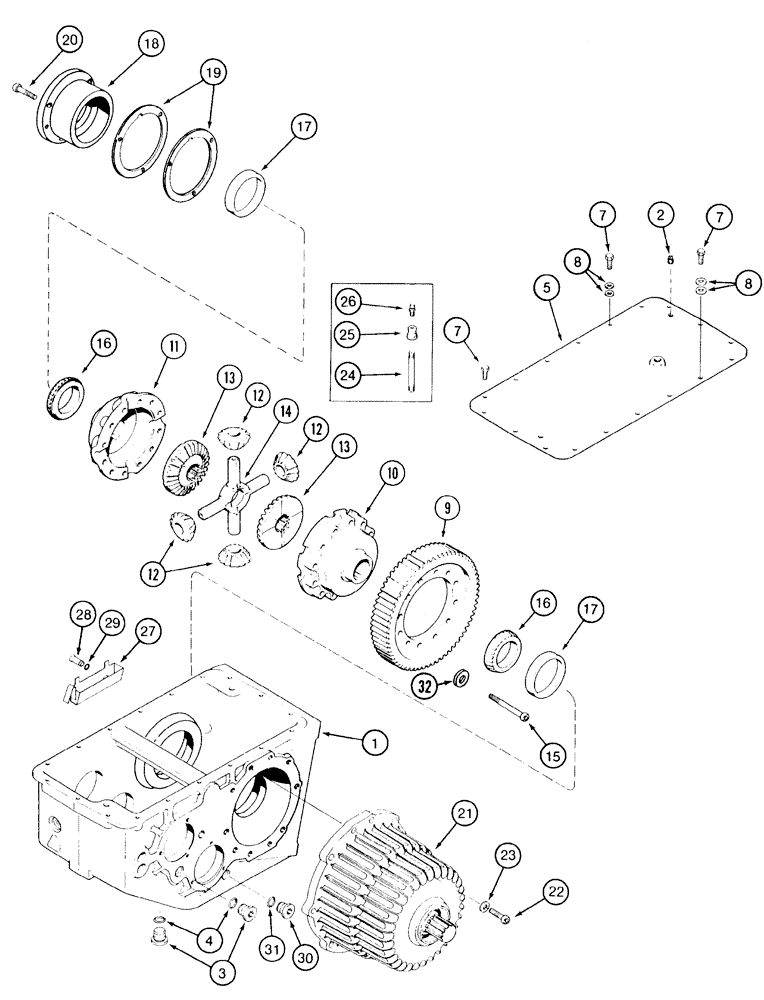

Запчасти Case IH 2155 (6-38) - TRANSMISSION ASSEMBLY, HOUSING AND DIFFERENTIAL (03) - POWER TRAIN

139007A1

TRANSMISSION

TRANSMISSION ASSEMBLY - parts list pages 6-39 - 6-43

1шт.

139007A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

139007A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

1997980C1

HOUSING

HOUSING - transmission

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG - square, 1/4 inch PT

2шт.

3

9841223

PLUG,1-1/16" - 12 ORB

PLUG, Hex Soc, 1 1/16"-12 ORB

2шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

5

1997577C2

COVER

COVER - transmission housing

1шт.

6

REF

INSTRUCTION

GASKET - housing cover use, Loctite 596, see below

1шт.

7

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 20 mm

18шт.

8

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

9

1997997C2

DRIVEN GEAR

GEAR - differential driven, 66 teeth, replaces 1997997C1 gear

1шт.

1997406C1

HOUSING

HOUSING ASSEMBLY - differential

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - differential, right-hand

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - differential, left-hand

1шт.

12

361061R3

PINION

GEAR - pinion, 15 teeth

4шт.

13

404084R2

PINION

GEAR - bevel, 28 teeth

2шт.

14

393637R2

DIFF. SPIDER

SPIDER - differential

1шт.

15

963-16080

HEX SOC SCREW,M16 x 80mm, Cl 10.9

BOLT - hex socket, 16 - 2.0 x 80 mm, class 10.9

12шт.

16

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

BEARING - tapered roller, differential

2шт.

17

ST981

BEARING CONE,112.71mm OD x 19.05mm W

CUP - tapered roller bearing, differential

2шт.

18

1997956C1

BALL RACE

HOUSING - bearing

1шт.

19

1997957C2

SHIM,134mm ID x 176mm OD x 0.81mm Thk

SHIM, , Bearing housing, Replaces 1997997C1 0.813mm Thk

1шт.

19

1997958C1

SHIM

SHIM - bearing housing, 0.127 mm thick

1шт.

19

1997947C1

SHIM

SHIM - bearing housing, 0.076 mm thick

1шт.

20

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW, Hex Soc Hd, M10 x 25, 12.9

3шт.

21

1997983C1

BRAKE ASSY.

BRAKE ASSEMBLY - master, transmission, see page 7-7 for correct assembly

2шт.

21

1997983C1R

REMAN-BRAKE ASSY.

Reman for New PN 1997983C1

2шт.

21

1997983C1C

CORE-BRAKE ASSY.

Return Number

2шт.

22

963-12040

HEX SOC SCREW,M12 x 40mm, Cl 10.9

BOLT - hex socket, 12 - 1.75 x 40 mm, class 10.9

20шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, M13.5 x 24.5 x 3, HT

20шт.

24

221-1114

LUBE NIPPLE,1/8" NPT x 4 1/2"

NIPPLE, LUBE, , Straight 1/8" NPT x 4 1/2"

1шт.

25

144098

REDUCER

COUPLING - reducing, 1/4 to 1/8 PT

1шт.

26

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

27

1997575C1

GUARD

SHIELD - transmission lube

1шт.

28

1997393C1

TUBE,10.22 mm ID, 12.7 mm OD

TUBE - transmission lube

1шт.

29

100-1150

SNAP RING,#50, Ext

Ring, Snap, , use as a spacer #50, Ext

1шт.

30

86625138

PLUG,7/18" - 14

PLUG, Hex Soc, 7/8"-14 ORB

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

12шт.

345-132

SEE PARTS MARKETING

SEALANT - Loctite 596, red, 1 ml tube

1шт.

REFER TO 345-132 USE LOCTITE ZPX 81915.

1шт.
