Запчасти Case IH 2155 (6-36) - TRANSMISSION LOWER SHIFT CONTROLS (03) - POWER TRAIN

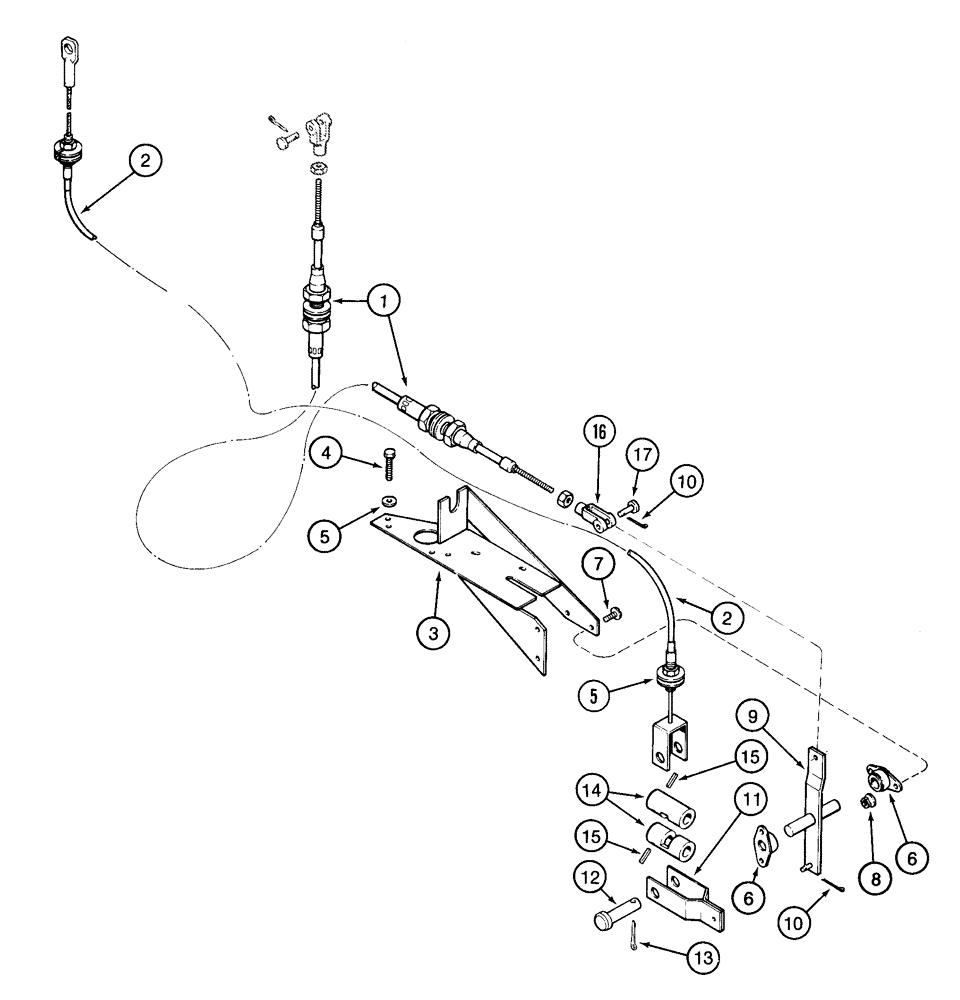

Схема запчастей Case IH 2155 - (6-36) - TRANSMISSION LOWER SHIFT CONTROLS (03) - POWER TRAIN
11
2
15
9
16
4
12
1
17
5
3
10
14
2
15
6
5
6
8
13
7
10

Артикул

Название

Примечание

Количество

1

124817A1

CABLE,2791mm L

- transmission shift, 2nd and 3rd speed, 110 inch (2791 mm) long

1шт.

2

115398A1

CABLE,3209mm L

- transmission shift, first speed

1шт.

3

181376A1

SUPPORT

- shift linkage

1шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

3шт.

6

A63366

SPHERICAL BEARING,19mm ID

BEARING - pivot, pivot

2шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

9

143588A1

LEVER

- shift, lower

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

11

194437C1

LINK

- shift rail control

1шт.

12

439-51240

HEADED PIN,19.05mm OD x 63.5mm L

PIN - headed, 3/4 x 2-1/2 inch

1шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

14

192689C1

PIN,34.93mm OD x 73.7mm L

- shift rail extension

2шт.

15

38-31620

PIN,6.35mm OD x 31.75mm L

2шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

17

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

3шт.

Выбрано товаров: 17
