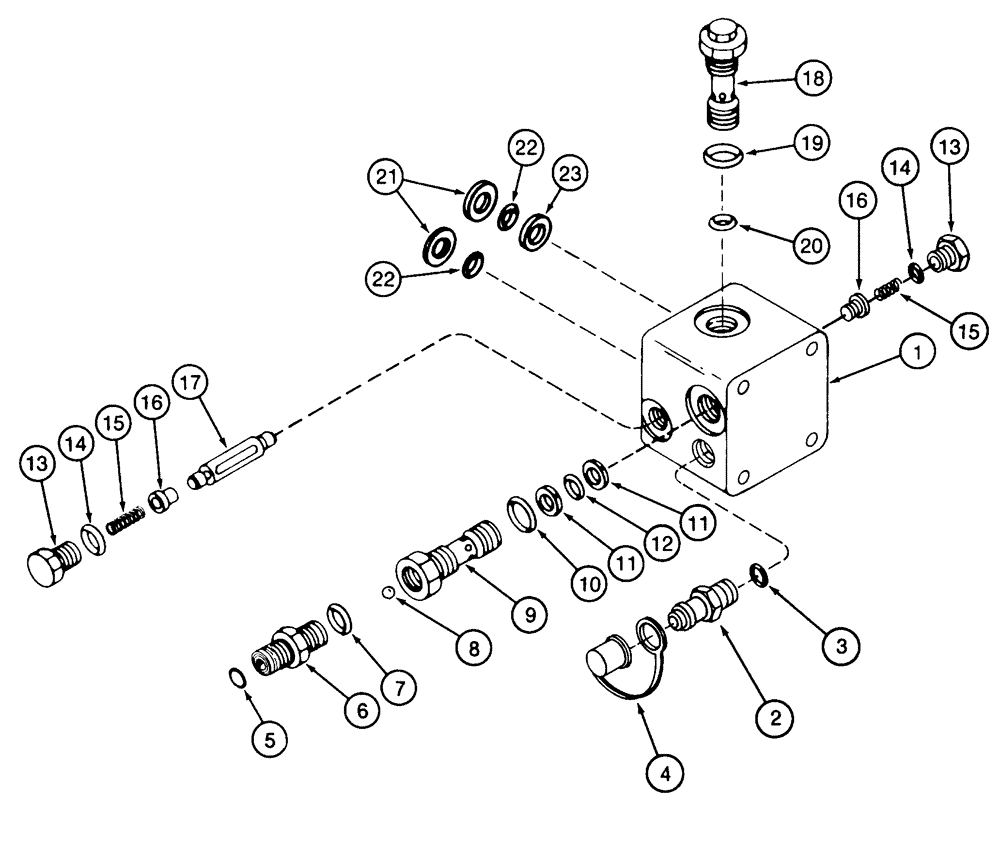

Запчасти Case IH 2155 (6-32) - HYDROSTATIC MOTOR ASSEMBLY, SINGLE SPEED, RELIEF VALVE BLOCK (03) - POWER TRAIN

183296A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, parts list page 6-29, for mounting of block assembly, part number stamped on motor

1шт.

183296A2R

REMAN-HYD MOTOR

2155 CASE IH COTTON EXPRESS COTTON PICKER, MOTOR ASSEMBLY - hydrostatic (2/95-)

1шт.

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

193646A1

VALVE

BLOCK ASSEMBLY - relief valve

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - valve

2шт.

2

R55912

NIPPLE

COUPLER - quick disconnect

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

4

H434163

DUST CAP

CAP - dust

2шт.

193647A1

VALVE PRESSURE RELIE

VALVE ASSEMBLY - feathering relief

1шт.

222167A1

REPAIR KIT

KIT - check valve, feather relief

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

CONNECTOR - special, valve

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

8

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

393885R91

GASKET KIT

KIT - relief valve seal

1шт.

10

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

11

393887R1

BACK-UP RING

RING - backup

2шт.

12

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between sections -117, 90 Duro, .799" ID x .103" Thk

1шт.

145559C91

KIT

- shuttle valve

1шт.

13

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

15

145560C1

SPRING

- shuttle valve, shuttle valve

2шт.

16

NSS

NOT SOLD SEPARAT

VALVE - shuttle

2шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - shuttle valve

1шт.

140761C1

VALVE PRESSURE RELIE

VALVE, PRESSURE RELIEF, Low, Assy

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

19

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

20

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between sections -117, 90 Duro, .799" ID x .103" Thk

1шт.

140747C92

SEAL KIT

KIT - valve block seal, replaces 140747C91 kit

1шт.

21

631458C1

RING

- backup

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.
