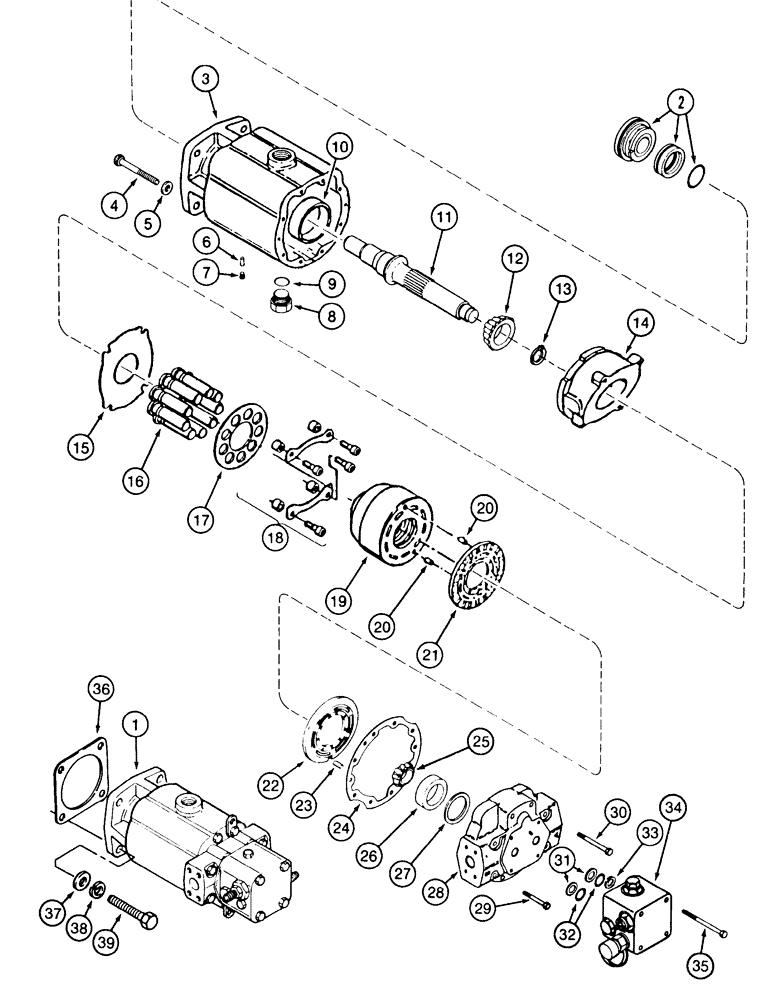

Запчасти Case IH 2155 (6-28) - HYDROSTATIC MOTOR ASSEMBLY, SINGLE SPEED (03) - POWER TRAIN

1

183296A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, parts list pages 6-29 - 6-33, part number stamped on motor

1шт.

1

183296A2R

REMAN-HYD MOTOR

2155 CASE IH COTTON EXPRESS COTTON PICKER, MOTOR ASSEMBLY - hydrostatic (2/95-)

1шт.

1

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

1346205C1

SEAL KIT

SEAL - shaft, three-piece, three-piece, replaces 1346205C1 seal

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

4

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

5

92734C1

SEALING WASHER

- sealing

2шт.

6

37-1516

DOWEL,5/16" x 1"

PIN - dowel, 5/16 x 1 inch, hardened, replaces 20020R1 pin

1шт.

7

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

8

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, output shaft

1шт.

1980137C1

SHAFT

ASSEMBLY - output, drive

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - output

1шт.

12

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

BEARING - tapered roller

1шт.

13

101-11200

SNAP RING,#200, 1.880", Ext

RING, SNAP, #200, 1.880", Ext

1шт.

1980138C1

KIT

- rotating, cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - motor

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - slipper retainer

1шт.

18

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

19

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

20

37-1510

DOWEL,5/16" x 5/8"

Hardened 5/16" x 5/8"

2шт.

21

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

22

1980139C1

PLATE

- valve

1шт.

23

37-1510

DOWEL,5/16" x 5/8"

Hardened 5/16" x 5/8"

1шт.

24

1980140C1

GASKET,0.38mm Thk

- end cover

1шт.

25

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - tapered roller, 1-3/16 inch ID

1шт.

26

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD

1шт.

142398C91

SHIM KIT

KIT - shim, bearing

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

28

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

29

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

30

326-748

BOLT,Hex, 7/16" - 14 x 3", Gr 8

6шт.

140747C92

SEAL KIT

KIT - valve block seal

1шт.

31

631458C1

RING

- backup

2шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

33

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

34

193646A1

VALVE

BLOCK ASSEMBLY - relief valve, parts list page 6-33

1шт.

35

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

4шт.

36

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

37

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

4шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

39

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, self-locking, 1/2 NC x 1-1/2 inch, grade 8

4шт.
