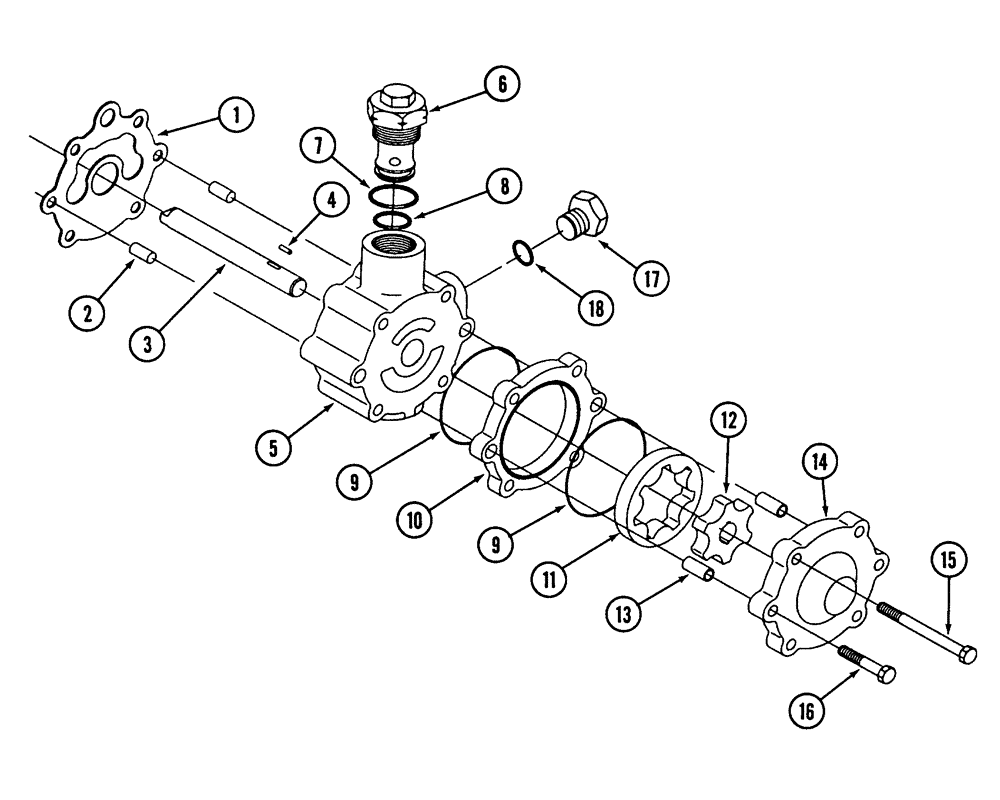

Запчасти Case IH 2155 (6-26) - HYDROSTATIC PUMP ASSEMBLY, CHARGE PUMP (03) - POWER TRAIN

1986824C5

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new, includes parts on parts list pages 6-19 - 6-27, replaces 1986824C4 pump

1шт.

1986824C5R

REMAN-HYDROSTAT PUMP

2155 CASE IH COTTON EXPRESS COTTON PICKER, PUMP ASSEMBLY, hydrostatic, new, CHARGE PUMP (2/95-)

1шт.

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

107593A2

PUMP

ASSEMBLY - charge, replaces 107593A1 pump

1шт.

1

133760C2

GASKET

- charge pump

1шт.

2

37-1510

DOWEL,5/16" x 5/8"

Hardened, Replaces 140754C1 pin 5/16" x 5/8"

2шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - charge pump

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - charge pump

1шт.

1986741C1

VALVE PRESSURE RELIE

VALVE ASSEMBLY - low pressure relief

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between sections -117, 90 Duro, .799" ID x .103" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

10

NSS

NOT SOLD SEPARAT

SPACER - pump

1шт.

11

NSS

NOT SOLD SEPARAT

GEROTOR - inner

1шт.

12

NSS

NOT SOLD SEPARAT

GEROTOR - outer

1шт.

13

NSS

NOT SOLD SEPARAT

DOWEL - hollow

2шт.

14

NSS

NOT SOLD SEPARAT

COVER - charge pump

1шт.

15

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

16

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

2шт.

17

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
