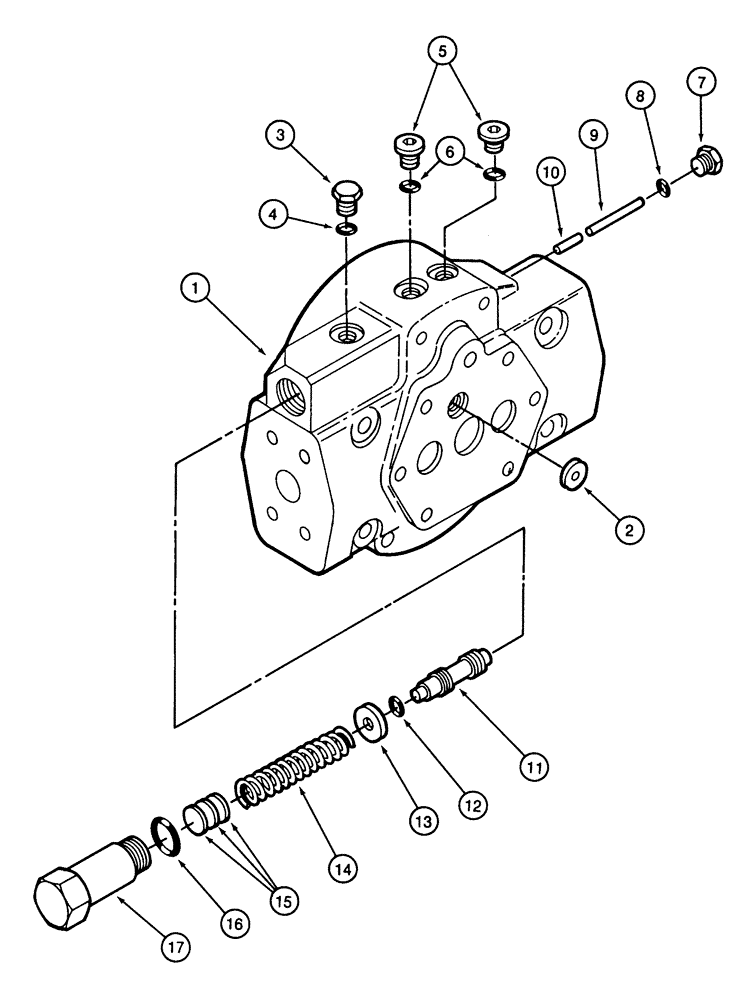

Запчасти Case IH 2155 (6-25A) - INTERNAL PRESSURE OVERRIDE REPAIR (03) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

2

107592A1

WASHER

PLATE - orifice, control

1шт.

3

9672438

PLUG,7/16" - 20 ORB

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

2шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

1986739C1

REPAIR KIT

KIT - spool repair, internal pressure override

1шт.

7

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- hex, 5/16-24 inch O-ring boss

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - needle

1шт.

10

NSS

NOT SOLD SEPARAT

ROLLER - needle

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - override

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - ipor

1шт.

235419A1

SHIM KIT

KIT - valve shim

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.031 inch

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.062 inch

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - 0.100 inch

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

NSS

NOT SOLD SEPARAT

BOX - spring

1шт.
