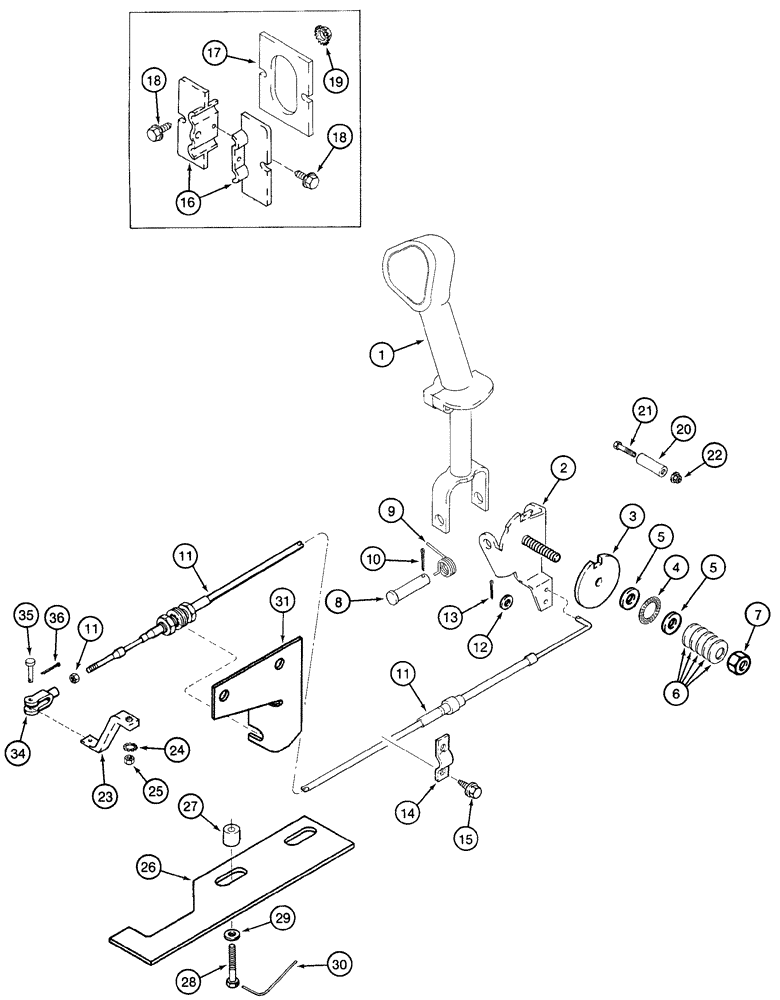

Запчасти Case IH 2155 (6-16) - PROPULSION CONTROLS (03) - POWER TRAIN

1

113314A1

LEVER

- propulsion control, see page 4-29 for electrical connections

1шт.

2

113318A2

SUPPORT

- propulsion control lever

1шт.

3

1994977C1

FRICTION WASHER

- friction, special

1шт.

4

159688R91

THRUST BEARING

BEARING - actuating arm, Serial Range: support-console

1шт.

5

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened

2шт.

6

1994980C1

BELLEVILLE WASHER

- Belleville

5шт.

7

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

PIN - clevis, 1/2 x 3-7/16 inch, hardened

1шт.

9

128593A1

SPRING

- torsion, lever support

1шт.

10

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

11

193428A1

CABLE,5281mm L

- propulsion control

1шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

14

A75815

CLAMP

- retaining, Serial Range: cable-console

1шт.

15

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

- machine, hex washer head, 4 - 0.7 x 10 mm, class 4.8

2шт.

16

119314A1

CLAMP

- bulkhead, propulsion and throttle, Serial Range: cables-cab

2шт.

17

119328A1

GASKET,5mm Thk

- bulkhead clamp

1шт.

18

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

4шт.

19

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

20

179101A1

SPACER

- reverse limiter

1шт.

21

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

22

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

23

116432A1

LEVER

- control, hydrostatic pump

1шт.

24

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

26

185350A1

LARGE PLATE

PLATE - stop, control lever

1шт.

27

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- 1/2 x 3/8 inch

2шт.

28

142581A1

BOLT,Spcl, Cross Drilled Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT - special, cross drilled

2шт.

29

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened

2шт.

30

12736D

ELECTRICAL WIRE

WIRE - enclosed seal

1шт.

31

127936A1

SUPPORT

BRACKET - support, Serial Range: cable-pump

1шт.

32

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

2шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

34

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

CLEVIS, ADJUSTABLE, #10-32 x 1 9/16"

1шт.

35

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

36

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.
