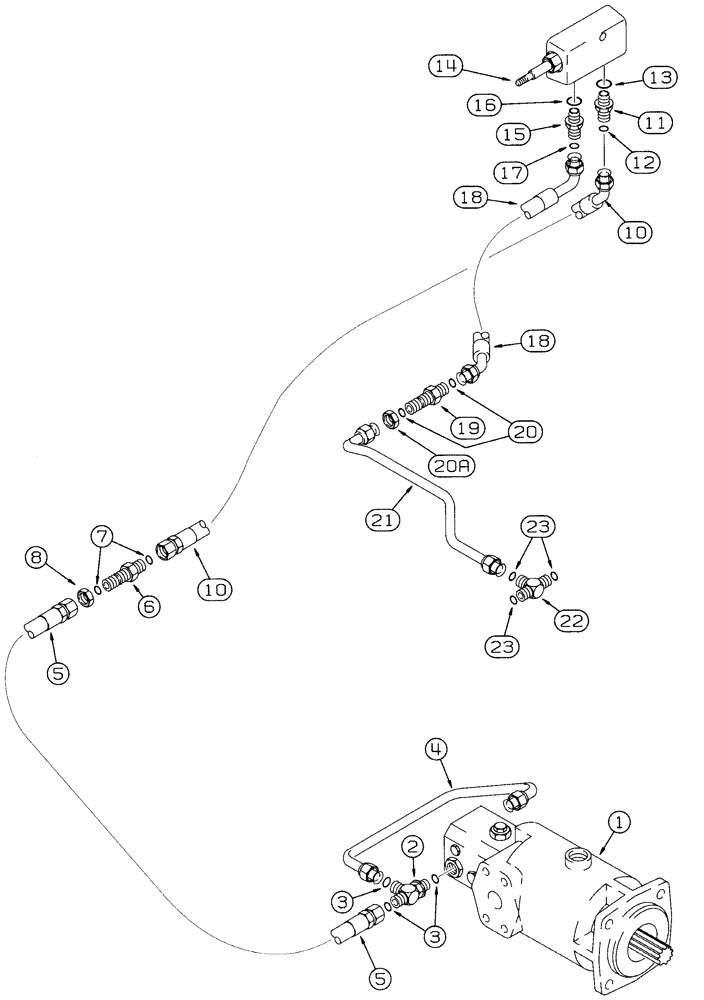

Запчасти Case IH 2155 (6-10) - FOOT-N-INCH VALVE HYDRAULIC SYSTEM (03) - POWER TRAIN

1

183296A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, parts list pages 6-29 - 6-31

1шт.

1

183296A2R

REMAN-HYD MOTOR

2155 CASE IH COTTON EXPRESS COTTON PICKER, MOTOR ASSEMBLY - hydrostatic (2/95-)

1шт.

1

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

- 9/16-18 inch face branch x face x swivel face

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

4

184368A1

HYD TUBE,0.025" OD, 215.8 mm Length

TUBE - connector, at motor relief valve

1шт.

5

187664A1

HOSE

- 60 inch (1525 mm) long, supply, at motor relief valve

1шт.

6

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

ADAPTER - straight, 9/16-18 inch face seal x bulkhead face

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

10

194911A1

HOSE

- 80-3/4 inch (2050 mm) long, supply, at Foot-N-Inch valve

1шт.

11

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss

1шт.

12

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

14

123974A2

VALVE

ASSEMBLY - Foot-N-Inch, 6500 psi, parts list page 6-15

1шт.

15

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

187661A2

HOSE

- 18-1/8 inch (460 mm) long, return from Foot-N-Inch valve

1шт.

19

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 11/16-16 inch face seal x bulkhead face seal

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20a

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

21

184365A1

TUBE,0.375" OD, 315.8, 225 mm Length

- return, Foot-N-Inch valve to tee

1шт.

22

201-415

TEE,1"-14 ORFS

- 1-14 inch face seal branch x face seal x face seal

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

3шт.
