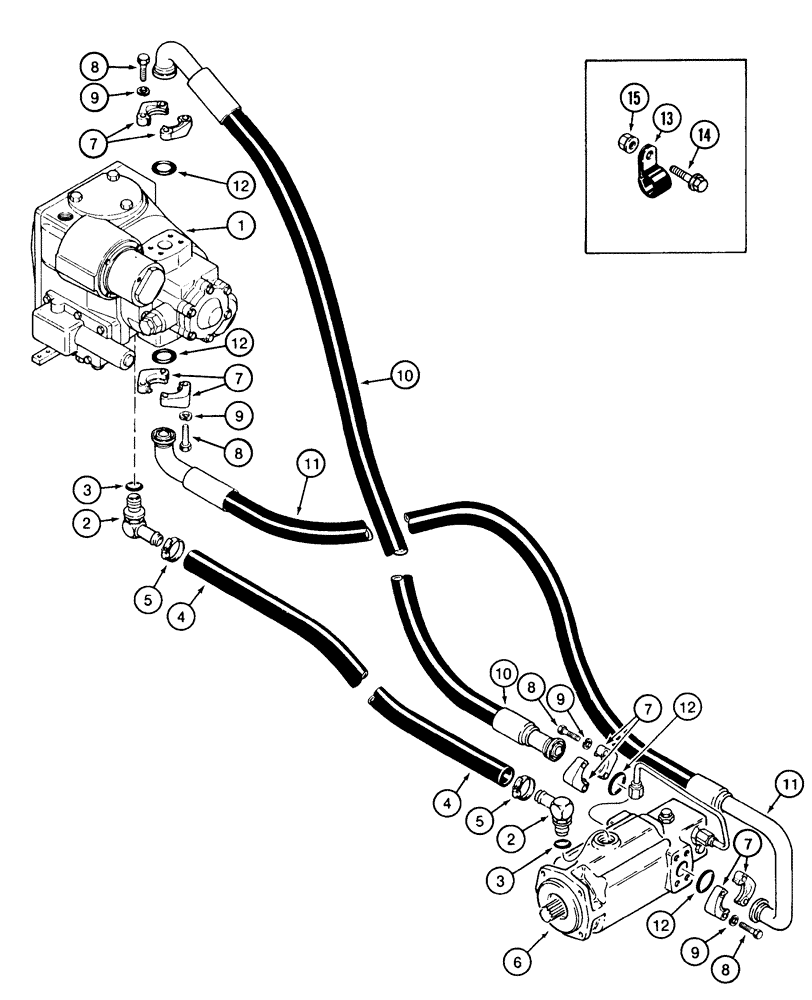

Запчасти Case IH 2155 (6-08) - HYDROSTATIC PUMP AND MOTOR HYDRAULIC SYSTEM (03) - POWER TRAIN

1

1986824C5

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new, replaces 1986824C4 pump, parts list pages 6-19 - 6-27

1шт.

1

1986824C5R

REMAN-HYDROSTAT PUMP

2155 CASE IH COTTON EXPRESS COTTON PICKER, PUMP ASSEMBLY, hydrostatic, new, MOTOR HYDRAULIC SYSTEM (2/95-)

1шт.

1

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

1546404C1

ELBOW

- 90 degree, 1-1/16-12 O-ring x 1 inch stem end, special, motor drain hose

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

4

1984278C1

HOSE,25.40 mm ID x 1725.00 mm, SAE 30R2 Type 1 (or) 3, CLASS 1 (or) 3

RADIATOR HOSE, , Motor Case Drain 25.40 mm ID x 1725.00 mm, SAE 30R2 Type 1 (or) 3, CLASS 1 (or) 3

1шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

6

183296A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, parts list pages 6-29 - 6-31

1шт.

6

183296A2R

REMAN-HYD MOTOR

2155 CASE IH COTTON EXPRESS COTTON PICKER, MOTOR ASSEMBLY - hydrostatic (2/95-)

1шт.

6

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

7

S97224

CLAMP

- split flange, 1 inch

8шт.

8

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

9

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

10

1984276C2

HOSE,25.4mm ID x 1450mm L

- 57-1/16 inch (1450 mm) long, forward hydrostatic pressure

1шт.

11

1984277C2

HOSE,25.4mm ID x 1575mm L

- 62 inch (1575 mm) long, reverse hydrostatic pressure

1шт.

12

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

13

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

3шт.

14

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

1шт.

15

231-5146

FLANGE NUT,3/8"-16

1шт.
