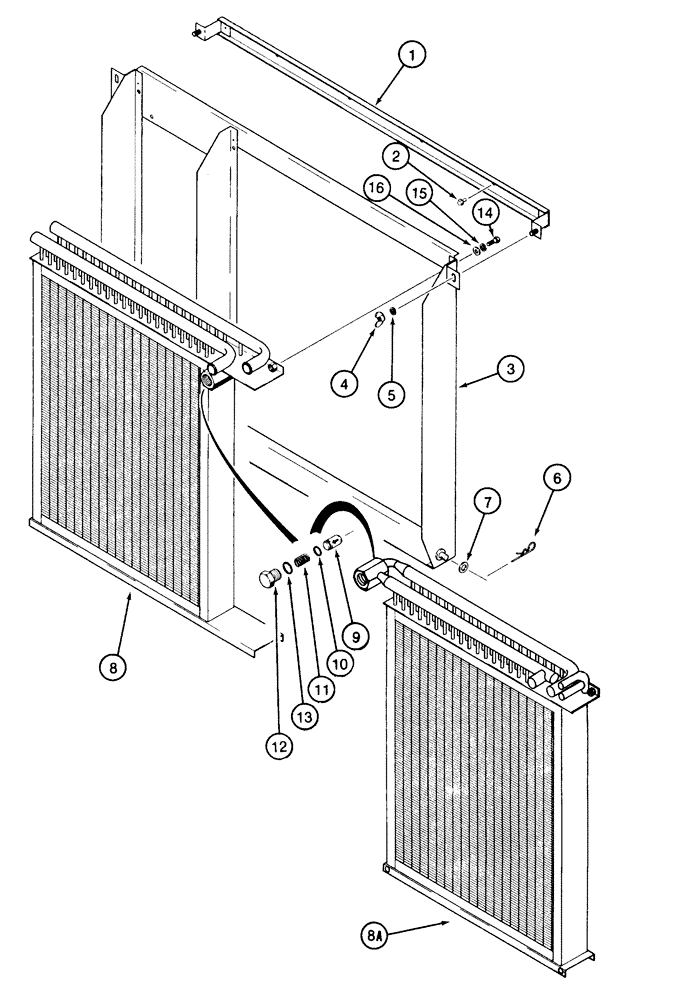

Запчасти Case IH 2155 (6-04) - OIL COOLER AND SUPPORTS (03) - POWER TRAIN

1

1984009C1

SUPPORT

- retainer

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

3

87581C1

SUPPORT

- oil cooler, prior to P.I.N. JJC0156230, replaced by 87581C2 support

1шт.

3a

87581C2

SUPPORT

- hydraulic oil and fuel cooler, P.I.N. JJC0156230 and after, replaces 87581C1 support, not shown

1шт.

4

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

2шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

473443R1

COTTER PIN

- hair, quick attachable

2шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

84683C1

COOLER

ASSEMBLY - hydraulic oil, prior to P.I.N. JJC0156230

1шт.

220589A1

COOLER

ASSEMBLY - hydraulic oil and fuel, P.I.N. JJC0156230 and after

1шт.

8

NSS

NOT SOLD SEPARAT

COOLER - hydraulic oil, use with 84683C1 cooler, prior to P.I.N. JJC0156230

1шт.

8a

NSS

NOT SOLD SEPARAT

COOLER - hydraulic oil and fuel, use with 220589A1 cooler, P.I.N. JJC0156230 and after

1шт.

9

93198C1

VALVE

- cooler bypass

1шт.

10

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

11

A189029

SPRING

- check valve

1шт.

12

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, If used

4шт.
