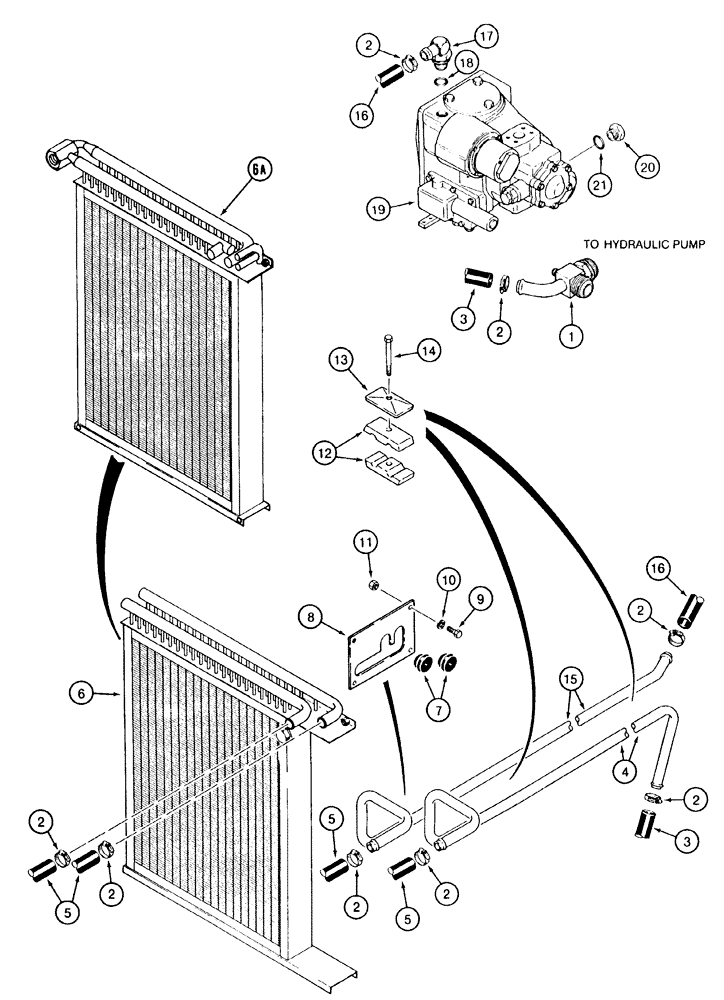

Запчасти Case IH 2155 (6-02) - OIL COOLER HYDRAULIC SYSTEM (03) - POWER TRAIN

1

1971747C1

FITTING

- cross, special, pump inlet, for continuation of circuit, see page 8-5

1шт.

2

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP - adj, 13/16 - 1-1/2 inch dia, hose No. 20, Type F

8шт.

3

1347315C1

HOSE

- 26 inch (660 mm) long, cut from 364361C1 bulk hose, see below

1шт.

4

1990468C1

TUBE

- cooler return

1шт.

5

1329328C1

HYDRAULIC HOSE,25.40 mm ID x 1244.60 mm, SAE 30R2

Cut from 364361C1 Bulk Hose, See Below 25.40 mm ID x 1244.60 mm, SAE 30R2

2шт.

6

84683C1

COOLER

ASSEMBLY - hydraulic oil, prior to P.I.N. JJC0156230, parts list page 6-5

1шт.

6a

220589A1

COOLER

ASSEMBLY - hydraulic oil and fuel, P.I.N. JJC0156230 and after, parts list page 6-5

1шт.

7

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- deck harness, right, 1 inch ID, tube

2шт.

8

1990469C1

LARGE PLATE

PLATE - cover, oil cooler

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

12

1546028C1

CLAMP,25.4mm ID x 82mm L

- double, 1 inch ID, tube, two piece

2шт.

13

1347127C1

PLATE

- clamp

2шт.

14

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

15

1990467C1

TUBE

- cooler supply

1шт.

16

1979763C2

HOSE

- 15-1/2 inch (394 mm) long, cut from 364361C1 bulk hose, see below

1шт.

17

1546404C1

ELBOW

- 90 degree, 1-1/16-12 O-ring x 1 inch stem end, special

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

1986824C5

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new, replaces 1986824C4 pump, parts list pages 6-19 - 6-27

1шт.

19

1986824C5R

REMAN-HYDROSTAT PUMP

2155 CASE IH COTTON EXPRESS COTTON PICKER, PUMP ASSEMBLY, hydrostatic, new, OIL COOLER HYDRAULIC SYSTEM (2/95-)

1шт.

19

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

20

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Hydrostatic pump, if used

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

364361C1

HOSE

- bulk, 1 (25) ID x 600 inch (15240 mm) long, 50 foot (15.24 m) long

1шт.
