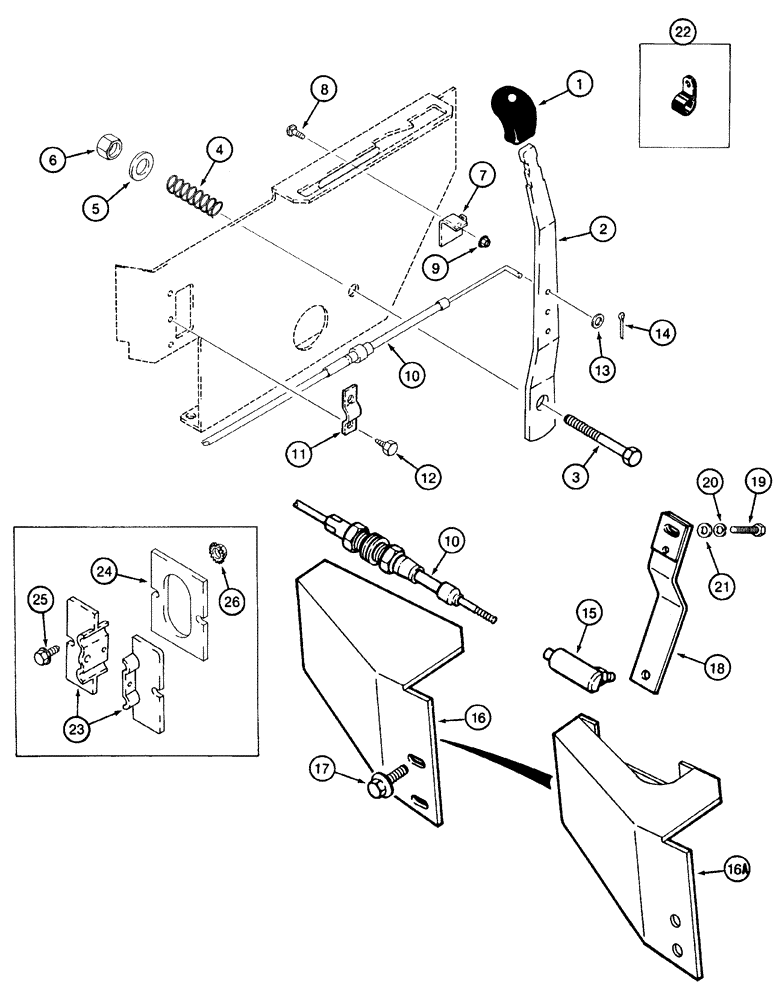

Запчасти Case IH 2155 (3-12) - THROTTLE CONTROL (02) - FUEL SYSTEM

1

134071A1

KNOB

- throttle control lever

1шт.

25

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

4шт.

2

116434A1

LEVER

- throttle control

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

4

PO22

SPRING

- throttle control lever

1шт.

7

116433A2

STOP

ANGLE - throttle stop

1шт.

8

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

193428A1

CABLE,5281mm L

- throttle

1шт.

11

A75815

CLAMP

- retaining

1шт.

12

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

- machine, hex washer head, 4 - 0.7 x 10 mm, class 4.8

2шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

14

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

15

1977009C4

BALL JOINT

JOINT - ball, No. 10, type AL

1шт.

16

1977034C2

SUPPORT

- throttle cable, prior to P.I.N. JJC0156230

1шт.

16a

197085A1

SUPPORT

- throttle cable, P.I.N. JJC0156230 and after

1шт.

17

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

18

1977046C4

LEVER

- pump throttle

1шт.

19

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm

2шт.

20

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

21

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

2шт.

22

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

2шт.

23

119314A1

CLAMP

- bulkhead

2шт.

24

119328A1

GASKET,5mm Thk

- bulkhead clamp

1шт.

26

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
