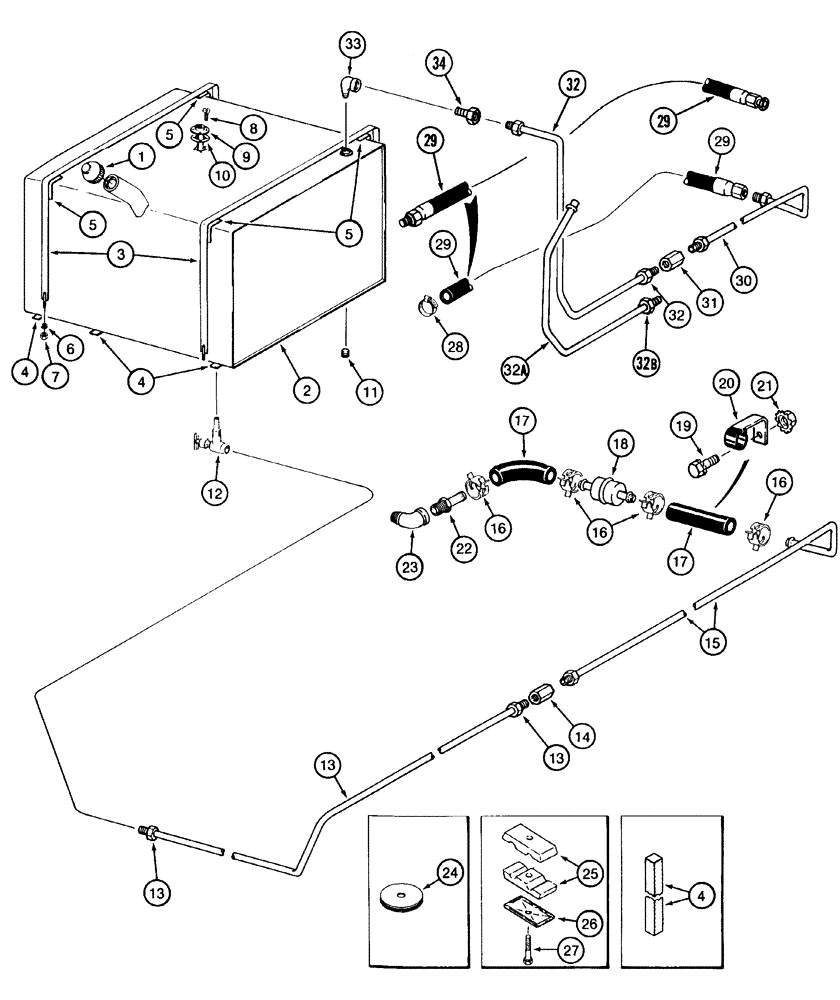

Запчасти Case IH 2155 (3-10) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1982455C4

FUEL TANK

TANK ASSEMBLY - fuel, 120 gallon

1шт.

1

23995DC

FILLER CAP

CAP - vented, fuel tank filler

1шт.

2

NSS

NOT SOLD SEPARAT

TANK - fuel, 120 gallon

1шт.

3

1349811C1

STRAP

- fuel tank

2шт.

4

1545941C1

SEAL

- adhesive-backed, 33 inch (838 mm) long, cut from 73215C1 bulk seal, see below, fuel tank bottom

3шт.

5

666210R1

FIXING STRIP

STRIP - 9 inch (229 mm) long, cut from 990541R1 bulk strip, see below, tank support lining

4шт.

6

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

9

121810C1

ELECTRICAL GAUGE

SENDER - fuel level gauge

1шт.

10

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

11

444699

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PT

1шт.

12

390069R91

SHUT-OFF VALVE

VALVE - fuel shut-off

1шт.

13

1988960C2

TUBE

- supply, fuel tank

1шт.

14

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch inverted flare

1шт.

15

137602A1

FUEL TUBE,0.375 mm OD, 797, 64 mm Length

TUBE - fuel supply

1шт.

16

1348264C1

HOSE CLAMP

CLAMP - hose, 3/8 inch

4шт.

17

140701A1

FUEL HOSE,9.52 mm ID x 150.00 mm, SAE 30R7

9.52 mm ID x 150.00 mm, SAE 30R7

2шт.

18

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

20

370383R1

CLIP

CLAMP - harness, long, tube

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

1шт.

23

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT

1шт.

24

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID

1шт.

25

1546024C1

CLAMP

- double, 3/8 inch ID

3шт.

26

1347127C1

PLATE

- clamp

3шт.

27

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

3шт.

28

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

1шт.

29

1988963C1

HOSE

- 36-13/16 inch (935 mm) long, fuel return, if used

1шт.

29

193624A2

FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2

Fuel Return, if Used 9.53 mm ID x 770.00 mm, SAE 30R2

1шт.

30

1988961C1

FUEL TUBE

TUBE - fuel, return, prior to P.I.N. JJC0156230

1шт.

31

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch inverted flare

1шт.

32

1988962C2

PIPE

TUBE - fuel tank return

1шт.

32a

226521A1

FUEL TUBE

TUBE - fuel return, rear, P.I.N. JJC0156230 and after

1шт.

32b

222-1004

TUBE NUT,5/8" - 18

NUT - inverted flared tube, 3/8 inch NC

1шт.

33

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 90 degree, 3/8 stem end x 1/4 inch PT, replaces 144535R1 elbow

1шт.

34

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch female PT

1шт.

73215C1

GASKET

SEAL - bulk, foam, adhesive-backed, 48 inch (1219 mm) long

1шт.

990541R1

FIXING STRIP

STRIP - bulk, lining, 1-1/4 (32) wide x 600 inch (15240 mm) long

1шт.

364357C1

LARGE HOSE

HOSE - bulk, 3/8 (10) ID x 600 inch (15240 mm) long

1шт.
