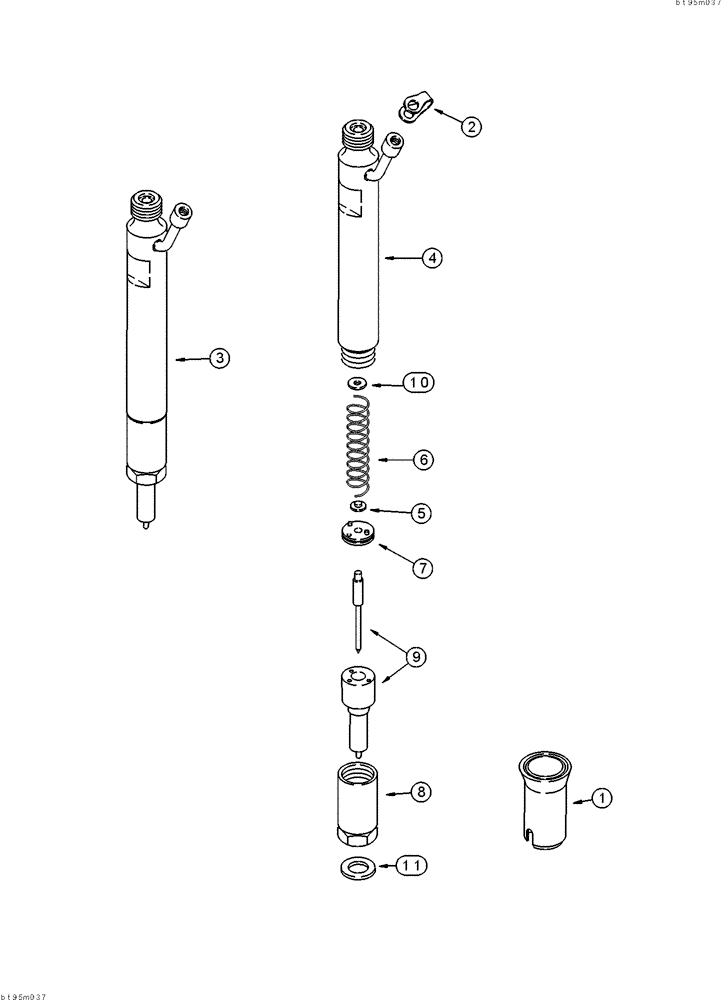

Запчасти Case IH 2155 (3-09A) - FUEL INJECTION NOZZLE, 6TA-830 EMISSIONS CERTIFIED ENGINE, COTTON PICKER S/N JJC0156230 AND AFTER (02) - FUEL SYSTEM

1

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

1шт.

2

J903380

SEAL

SEAL - connector

1шт.

3

J926787

INJECTOR ASSY.

INJECTOR ASSEMBLY - fuel (Bosch)

1шт.

Whenever a nozzle is removed from cylinder head, J923261 seal must be replaced before nozzle is reinstalled in cylinder head.

1шт.

3

JR926787

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

1шт.

3

JC926787

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

5

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

6

J905152

SPRING

SPRING - nozzle pressure

1шт.

7

J905154

PLATE

STOP - nozzle valve

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - cap, nozzle tip

1шт.

9

NSS

NOT SOLD SEPARAT

TIP - injector nozzle

1шт.

10

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.00mm Thk

1шт.

10

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.04mm Thk

1шт.

10

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.08mm Thk

1шт.

10

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.10mm Thk

1шт.

10

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.14mm Thk

1шт.

10

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.18mm Thk

1шт.

10

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.20mm Thk

1шт.

10

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.24mm Thk

1шт.

10

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.28mm Thk

1шт.

10

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.30mm Thk

1шт.

10

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.34mm Thk

1шт.

10

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.38mm Thk

1шт.

10

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.40mm Thk

1шт.

10

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.44mm Thk

1шт.

10

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.48mm Thk

1шт.

10

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.50mm Thk

1шт.

10

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.54mm Thk

1шт.

10

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.58mm Thk

1шт.

10

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.60mm Thk

1шт.

10

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.64mm Thk

1шт.

10

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.68mm Thk

1шт.

10

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.70mm Thk

1шт.

10

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.74mm Thk

1шт.

10

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.78mm Thk

1шт.

10

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.80mm Thk

1шт.

10

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.84mm Thk

1шт.

10

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.88mm Thk

1шт.

10

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.90mm Thk

1шт.

10

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.94mm Thk

1шт.

10

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle, Use one shim of the thickness required 1.98mm Thk

1шт.

11

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

SEAL - injector nozzle, 2.5 mm thick, 7 mm injector tip

6шт.

Whenever a nozzle is removed from cylinder head, J923261 seal must be replaced before nozzle is reinstalled in cylinder head.

1шт.
