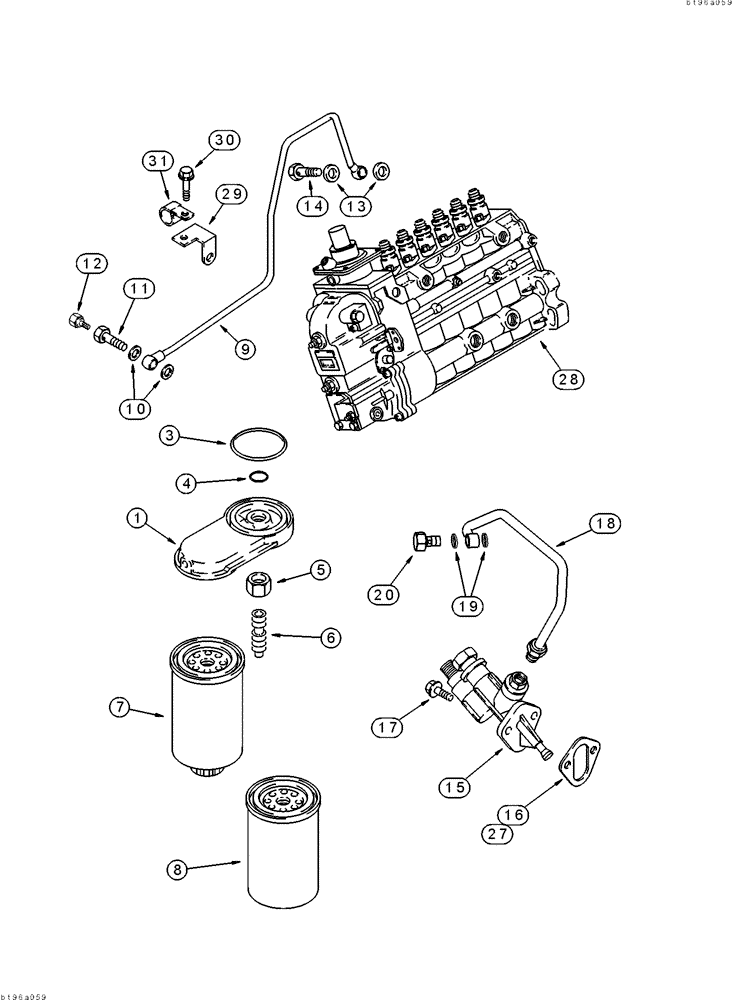

Запчасти Case IH 2155 (3-05A) - FUEL FILTER & TRANSFER PUMP, 6TA-830 EMISSIONS CERT. ENG., COTTON PICKER S/N JJC0156230 AND AFTER (02) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel

1шт.

9

J927306

PIPE

TUBE - supply, fuel

1шт.

10

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

11

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

12

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

SCREW - hex, special, vent

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

14

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT - banjo connector

1шт.

15

J926034

FEED PUMP

PUMP - fuel transfer, see J926764 repair kit below

1шт.

16

J923054

GASKET

- mounting, fuel transfer pump

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

TUBE - supply

1шт.

19

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

20

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

J926764

GASKET KIT

KIT - transfer pump repair, not shown, if used

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

22

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

23

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.

27

J923054

GASKET

- mounting, fuel transfer pump

2шт.

28

J926887

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, with aneroid, component parts not serviced separately

1шт.

29

J921333

BRACE

- tube

1шт.

30

J925883

FLANGE BOLT,Hex, M8 x 16mm, Cl 10.9

BOLT - hex flange, 8 - 1.25 x 16 mm, class 10.9, Serial Range: clamp-brace

1шт.

31

J914711

CLIP

CLAMP - P-type

1шт.
