Запчасти Case IH 2155 (3-04) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE, PRIOR TO COTTON PICKER P.I.N. JJC0156230 (02) - FUEL SYSTEM

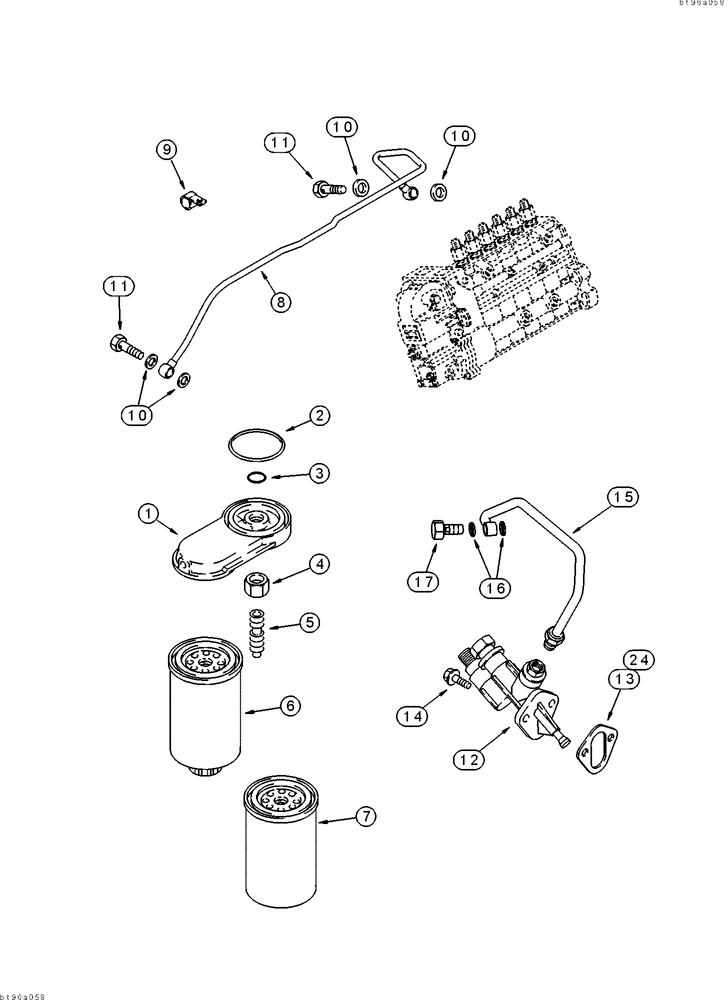

Схема запчастей Case IH 2155 - (3-04) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE, PRIOR TO COTTON PICKER P.I.N. JJC0156230 (02) - FUEL SYSTEM
10
14
13
10
8
6
24
3
17
2
10
11
4
16
12
9
7
15
5
11
1

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, fuel filter head

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, fuel filter stud

1шт.

4

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

6

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

7

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

8

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

TUBE - supply, fuel

1шт.

9

J914711

CLIP

CLAMP - P-type

1шт.

10

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

11

J907541

BANJO BOLT

BOLT - banjo connector

2шт.

12

J926034

FEED PUMP

PUMP - fuel transfer, see item 18 for repair kit

1шт.

13

J923054

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

15

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

TUBE - supply

1шт.

16

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

17

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

18

J926764

GASKET KIT

KIT - transfer pump repair, not shown

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

20

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

23

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

24

J923054

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket

2шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.

Выбрано товаров: 25
