Запчасти Case IH 2155 (3-03A) - FUEL INJECTION SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, COTTON PICKER S/N JJC0156230 AND AFTER (02) - FUEL SYSTEM

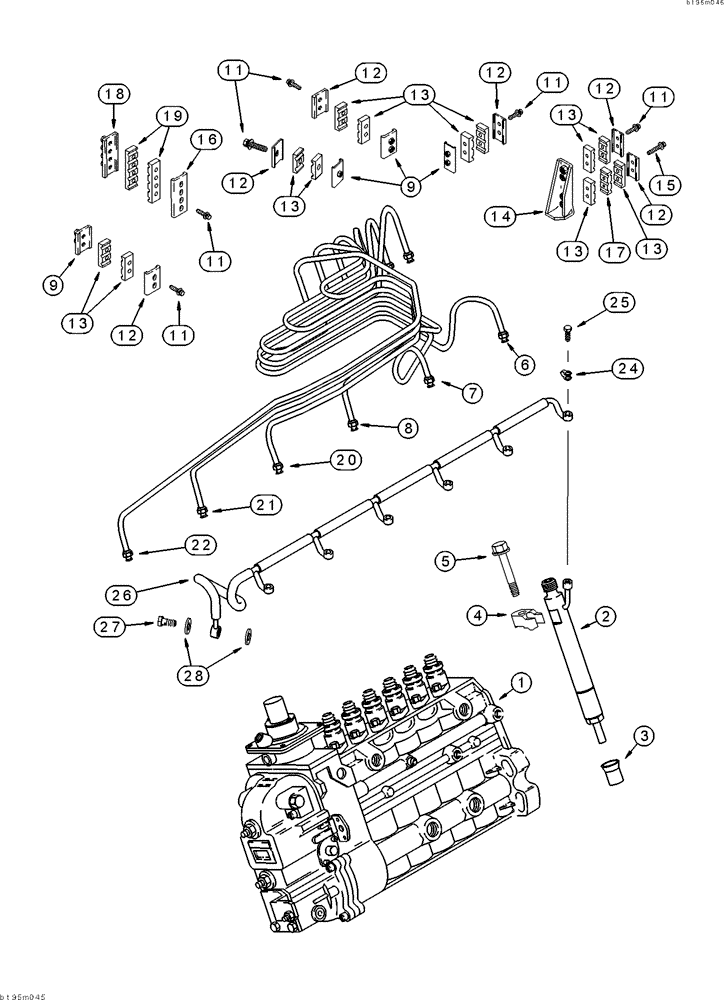

Схема запчастей Case IH 2155 - (3-03A) - FUEL INJECTION SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, COTTON PICKER S/N JJC0156230 AND AFTER (02) - FUEL SYSTEM
28
3
13
18
9
2
27
12
13
15
22
16
4
11
5
13
11
8
13
17
7
11
13
9
12
26
1
12
12
25
13
12
21
6
19
11
14
24
11
20
12

Артикул

Название

Примечание

Количество

1

J926887

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, with aneroid, component parts not serviced separately

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list page 3-9B

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, class 12.9

6шт.

6

J929801

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J929802

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J929803

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

4шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

10шт.

12

J904519

SUPPORT

BRACE - tube retaining

6шт.

13

J917747

CLAMP

- fuel tube

12шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

15

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

16

J910686

BRACE

- tube retaining

1шт.

17

J917748

CLAMP

- fuel tube

1шт.

18

J917740

BRACE

- tube retaining

1шт.

19

J917749

CLAMP

- tube

2шт.

20

J929804

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J929805

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J929806

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

- connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

7шт.

26

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

27

J924726

BANJO BOLT

VALVE - check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing, banjo fitting

2шт.

Выбрано товаров: 26
