(2-50) - ENGINE SUPPORTS

Запчасти Case IH 2155 (2-50) - ENGINE SUPPORTS (01) - ENGINE

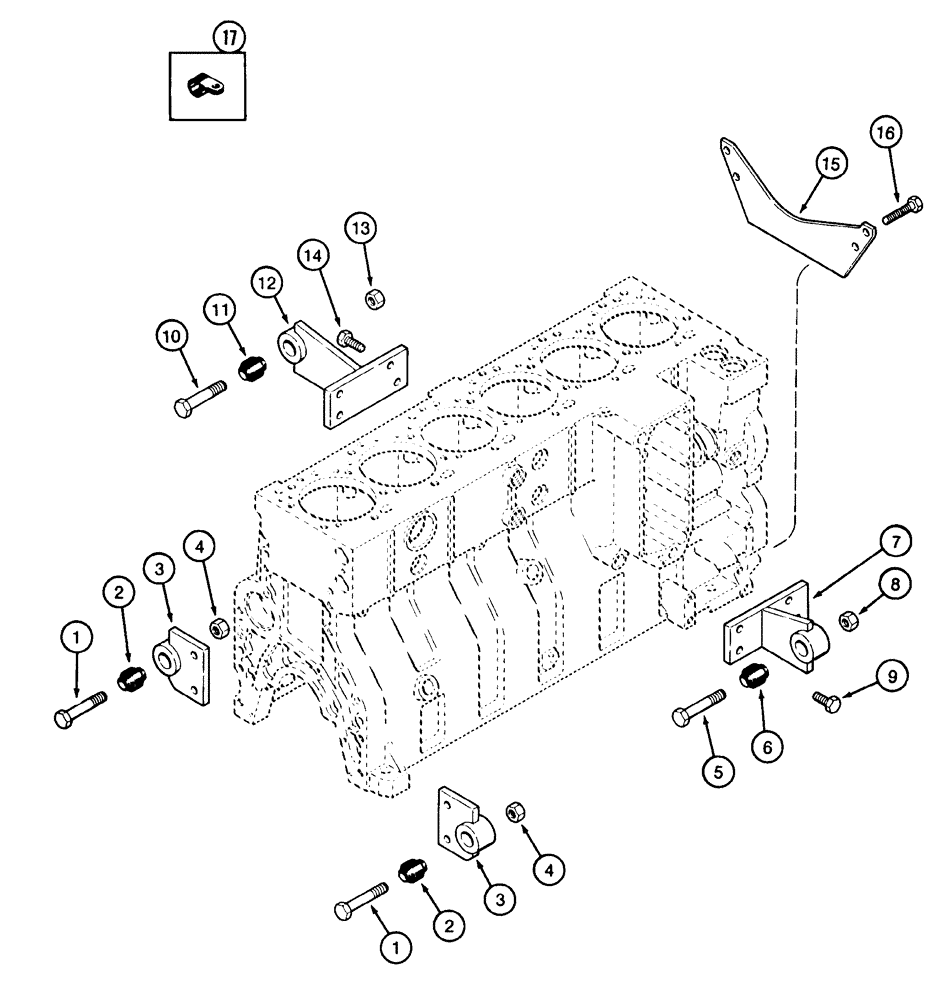

Схема запчастей Case IH 2155 - (2-50) - ENGINE SUPPORTS (01) - ENGINE
9
7
2
15
4
17
3
5
3
10
1
14
16
4
8
11
2
1
12
13
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

2

672870R1

BUSHING

- engine support, rubber

2шт.

3

1260140C3

SUPPORT

- engine, flywheel end, see page 6-7, items 12 - 15, for mounting hardware

2шт.

4

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

2шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

6

672870R1

BUSHING

- engine support, rubber

1шт.

7

1315688C3

SUPPORT

- engine, right-hand front

1шт.

8

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

9

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

4шт.

10

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

11

672870R1

BUSHING

- engine support, rubber

1шт.

12

1315687C3

SUPPORT

- engine, left-hand front

1шт.

13

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

14

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

4шт.

15

1315696C1

SUPPORT

- engine, fan end

1шт.

16

30951R1

BOLT,Hex, M12 x 60mm, Cl 10.9

BOLT - hex, self-locking, 12 - 1.75 x 60 mm

4шт.

17

1345263C1

CLIP

CLAMP - J-type, 3/4 inch ID

2шт.
