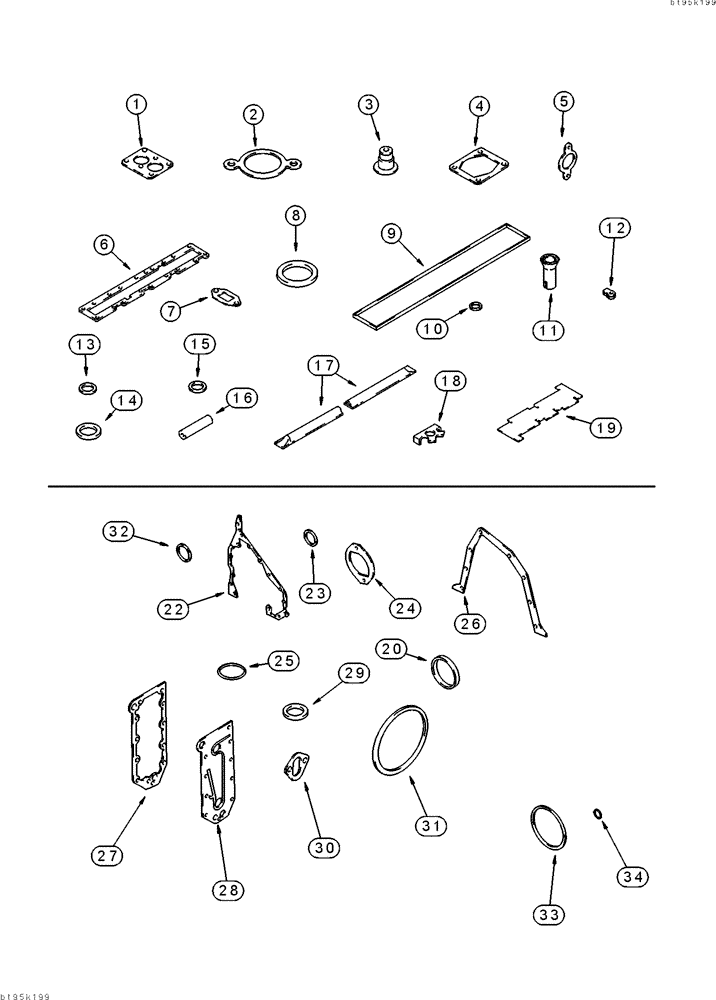

Запчасти Case IH 2155 (2-48) - ENGINE GASKET KITS, 6TA-830 ENGINE, PRIOR TO COTTON PICKER P.I.N. JJ0156230 (01) - ENGINE

A77794

GASKET KIT

KIT - gasket, valve grind

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-28.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, water

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

4

J911941

GASKET

- mounting, turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick, set of 6, replaces J921787 gasket

6шт.

6

J914311

MANIFOLD GASKET

- intake manifold cover

1шт.

7

J914388

GASKET

- turbo oil drain tube

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing, oil fill cap to valve cover

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, replaces J282133 O-ring

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

- connector, fuel injection nozzle

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Connector to valve cover (Replaces J909397) -115, 70 Duro, .674" ID x .103" Thk

1шт.

14

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff valve -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather Tube to Connector 19.05 mm ID x 51.00 mm

1шт.

17

J919677

TUBE

- oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

PLATE - locking, exhaust manifold bolt

12шт.

19

J823921

GAUGE

- cylinder head, bolt length

1шт.

A77839

KIT

- gasket, cylinder block

1шт.

For complete engine overhaul, order 1 valve grind kit, 1 cylinder block kit, 1 oil pan gasket kit, Figure 2-26, front and rear crankshaft seal kit, Figure 2-42 and required cylinder head gasket, Figure 2-28.

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block

1шт.

22

J926757

GASKET

- housing, gear, cylinder block

1шт.

23

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing, cylinder block

1шт.

24

J919601

GASKET

- access cover plate, cylinder block

1шт.

25

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, water pump, cylinder block

1шт.

26

J914301

GASKET

- rear cover retainer, crankshaft, cylinder block

1шт.

27

J918174

GASKET,0.71mm Thk

- cooler core, oil, cylinder block

1шт.

28

J929011

GASKET,1.19mm Thk

- cooler cover, oil, replaces J918332 gasket, cylinder block

1шт.

29

J901798

SEALING WASHER

WASHER - sealing, not used in this application, cylinder block

1шт.

30

J923054

GASKET

- mounting, fuel transfer pump, cylinder block

1шт.

31

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, not used in this application, cylinder

1шт.

32

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used in this application, cylinder block -212, 70 Duro, .859" ID x .139" Thk

1шт.

33

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sealing, sleeve, cylinder block

6шт.

34

J913994

O-RING

- sealing, cylinder block

1шт.
