Запчасти Case IH 2155 (2-46) - PISTON AND SLEEVE, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230 (01) - ENGINE

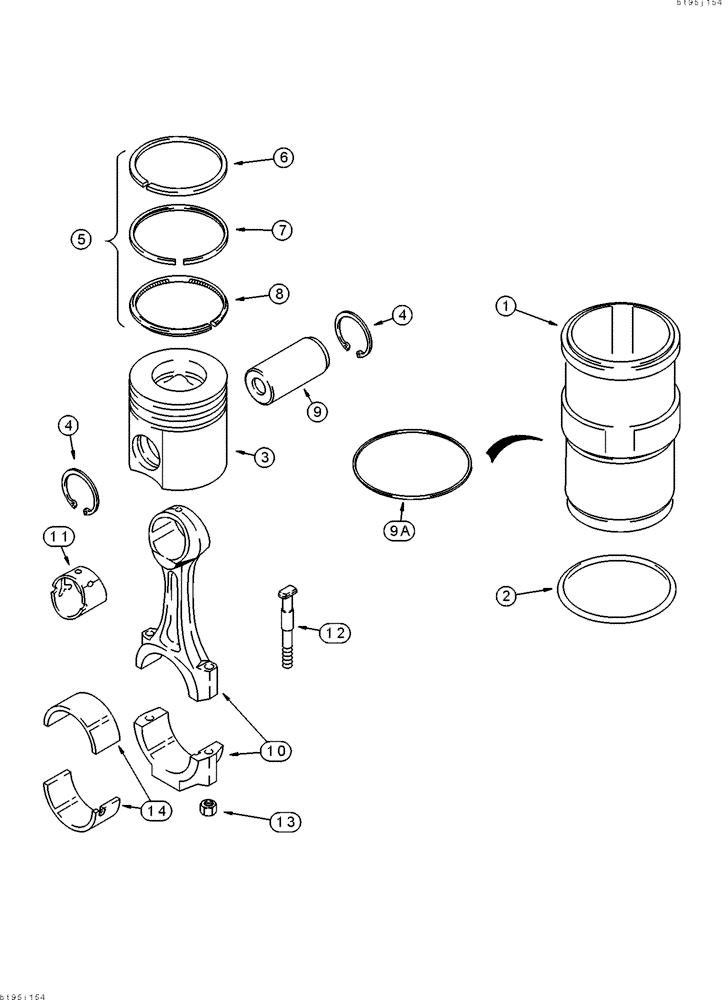

Схема запчастей Case IH 2155 - (2-46) - PISTON AND SLEEVE, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230 (01) - ENGINE
7
4
11
4
5
9a
14
13
2
10
12
3
1
6
8
9

Артикул

Название

Примечание

Количество

A77799

PACKAGE, REPAIR

KIT - piston and sleeve, engine, Inc. 1- 8

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - piston

1шт.

A77773

PISTON ASSY.

KIT - piston, engine, standard

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9930

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, 1.75", Int, #175

2шт.

5

A77802

PISTON RING SET

KIT - piston ring

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

7

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

9

J901597

PIN

- piston

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010") 0.254mm Thk

1шт.

Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J914654

SHIM,.015" Thk

Cylinder sleeve (0.381 mm) .015" Thk

1шт.

Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm) .020" Thk

1шт.

Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

6шт.

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting

6шт.

84487529R

REMAN-CONNECTING ROD

2155 PISTON AND SLEEVE, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230 (2/95-), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting, two piece

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

12

J928870

ROD

- special, rod, bearing cap, replaces J924351 bolt, connecting

2шт.

13

J901381

SPECIAL NUT

- hex, rod bolt, connecting

2шт.

14

A77563

BEARING SET

KIT - bearing, upper and lower, standard, connecting rod

6шт.

14

A77564

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize, connecting rod

6шт.

14

A77565

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize, connecting rod

6шт.

14

A77566

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize, connecting rod

6шт.

14

A77567

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize, connecting rod

6шт.

Выбрано товаров: 35
