(2-30) - THERMOSTAT HOUSING AND WATER FILTER, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230

Запчасти Case IH 2155 (2-30) - THERMOSTAT HOUSING AND WATER FILTER, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230 (01) - ENGINE

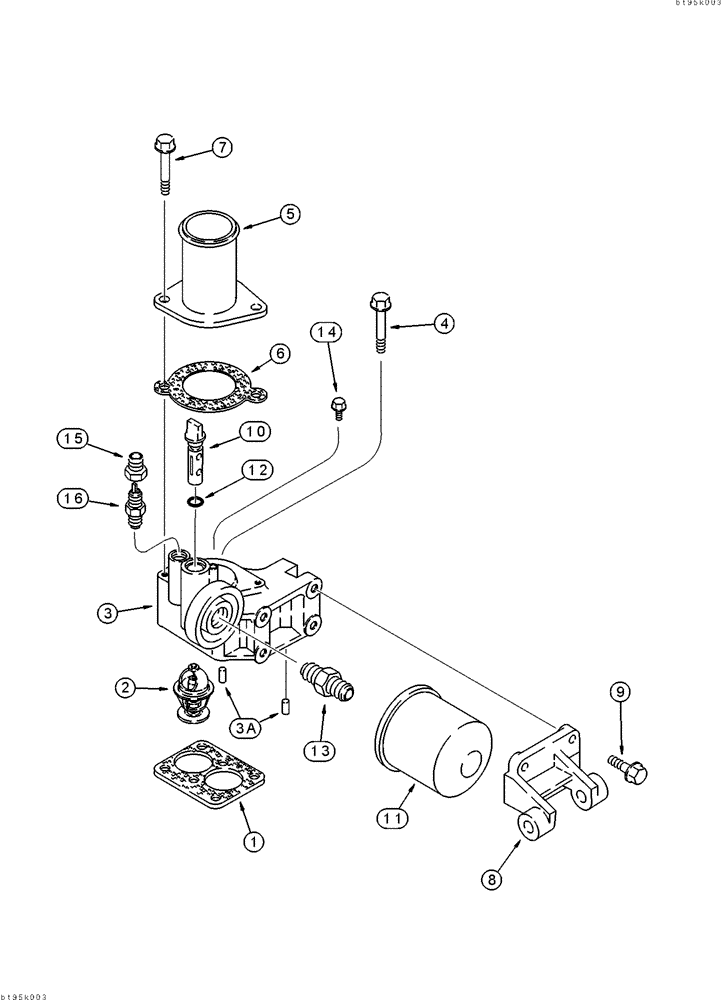

Схема запчастей Case IH 2155 - (2-30) - THERMOSTAT HOUSING AND WATER FILTER, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230 (01) - ENGINE
2
5
11
8
3
15
13
4
10
12
16
1
9
6
14
7
3a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J928639

THERMOSTAT

- engine coolant, replaces J907242 thermostat

2шт.

J926509

HOUSING,Thermostat

- thermostat

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - thermostat

1шт.

3a

180811A1

ROLL PIN

PIN - roll, special

2шт.

4

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm, thermostat housing to cylinder head

2шт.

5

J912800

CONNECTION

TUBE - water outlet

1шт.

6

J918779

GASKET,1.19mm Thk

- outlet tube, water

1шт.

7

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 95 mm, outlet tube to thermostat housing

2шт.

8

J918544

SUPPORT

- mounting, alternator

1шт.

9

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Alternator support to cylinder head

4шт.

10

J912837

COCK

VALVE - shutoff

1шт.

11

A77544

FILTER

- water conditioning, precharge

1шт.

12

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

13

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

- water filter

1шт.

14

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

15

J911925

COUPLING

- hose

1шт.

16

J911901

VALVE, CHECK

VALVE - check

1шт.
