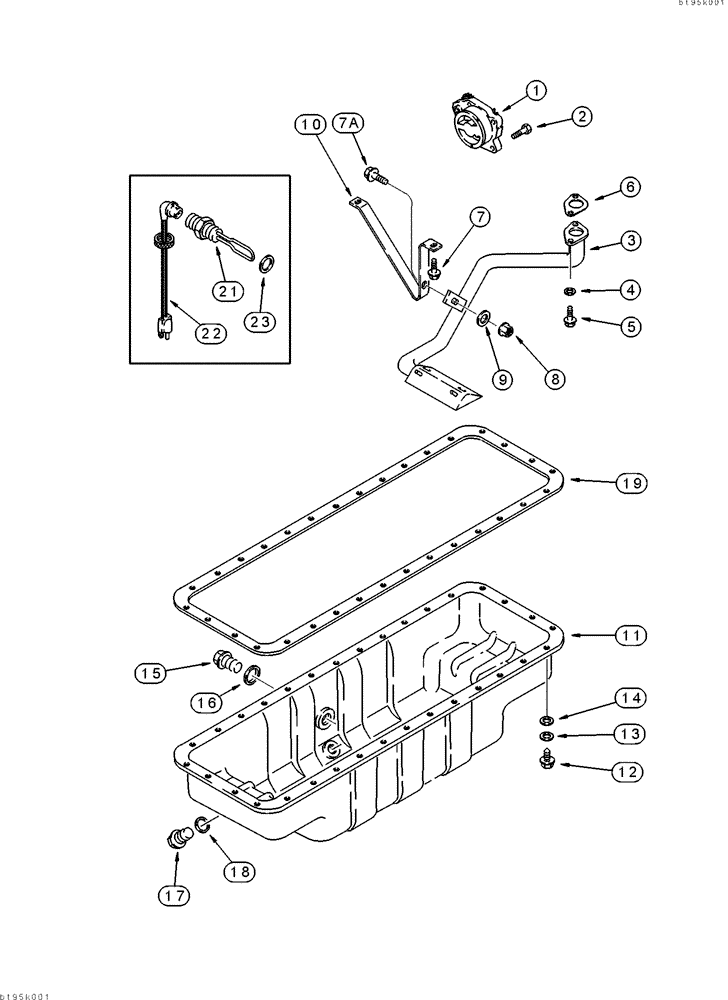

Запчасти Case IH 2155 (2-27A) - OIL PUMP, PAN AND HEATER, 6TA-830 EMISSIONS CERTIFIED ENGINE, COTTON PICKER S/N JJC0156230 AND AFTER (01) - ENGINE

JR926201

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured, North America only, 24 teeth drive gear

1шт.

JC926201

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J926201

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 teeth drive gear

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J921719

TUBE

- with screen, oil suction

1шт.

4

J908738

SPACER

- mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 30 mm

2шт.

6

J914302

GASKET

- mounting, oil suction tube

1шт.

Part of oil pan, gasket KIT, P/N A77679

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

7a

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

1шт.

8

J906216

FLANGE NUT

- hex flange, special, 6 mm - 1.0

1шт.

9

J910960

WASHER

- flat, special

1шт.

10

J927611

BRACKET

BRACE - suction tube

1шт.

11

J914015

ENGINE OIL PAN

PAN - oil, engine

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW, Hex, Flg Hd, M8 x 21, Spcl

32шт.

13

J910266

LOCK WASHER

- spring, Belleville

32шт.

14

J908316

WASHER

- flat, special, 9 x 16 x 1 mm

32шт.

15

J924148

PLUG,M22 x 1.5

- hex magnetic, special, M22

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

Part of oil pan, gasket KIT, P/N A77679

1шт.

17

J924147

PLUG,M18 x 1.5

- hex magnetic, special, M18

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of oil pan, gasket KIT, P/N A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77679 gasket kit shown below

1шт.

Part of oil pan, gasket KIT, P/N A77679

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes: Refs. 6, 16, 18 and 19.

1шт.

A77580

SERVICE KIT

KIT - oil pan heater, engine oil, see note

1шт.

When engine oil heater kit is ordered, Ref. 23, J902425 washer must be ordered also.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, oil pan, kit

1шт.

22

J905113

CABLE

- engine block heater, 6 feet long, oil pan, kit

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, see note, oil pan, heater kit

1шт.

When engine oil heater kit is ordered, Ref. 23, J902425 washer must be ordered also.

1шт.
