(2155) - CASE IH COTTON EXPRESS COTTON PICKER (2/95-12/96)
/
(01) - ENGINE
/

(2-22) - TURBOCHARGER ASSEMBLY, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230

Запчасти Case IH 2155 (2-22) - TURBOCHARGER ASSEMBLY, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230 (01) - ENGINE

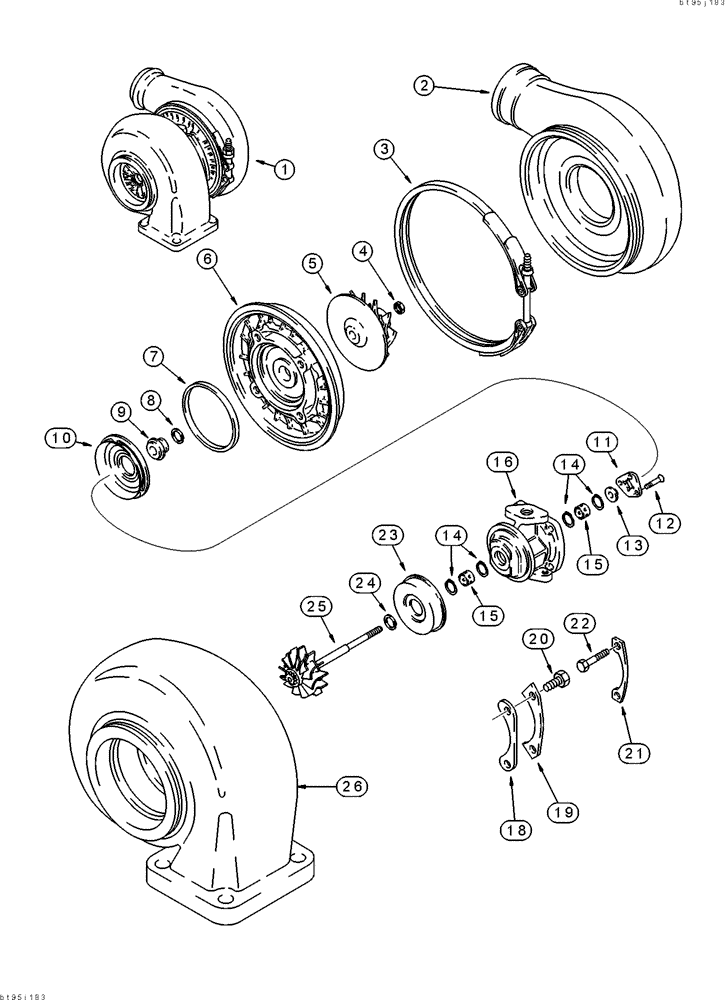

Схема запчастей Case IH 2155 - (2-22) - TURBOCHARGER ASSEMBLY, 6TA-830 ENGINE, PRIOR TO COTTON PICKER S/N JJC0156230 (01) - ENGINE
21
11
1
14
2
19
4
9
6
25
24
10
23
15
3
5
13
26
7
15
22
16
14
12
20
18
8

№

Артикул

Название

Примечание

Количество

1

J532065

TURBOCHARGER

ASSEMBLY - engine, new, replaces J531665 turbocharger assembly

1шт.

1

JR802416

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC802416

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - split ring, oil slinger

1шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - flat head slotted

3шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaining

4шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - shaft, impeller

2шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - hex, retainer

4шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

22

NSS

NOT SOLD SEPARAT

BOLT - hex, lock

4шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, not shown

8шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - sealing, not shown

1шт.

Part of Overhaul, Turbocharger KIT, P/N J545652

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Refs. 4, 7, 8, 11, 12, 14, 15, 19, 20, 22, 24, 27 and 28. Replaces J904772 kit

1шт.
