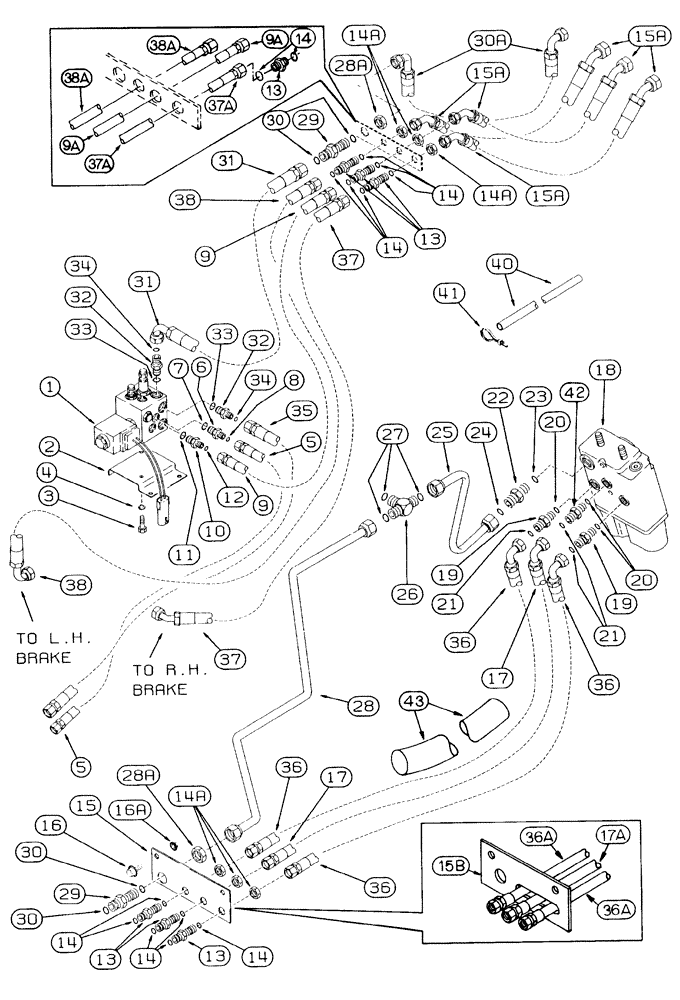

Запчасти Case IH 2155 (7-04) - MASTER BRAKE HYDRAULIC SYSTEM (5.1) - BRAKES

1

138367A2

VALVE

VALVE ASSEMBLY - regulator and parking brake, parts list page 7-13, replaces 138367A1 valve

1шт.

2

133529A1

SUPPORT

BRACKET - valve mounting

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 16 mm

2шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

5

187672A2

HOSE

HOSE - 79-15/16 inch (2030 mm) long, supply, pump to regulator valve

1шт.

6

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring boss

3шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

O-RING, -012, 90 Duro, .364" ID x .070" Thk

1шт.

9

187668A1

HOSE

HOSE - 58-1/16 inch (1475 mm) long, no longer available order 221130A1 hose, item 9A

1шт.

9a

221130A1

HOSE

HOSE - 58-1/16 inch (1475 mm) long, Serial Range: regulator-bulkhead

1шт.

10

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-Ring, 8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

O-RING, -012, 90 Duro, .364" ID x .070" Thk

1шт.

13

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 11/16-16 inch face seal x bulkhead face seal, if used

6шт.

13

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

CONNECTOR, HYD, , If used 13/16"-16, Blkhd, ORFS

6шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

O-RING, , If used -012, 90 Duro, .364" ID x .070" Thk

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING, , If used -014, 90 Duro, .489" ID x .070" Thk

6шт.

14a

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

6шт.

15

186924A1

LARGE PLATE

PLATE, LARGE PLATE - bulkhead adapter mounting, at cab

1шт.

15a

187667A2

HOSE

HOSE - 19-5/16 inch (490 mm) long, supply and right-hand and left-hand brake, at tower bulkhead

3шт.

15b

221959A1

PLATE

PLATE - bulkhead brake valve

1шт.

16

905-10025

BOLT,Hex Flg, M10 x 25mm

BOLT hex serrated flange, 10 - 1.5 x 25 mm

2шт.

16a

825-51410

FLANGE NUT,M10, Flg Ser

NUT - hex serrated flange, 10 mm - 1.5

2шт.

17

187659A1

HOSE

HOSE - 54-1/8 inch (1375 mm) long

1шт.

17a

221128A1

HOSE

HOSE - 54-1/8 inch (1375 mm) long, supply brake, under cab, replaces 187659A1

1шт.

18

137449A1

VALVE

VALVE ASSEMBLY - master brake control, part list page 7-9

1шт.

19

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

HYD CONNECTOR, , Adapter - straight 11/16"-16 ORFS x 9/16"-18 ORB

3шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

O-RING, -012, 90 Duro, .364" ID x .070" Thk

1шт.

22

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

ADAPTER - straight, 1-14 face seal x 1-1/16-12 inch O-ring boss

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

O-RING, , Center -016, 90 Duro, .614" ID x .070" Thk

1шт.

25

184333A1

TUBE

TUBE - return, at brake valve

1шт.

26

201-415

TEE,1"-14 ORFS

TEE - 1-14 inch face seal branch x face seal x face seal

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

O-RING, , Center -016, 90 Duro, .614" ID x .070" Thk

3шт.

28

184334A1

TUBE

TUBE - brake return, tee to cab bulkhead

1шт.

28a

201-919

BHD LOCK NUT,1" - 14

NUT, Blkhd, 1"-14

1шт.

29

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

ADAPTER - straight, 1-14 inch face seal x bulkhead face seal

1шт.

30

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

O-RING, , Center -016, 90 Duro, .614" ID x .070" Thk

2шт.

30a

187669A2

HOSE

HOSE - 27-3/16 inch (690 mm) long, brake return, at tower bulkhead

1шт.

31

187670A1

HOSE

HOSE - 60 inch (1525 mm) long, brake return, Serial Range: bulkhead-valve

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, Spool

1шт.

32

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 1-14 face seal x 3/4-16 inch O-ring boss

2шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, Spool

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-Ring, 8-1, 90 Duro, .644" ID x .087" Thk

1шт.

34

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

O-RING, , Center -016, 90 Duro, .614" ID x .070" Thk

1шт.

35

187671A1

HOSE

HOSE - 78-3/16 inch (1985 mm) long, brake return, regulator, Serial Range: valve-reservoir

1шт.

36

187658A1

HOSE

HOSE - 54-1/8 inch (1375 mm) long, if used

1шт.

36a

221127A1

HOSE

HOSE - 54-1/8 inch (1375 mm) long, right-hand and left-hand brake, tower under cab, if used

2шт.

37

187666A1

HOSE

HOSE - 53-3/16 inch (1350 mm) long, if used

1шт.

37a

221129A1

HOSE

HOSE - 53-3/16 inch (1350 mm) long, right-hand brake tower, if used

1шт.

38

187665A1

HOSE

HOSE - 78-3/4 inch (2000 mm) long, if used

1шт.

38a

221131A1

HOSE

HOSE - 78-3/4 inch (2000 mm) long, left-hand brake tower, if used

1шт.

39

1997983C1

BRAKE ASSY.

BRAKE ASSEMBLY - master, parts list page 7-7, not shown

2шт.

39

1997983C1R

REMAN-BRAKE ASSY.

Reman for New PN 1997983C1

2шт.

39

1997983C1C

CORE-BRAKE ASSY.

Return Number

2шт.

40

222029A1

SLEEVE,72.6mm ID x 965mm L

SLEEVE - 38 inch (965 mm) long, condura hose replaces 191134A1 sleeve

1шт.

41

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, 4 inch maximum bundle, sleeve retaining

1шт.

42

197070A1

VALVE, CHECK

VALVE - inline check

1шт.

43

1989500C1

SLEEVE

SLEEVE - hose, condura

1шт.
