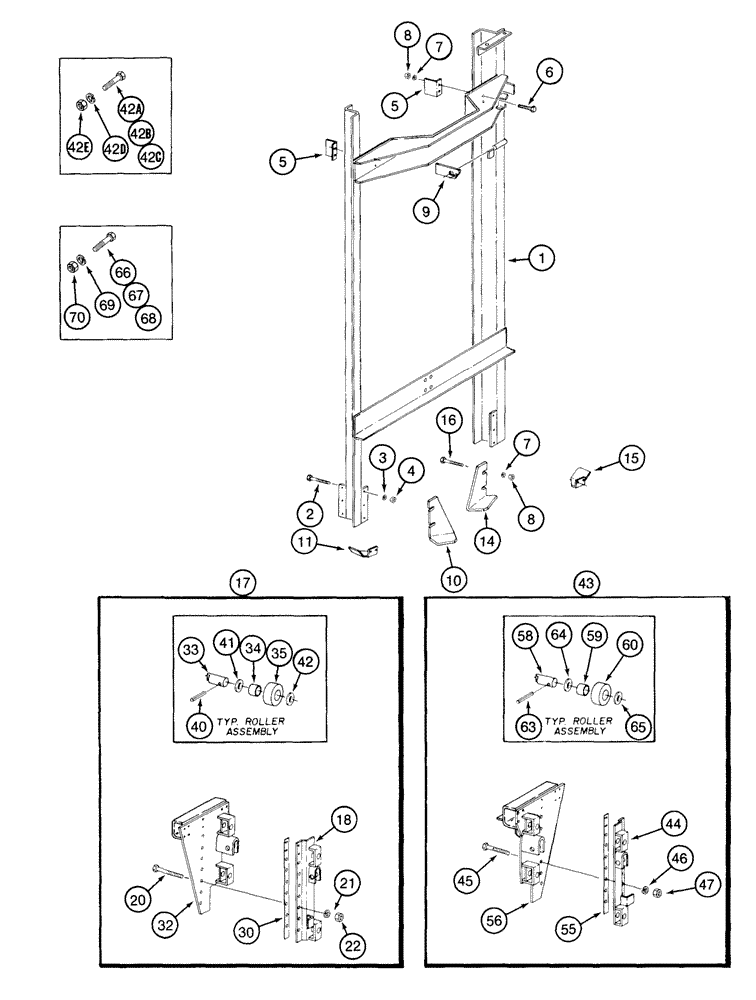

Запчасти Case IH 2155 (9D-38) - BASKET LIFT, FRONT AND REAR (16) - BASKET

1

1349869C1

FRAME

- mast, basket, front and rear

2шт.

2

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

18шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

18шт.

4

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

18шт.

5

1278638C1

SUPPORT

BRACKET - upper stop

4шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

7

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

8

425-106

NUT,3/8"-16, Cl 5

12шт.

9

REF

INSTRUCTION

BAR - basket lock, see pages 9D-43 and 9D-45 for correct assembly

2шт.

10

1345223C1

DEFLECTOR

- front corner, left-hand

1шт.

11

1288804C1

DEFLECTOR

- rear, corner left-hand

1шт.

14

1288805C1

DEFLECTOR

- rear corner, right-hand

1шт.

15

1345224C1

DEFLECTOR

- front corner, right-hand

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

17

1984291C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - with rollers, left-hand

2шт.

18

1288890C1

SUPPORT

BRACKET - roller carriage

1шт.

20

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

7шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

22

429-1010

NUT,5/8"-11, G8

7шт.

30

1266357C1

SHIM

- 1/32 inch thick, basket carriage

1шт.

30

1266358C1

SHIM

- 1/16 inch thick, basket carriage

1шт.

32

1982655C2

SUPPORT

- basket

1шт.

33

1260150C2

SHAFT

- roller

6шт.

34

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

- fiber glide

6шт.

35

1260135C1

ROLL

ER - basket lift, nch

6шт.

40

38-31232

PIN,4.75mm OD x 50.8mm L

6шт.

41

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

1шт.

42

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

6шт.

42a

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

12шт.

42b

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

- hex, 3/8 NC x 5 inch, grade 8

8шт.

42c

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

16шт.

42d

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

36шт.

42e

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

36шт.

43

1984292C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - with rollers, right-hand

2шт.

44

1288891C1

SUPPORT

BRACKET - roller

1шт.

45

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

7шт.

46

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

47

329-1010

NUT,5/8"-11, G8

7шт.

55

1266357C1

SHIM

- 1/32 inch thick, basket carriage

1шт.

55

1266358C1

SHIM

- 1/16 inch thick, basket carriage

1шт.

56

1982656C2

SUPPORT

- basket

1шт.

58

1260150C2

SHAFT

- roller

6шт.

59

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

- fiber glide

6шт.

60

1260135C1

ROLL

ER - basket lift, support

6шт.

63

38-31232

PIN,4.75mm OD x 50.8mm L

6шт.

64

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

12шт.

65

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

6шт.

66

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

12шт.

67

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

- hex, 3/8 NC x 5 inch, grade 8

8шт.

68

426-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

- hex, 3/8 NC x 4-1/2 inch, grade 8

16шт.

69

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

36шт.

70

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

36шт.
