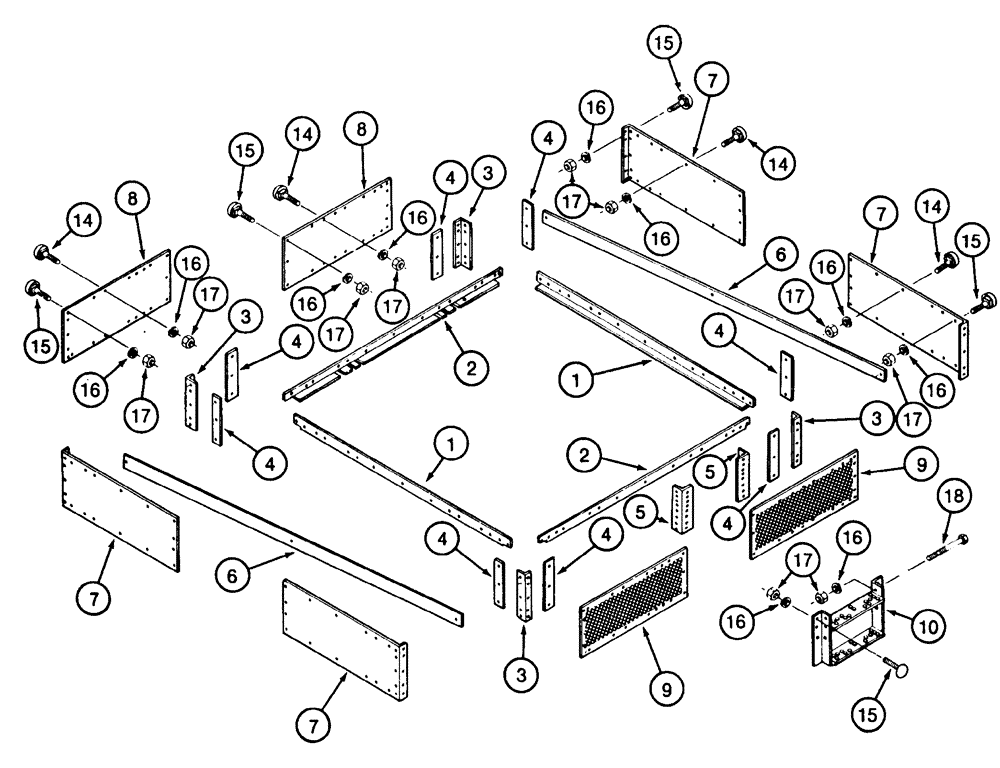

Запчасти Case IH 2155 (9D-34) - BASKET EXTENSIONS, SHORT (16) - BASKET

1

1260247C1

SUPPORT

ANGLE - basket extension

2шт.

2

1349861C2

SUPPORT

BRACKET - extension end, replaces 1349861C1 bracket

2шт.

3

1278592C1

SUPPORT

BRACKET - extension corner support

4шт.

4

1288850C1

LARGE PLATE

PLATE - spacer, basket extension

8шт.

5

1278603C1

ANGLE

BRACKET - upper cover

4шт.

6

1979669C2

FIXING STRIP

STRAP - basket extension

2шт.

7

1278590C1

EXTENSION

- panel side

4шт.

8

1278591C2

COVER

- basket extension end, rear

2шт.

9

87261C1

COVER

- basket extension end, front

2шт.

10

1278731C1

STEP

- basket

1шт.

14

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

38шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

46шт.

16

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

88шт.

17

425-106

NUT,3/8"-16, Cl 5

88шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, If used

4шт.
