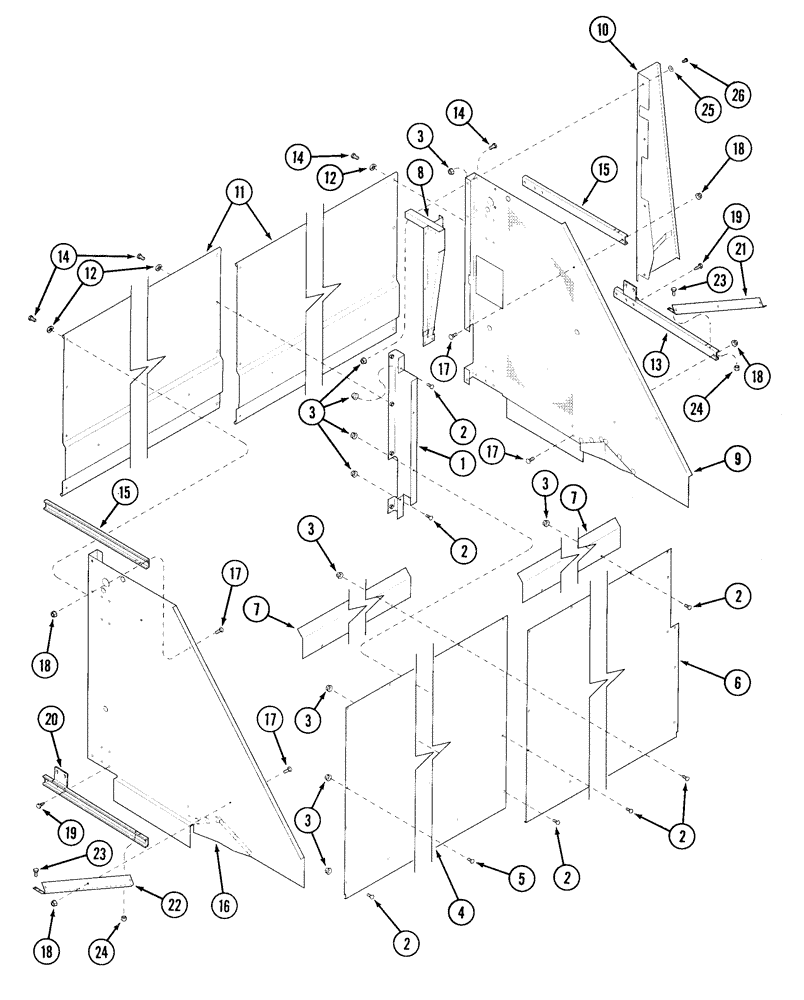

Запчасти Case IH 2155 (9D-26) - BASKET DOOR, COVERS AND SHIELDS, 4 ROW WIDE AND 5 ROW NARROW, PRIOR TO P.I.N. JJC0156230 (16) - BASKET

1

1278692C1

SUPPORT

BRACKET - panel spacer

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

29шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

33шт.

4

1270125C1

COVER

- upper, rear

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

6

1270124C1

COVER

- upper, front

1шт.

7

1262686C1

SHIELD

- chain

2шт.

8

1270153C1

COVER

- chain

1шт.

9

1982428C3

GUARD

SHIELD - basket, front

1шт.

10

1994945C3

GUARD

SHIELD - basket, left-hand front

1шт.

11

140002A1

COVER ASSY

PANEL - basket door

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

13

1984207C1

SUPPORT

BRACE - shield, front

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

15

1984205C1

ANGLE

CHANNEL - door end sheet

2шт.

16

1982430C2

GUARD

SHIELD - rear side

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- serrated slotted truss head, 3/8 NC x 3/4 inch

14шт.

18

231-5146

FLANGE NUT,3/8"-16

14шт.

19

276-14916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW - self-tapping, hex head, 3/8 NC x 1 inch

4шт.

20

1984208C1

SUPPORT

BRACE - rear shield

1шт.

21

1988652C1

ANGLE

- shield support, front

1шт.

22

1988683C1

ANGLE

- shield support, rear

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

25

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.
