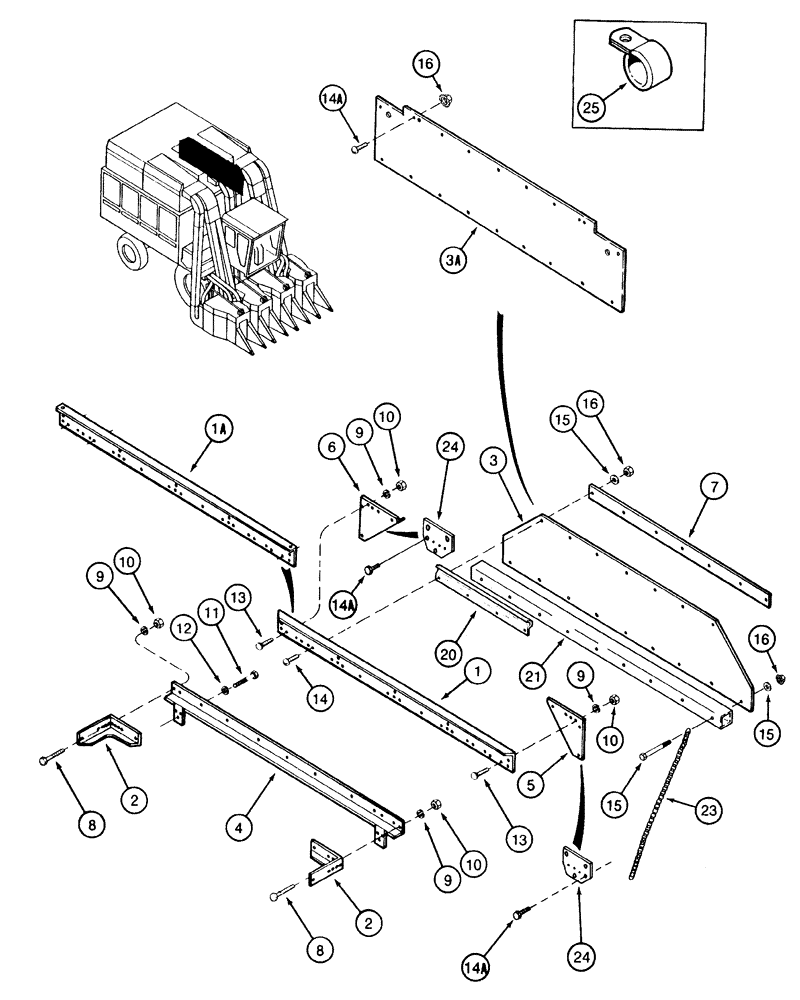

Запчасти Case IH 2155 (9D-18) - LEFT-HAND BASKET SIDE, EXCLUDING DOOR ASSEMBLY (16) - BASKET

REF

INSTRUCTION

BASKET ASSEMBLY - cotton, complete

1шт.

See page 9D-02 for complete assembly. See pages 9D-04 through 9D-32 for additional components of basket assembly. The basket assembly does not include hydraulic components, basket door or basket unloading parts.

1шт.

1

1260248C1

SUPPORT

ANGLE - basket, side upper, prior to P.I.N. JJC0156230

1шт.

1a

197907A1

ANGLE BAR

ANGLE - basket, upper side, P.I.N. JJC0156230 and after

1шт.

2

1278117C2

ANGLE

BRACE - corner, replaces 1278117C1 brace

4шт.

3

1288754C5

MUDFLAP

FLAP - door, 4 Row Wide, 5 Row Narrow

1шт.

3a

140128A3

MUDFLAP

FLAP - door, 5 Row Wide, replaces 140128A1 flap, P.I.N. JJC0156230 and after

1шт.

14a

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch, 5 Row Wide, replaces 163860C1 bolt

2шт.

4

1288785C3

SUPPORT

BRACKET - upper

1шт.

5

1288786C1

LARGE PLATE

PLATE - corner, front, prior to P.I.N. JJC0156230

1шт.

6

1288787C1

LARGE PLATE

PLATE - rear, prior to P.I.N. JJC0156230

1шт.

7

1288894C2

BAR

- door, prior to P.I.N. JJC0156230

1шт.

7

228996A1

BAR

- flap retainer, left-hand door, P.I.N. JJC0156230 and after

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

15

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

20

1990166C1

COVER

- basket lamp harness, if used

2шт.

21

1288757C3

TUBE,3331.7 mm Length

- upper swing

1шт.

22

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

23

87235C1

CHAIN

- 33 links, cut from ZAN4030136 bulk chain, see below

1шт.

24

140126A1

LARGE PLATE

PLATE - lid tie, 5 Row Wide, P.I.N. JJC0156230 and after

2шт.

25

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

5шт.

ZAN4030126

CHAIN bulk, cut to required length used for Ref. 23

1шт.
