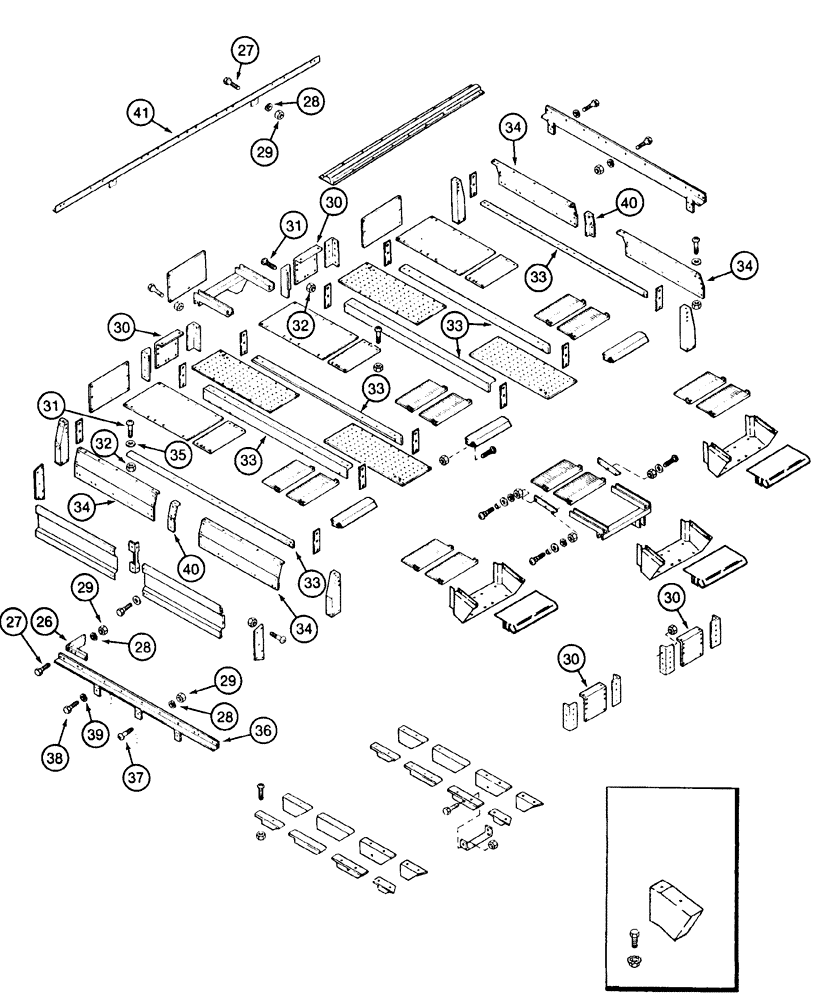

Запчасти Case IH 2155 (9D-06) - BASKET TOP (16) - BASKET

26

1278117C2

ANGLE

BRACE - corner, replaces 1278117C1 brace

4шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

28

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

1260281C2

SUPPORT

- plate

4шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- serrated slotted truss head, 3/8 NC x 3/4 inch, slotted

1шт.

32

231-5146

FLANGE NUT,3/8"-16

1шт.

33

1260291C5

SUPPORT

ANGLE - support

6шт.

34

1260280C2

COVER

- side

4шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

36

1288774C3

SUPPORT

BRACKET - side, right-hand

1шт.

37

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

40

1260292C1

SUPPORT

- basket

2шт.

41

1994963C1

SUPPORT

BRACKET - support, left-hand, front and rear

2шт.
