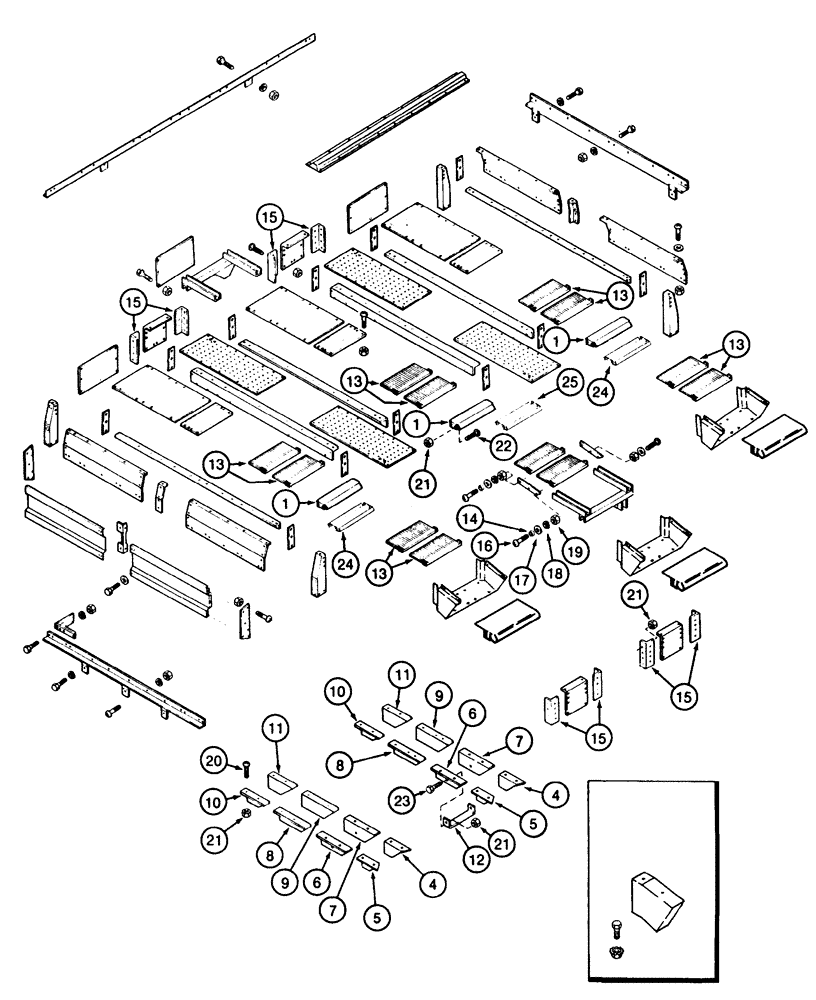

Запчасти Case IH 2155 (9D-04) - BASKET TOP (16) - BASKET

1

87497C1

COVER

- grate

3шт.

4

87050C1

SUPPORT

BRACKET - front, left-hand

2шт.

5

87051C1

SUPPORT

BRACKET - front, right-hand

2шт.

6

87053C1

ANGLE

BRACKET - middle, right-hand

2шт.

7

87052C1

SUPPORT

BRACKET - middle, left-hand

2шт.

8

87055C2

SUPPORT

BRACKET - middle rear, right-hand

2шт.

9

87054C2

SUPPORT

BRACKET - middle rear, left-hand

2шт.

10

87057C1

SUPPORT

BRACKET - rear, right-hand

2шт.

11

87056C1

SUPPORT

BRACKET - rear, left-hand

2шт.

12

87573C1

SUPPORT

BRACKET - brace

2шт.

13

221224C1

DEFLECTOR

- basket

10шт.

14

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch, tube, 5/8 x 1-3/16 inch

2шт.

15

223004C1

ANGLE

BRACKET - support, 12 used without basket extensions; 8 used with basket extension

1шт.

16

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

17

495-81143

WASHER,13/32" x 1 1/2" x .120"

2шт.

18

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- serrated slotted truss head, 3/8 NC x 3/4 inch, slotted

1шт.

21

231-5146

FLANGE NUT,3/8"-16

1шт.

22

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

12шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

24

1984063C1

LARGE PLATE

CHANNEL - filler, outer

2шт.

25

1984062C1

LARGE PLATE

CHANNEL - filler, inner

1шт.

26

1278117C2

ANGLE

BRACE - corner, replaces 1278117C1 brace

4шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

28

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

1260281C2

SUPPORT

- plate

4шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- serrated slotted truss head, 3/8 NC x 3/4 inch, slotted

1шт.

33

1260291C5

SUPPORT

ANGLE - support

6шт.

32

231-5146

FLANGE NUT,3/8"-16

1шт.

34

1260280C2

COVER

- side

4шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

36

1288774C3

SUPPORT

BRACKET - side, right-hand

1шт.

37

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

40

1260292C1

SUPPORT

- basket

2шт.

41

1994963C1

SUPPORT

BRACKET - support, left-hand, front and rear

2шт.
