Запчасти Case IH 2155 (9C-42) - BASKET COMPACTOR (15) - HANDLING SYSTEM

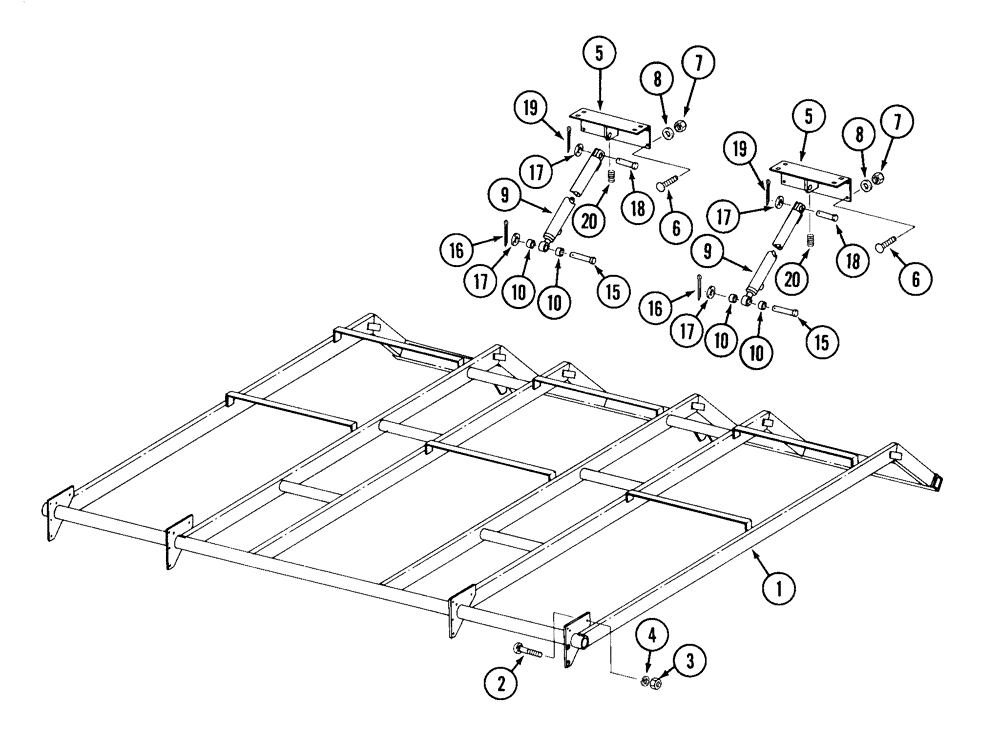

Схема запчастей Case IH 2155 - (9C-42) - BASKET COMPACTOR (15) - HANDLING SYSTEM
20
17
16
10
17
17
18
8
6
18
10
10
6
8
5
16
2
19
7
17
19
3
10
9
15
9
15
20
1
5
7
4

Артикул

Название

Примечание

Количество

1

1270364C4

FRAME

- compactor

1шт.

2

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

20шт.

3

425-106

NUT,3/8"-16, Cl 5

20шт.

4

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

5

1270373C6

SUPPORT

BRACKET - cylinder mounting

2шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

16шт.

7

231-1416

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

16шт.

8

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

16шт.

9

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

CYLINDER ASSEMBLY - 1-1/2 (38) ID x 19-3/4 inch (501 mm) stroke, compactor, parts list page 8-59

2шт.

10

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

- 7/8 x 5/8 inch, tube

4шт.

15

1338702C2

CLEVIS PIN,15.87mm OD x 94.5mm L

PIN - clevis, 5/8 x 3-1/2 inch

2шт.

16

432-1216

COTTER PIN,3/16" x 1"

2шт.

17

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

18

1338701C2

CLEVIS PIN,15.87mm OD x 63mm L

PIN - 5/8 x 2-1/4 inch, cylinder mounting

2шт.

19

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

20

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket headless, 1/4 NC x 3/8 inch, cup point

2шт.

Выбрано товаров: 16
