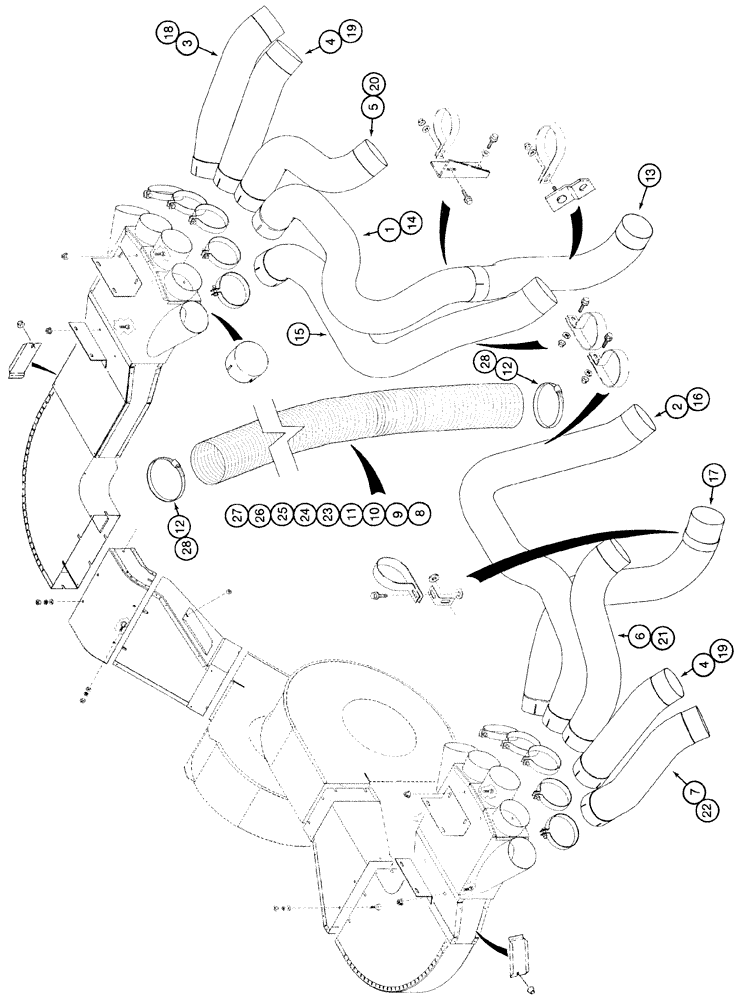

Запчасти Case IH 2155 (9C-36) - AIR DUCTS AND HOSES, 4 ROW WIDE AND 5 ROW NARROW (15) - HANDLING SYSTEM

1

1988742C1

TUBE

DUCT - drum, No. 2 upper front

1шт.

2

1988747C1

TUBE

DUCT - drum, No. 3 rear

1шт.

3

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

DUCT - drum, No. 1 rear

1шт.

4

1988872C1

TUBE

DUCT - drum, No. 1 front, No. 4 rear

2шт.

5

1988873C1

TUBE

DUCT - drum, No. 2 rear

1шт.

6

1988874C1

TUBE

DUCT - drum, No. 3 front

1шт.

7

1988876C1

TUBE,127.9 mm ID, 124.6 mm OD

DUCT - drum, No. 4 front

1шт.

8

1984190C1

AIR HOSE

HOSE - air, 5 (127) dia x 65 inch (1651 mm) long, cut from 1349877CX bulk hose, see below, drum No. 1, front

1шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

9

1984191C1

AIR HOSE

HOSE - air, 5 (127) dia x 58 inch (1473 mm) long, cut from 1349877CX bulk hose, see below, drums No. 1, No. 2, and No. 4, rear; No. 3 and No. 4, front

5шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

10

1984192C1

AIR HOSE

HOSE - air, 5 (127) dia x 41 inch (1041 mm) long, cut from 1349877CX bulk hose, see below, drum No. 3, rear

1шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

11

112424A2

AIR HOSE,127.00 mm ID x 1371.60 mm

Cut from 1349877CX bulk hose, See below, Drum No. 2, Front 127.00 mm ID x 1371.60 mm

1шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

12

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP, HOSE, , Adj. 4.75/5.625 HD Worm

16шт.

13

1988744C2

TUBE,124.6 mm OD

DUCT - air supply, drum, No. 2 lower front, 5 row narrow

1шт.

14

1988742C1

TUBE

DUCT - drum, No. 2 upper front, 5 row narrow

1шт.

15

1988746C1

PIPE

DUCT - drum, No. 3 rear, 5 row narrow

1шт.

16

1988747C1

TUBE

DUCT - drum, No. 3 front, 5 row narrow

1шт.

17

1988749C1

PIPE

DUCT - drum, No. 4 rear, 5 row narrow

1шт.

18

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

DUCT - drum, No. 1 rear, 5 row narrow

1шт.

19

1988872C1

TUBE

DUCT - drum, No. 1 front, No. 5 rear, row narrow

2шт.

20

1988873C1

TUBE

DUCT - drum, No. 2 rear, 5 row narrow

1шт.

21

1988874C1

TUBE

DUCT - drum, No. 4 front, 5 row narrow

1шт.

22

1988876C1

TUBE,127.9 mm ID, 124.6 mm OD

DUCT - drum, No. 5 front, row narrow

1шт.

23

1266304C1

HOSE

- air, 5 (127) dia x 27 inch (686 mm) long, cut from 1349877CX bulk hose, see below, drum No. 2, front (Replaces 1266304C3),5 row narrow

1шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

24

1338078C3

AIR HOSE,127.00 mm ID x 889.00 mm

Cut from 1349877CX Bulk Hose, See below, Drum No. 4, Rear, Row Narrow 127.00 mm ID x 889.00 mm

1шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

25

1984190C1

AIR HOSE

HOSE - air, 5 (127) dia x 65 inch (1651 mm) long, cut from 1349877CX bulk hose, see below, drum No. 1, front, row narrow

1шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

26

1984191C1

AIR HOSE

HOSE - air, 5 (127) dia x 58 inch (1473 mm) long, cut from 1349877CX bulk hose, see below, drum No. 1, No. 2, and No. 5, rear; No. 4 and No. 5, front

5шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

27

1984192C1

AIR HOSE

HOSE - air, 5 (127) dia x 41 inch (1041 mm) long, cut from 1349877CX bulk hose, see below, drum No. 3, front and rear, row narrow

2шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.

28

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

CLAMP, HOSE, , Adj., 5 Row Narrow 4.75/5.625 HD Worm

20шт.

1349877CX

LARGE HOSE

HOSE - bulk, 5 (27) dia x 300 inch (7620 mm) longrow narrow

1шт.

See page 9C-35 for air duct and hose parts that are common to all models.

1шт.
