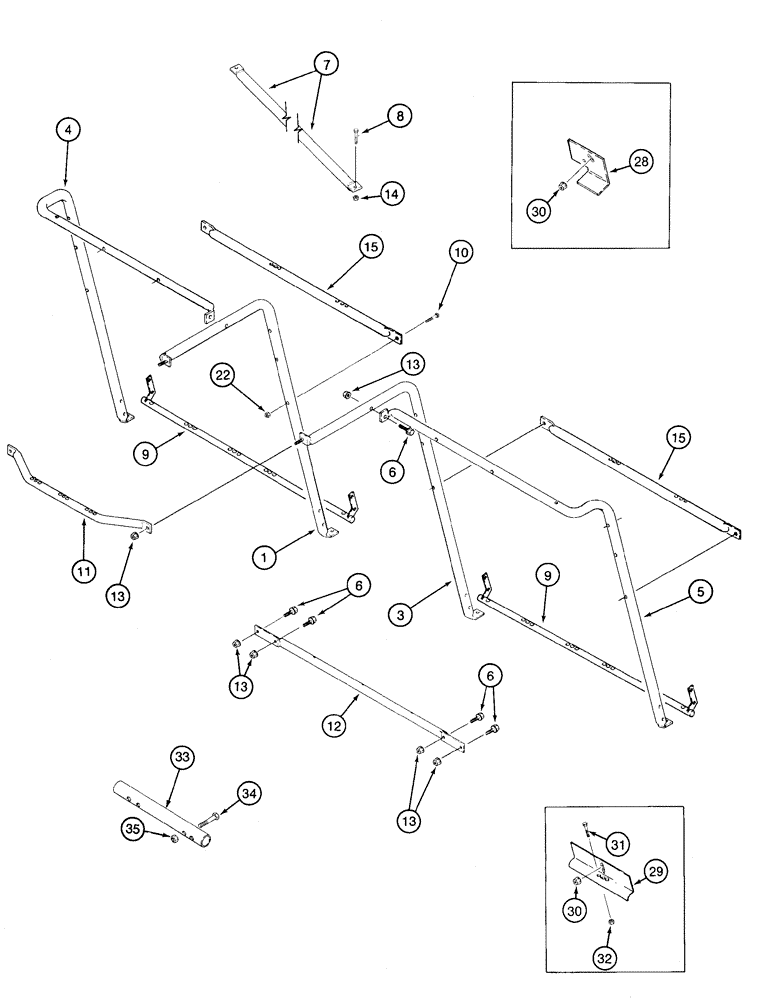

Запчасти Case IH 2155 (9C-32) - CONVEYOR CHUTE SUPPORTS (15) - HANDLING SYSTEM

1

124361A1

TUBE

- support, tube, left-hand

1шт.

3

124362A2

TUBE

- support, tube, right-hand

1шт.

4

177135A1

SUPPORT

- left-hand tube, outer

1шт.

5

1546357C3

SUPPORT TUBE,31.75 mm OD, 1335, 552 mm Length

TUBE - support, right-hand, outer

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

5шт.

7

1546356C1

TUBE,31.75 mm OD, 1066 mm Length

- brace

2шт.

8

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

9

119618A3

SUPPORT

- straight, conveyor chute, lower outer assembly

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

14шт.

11

1546355C2

TUBE,31.75 mm OD, 1100, 92 mm Length

- center pipe, upper

1шт.

12

1984388C1

SUPPORT TUBE,1180 mm Length

TUBE - pipe support

1шт.

13

231-5146

FLANGE NUT,3/8"-16

16шт.

14

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC, lock

16шт.

15

1546361C2

TUBE

- side pipe

2шт.

28

144286A1

ANGLE

- support, outer, conveyer pipe, additional 4 row, parts

1шт.

29

127588A1

CLAMP

- chute, conveyer pipe, additional 4 row, parts

2шт.

30

231-5146

FLANGE NUT,3/8"-16

Additional 4 row, parts Flg, USR, 3/8"-16

3шт.

30

231-5146

FLANGE NUT,3/8"-16

Additional 4 row, parts Flg, USR, 3/8"-16

3шт.

31

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Additional 4 row, parts Hex, 1/4"-20 x 2", G5

2шт.

32

230-4114

NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC, additional 4 row, parts

2шт.

33

120376A1

TUBE,25.4 mm OD, 255 mm Length

- skip row extension, 5 row wide

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch, Skip row, 5 row wide

1шт.

35

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC, skip row, 5 row wide

1шт.
