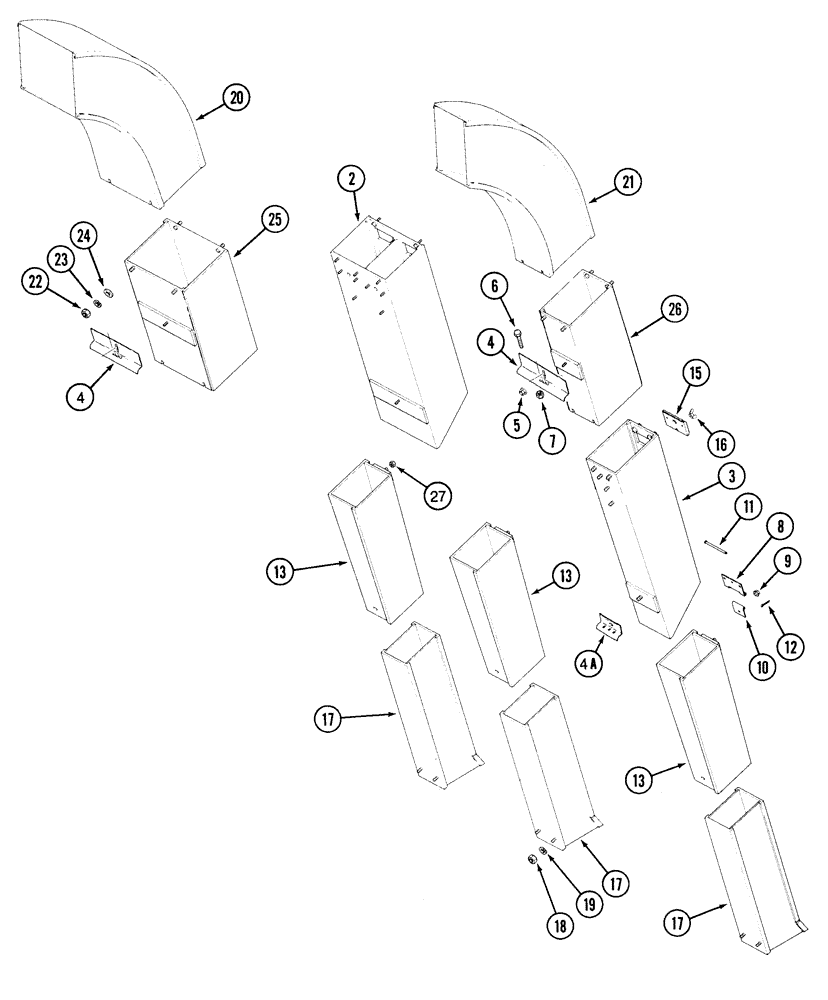

Запчасти Case IH 2155 (9C-30) - CONVEYOR CHUTES, CENTER (15) - HANDLING SYSTEM
№
Артикул
Название
Примечание
Количество
2
127877A1
CHUTE (DOWNWARD)
CHUTE - double, upper
1шт.
3
127882A1
CHUTE (DOWNWARD)
CHUTE - single, upper, 5 Row Narrow only
2шт.
4
127588A1
CLAMP
- chute, upper, 1 used on 4 Row Wide
3шт.
4a
127589A1
CLAMP
- chute, lower, 1 used on 4 Row Wide
3шт.
5
231-5146
FLANGE NUT,3/8"-16
2 used on 4 Row wide Flg, USR, 3/8"-16
6шт.
6
413-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2 used on 4 row wide Hex, 1/4"-20 x 2", G5
6шт.
7
230-4114
NUT,1/4"-20, GA
NUT - hex, self-locking, 1/4 inch NC, 2 used on 4 Row Wide
6шт.
8
1349843C1
HINGE
- female, upper, 2 used on 4 Row Wide
4шт.
9
231-4116
NUT,3/8"-16, GB
NUT - hex, self-locking, 3/8 inch NC, 4 used on 4 Row Wide
8шт.
10
1270014C1
HINGE
- short, male, 4 used on 4 Row Wide
8шт.
11
1349860C1
PIN,7.94mm OD x 129mm L
- hinge, 4 used on 4 Row Wide
8шт.
12
432-816
COTTER PIN,1/8" x 1"
4 used on 4 Row Wide 1/8" x 1"
8шт.
13
1349938C1
CHUTE
- conveyor, female, 2 used on 4 Row Wide
4шт.
15
1983180C1
COVER
- duct access, 8 used on 4 Row Wide
10шт.
16
126177
WING NUT
NUT - wing, 1/4 inch NC, 8 used on 4 Row Wide
10шт.
17
1349934C1
CHUTE (DOWNWARD)
CHUTE - conveyor, male, 2 used on 4 Row Wide
4шт.
18
425-106
NUT,3/8"-16, Cl 5
4 used on 4 Row wide 3/8"-16, G5
8шт.
19
492-11038
LOCK WASHER,3/8"
WASHER, LOCK, , 4 used on 4 row wide 3/8"
8шт.
20
1349832C2
SPOUT, DISCHARGE
HOOD - chute, double center
1шт.
21
1990234C2
SPOUT, DISCHARGE
HOOD - single center, 5 Row Narrow
2шт.
22
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC, 4 used on 4 row wide
12шт.
24
WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk
- flat, 11/32 x 1 x 3/64 inch, 4 used on 4 Row Wide
12шт.
25
127897A2
CHUTE (DOWNWARD)
CHUTE - extension, long double
1шт.
25a
127899A2
CHUTE (DOWNWARD)
CHUTE - extension, short double, not shown
2шт.
26
127902A2
CHUTE (DOWNWARD)
CHUTE - extension, long single
2шт.
26a
127905A2
CHUTE (DOWNWARD)
CHUTE - extension, short single, not shown
2шт.
Выбрано товаров: 27
