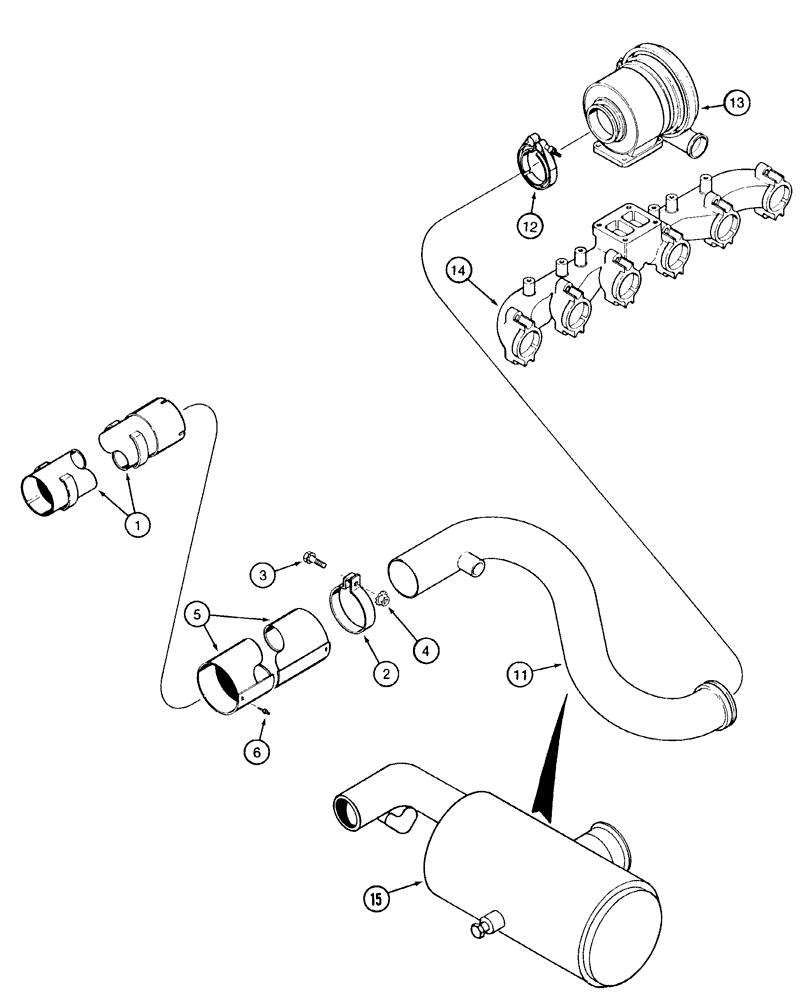

Запчасти Case IH 2155 (2-16) - EXHAUST SYSTEM (01) - ENGINE

1

1988786C3

EXHAUST SYSTEM PIPE

PIPE - exhaust

1шт.

2

1321280C2

CLAMP,92mm

- exhaust pipe

1шт.

3

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

1988788C2

TUBE,116.5 mm OD

SHIELD - tube, exhaust, replaces 1988788C1 shield

1шт.

6

151-509

RIVET,Pop, 3/16" x .325"

- break mandrel, 3/16 x 5/16 inch

7шт.

11

1998872C1

TUBE,88.9 mm OD

- exhaust

1шт.

12

A170807

CLAMP,102mm ID

exhaust tube retaining

1шт.

13

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, parts list page 2-23

1шт.

14

J906741

MANIFOLD

- exhaust, parts list page 2-19

1шт.

15

198422A1

MUFFLER

- spark arrester

1шт.
