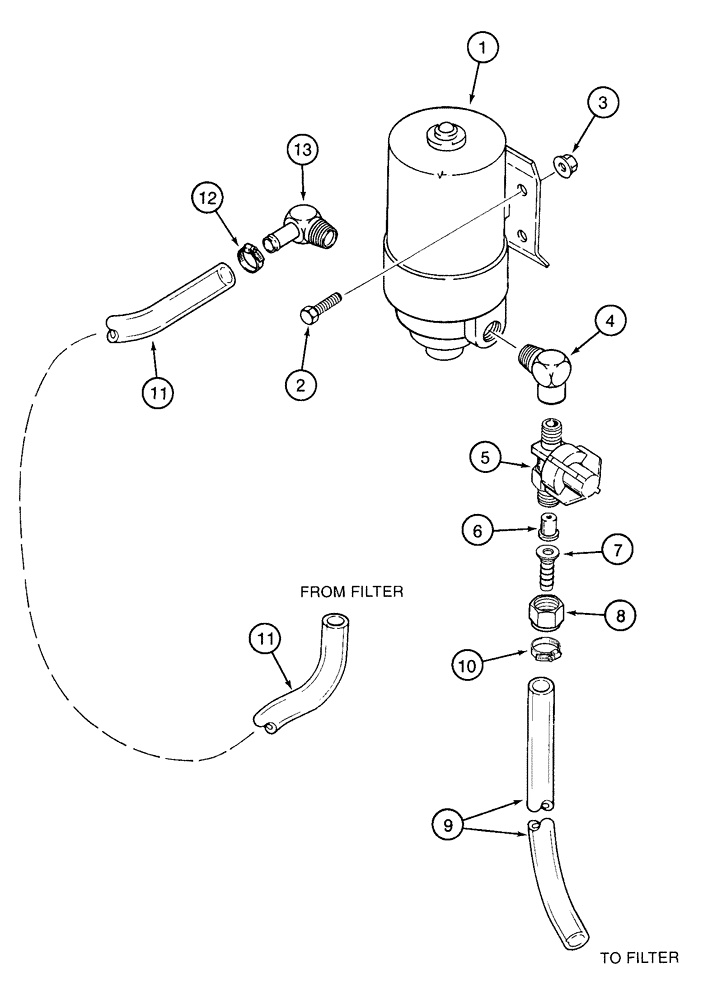

Запчасти Case IH 2155 (9B-10) - WATER PUMP MOUNTING AND LINES (14) - WATER SYSTEM

1

1338877C1

PUMP, WATER

PUMP ASSEMBLY - water, no serviceable components

1шт.

2

463-11016

SCREW,Hex Hd, #10-24 x 1"

- machine, hex head, No. 10 NC x 1 inch

4шт.

3

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

4

217-1027

ELBOW,3/8" - 18 Male x 1/4" - 18 Female

- street, 90 degree, 3/8 PT x 1/4 inch female PT

1шт.

5

1339011C1

CHECK VALVE

VALVE - check, 10 psi

1шт.

6

1339108C1

VALVE POPPET

VALVE - check

1шт.

7

1339130C1

FITTING

- stem, straight, special

1шт.

8

1339129C1

NUT

CAP - nozzle

1шт.

9

1338160C2

HOSE

- 33 (838 mm) long, cut from 1338159CX bulk hose, water pump to water filter, see below, see page 9B-7 for additional water filter lines, and page 9B-9 for water filter components

1шт.

NOTE: See page 9B-7 for water lines.

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

11

1338880C2

HOSE

- 37 inch (940 mm) long, cut from 665181R1 bulk hose, water filter to water pump, see below, see page 9B-7 for additional water filter lines, and page 9B-9 for water filter components

1шт.

NOTE: See page 9B-7 for water lines.

1шт.

12

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

13

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

(Elbow) 90º, 1/2" Hose x 3/8" NPTF, Barbed

1шт.

1338159CX

HOSE

- bulk, 3/8 (10) ID x 1200 inch (30480 mm) long

1шт.

NOTE: See page 9B-7 for water lines.

1шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.

NOTE: See page 9B-7 for water lines.

1шт.
