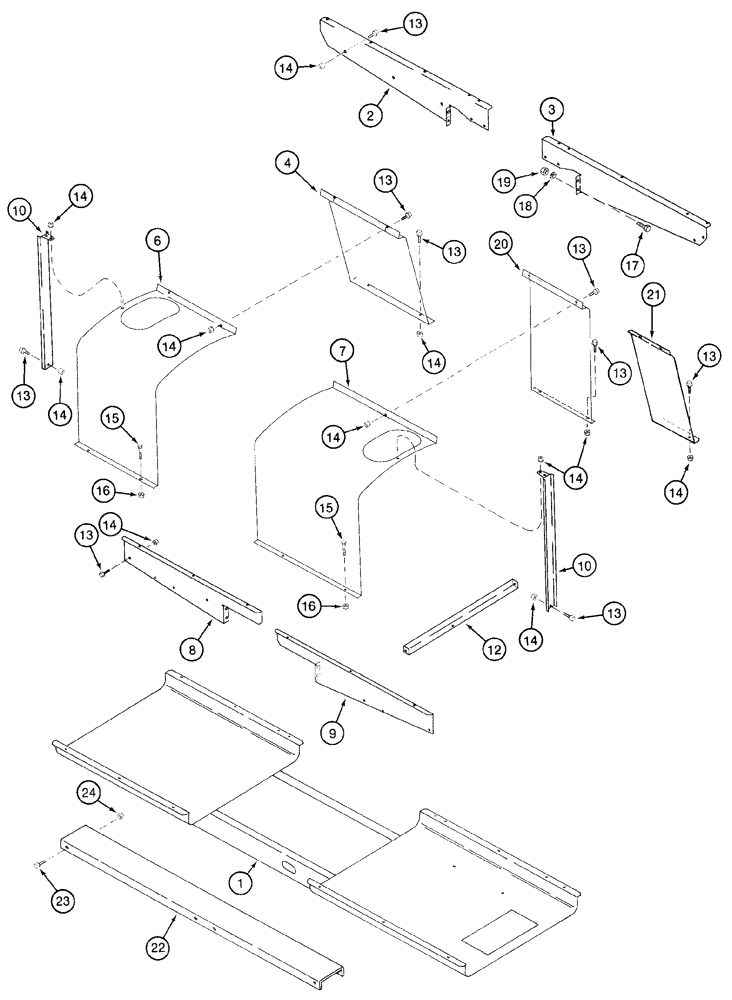

Запчасти Case IH 2155 (9B-04) - WATER AND LUBE TANK SUPPORTS (14) - WATER SYSTEM

1

1984390C6

TRAY

SADDLE - water and fuel tank, replaces 1984390C5 saddle

1шт.

2

1984394C2

SUPPORT

BRACKET - front support, left-hand side

1шт.

3

1984395C2

SUPPORT

BRACKET - front support, right-hand side

1шт.

4

128247A1

COVER

- tank, left-hand front

1шт.

6

128250A1

COVER

- tank, left-hand rear

1шт.

7

128252A1

COVER

- tank, right-hand rear

1шт.

8

1984396C1

SUPPORT

BRACKET - rear support, left-hand

1шт.

9

1984397C1

SUPPORT

BRACKET - rear support, right-hand

1шт.

10

1984441C2

BRACKET

CHANNEL - left-hand and right-hand

2шт.

12

1990483C1

ANGLE

- tank support

1шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

21шт.

14

231-5146

FLANGE NUT,3/8"-16

23шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

16

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special

6шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

128248A1

COVER

- water tank, right-hand, front

1шт.

21

128249A1

COVER

- lube tank, right-hand, front

1шт.

22

124885A2

CONDUIT

CHANNEL - cover, between water tank and basket supports

1шт.

23

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

24

231-5146

FLANGE NUT,3/8"-16

8шт.
