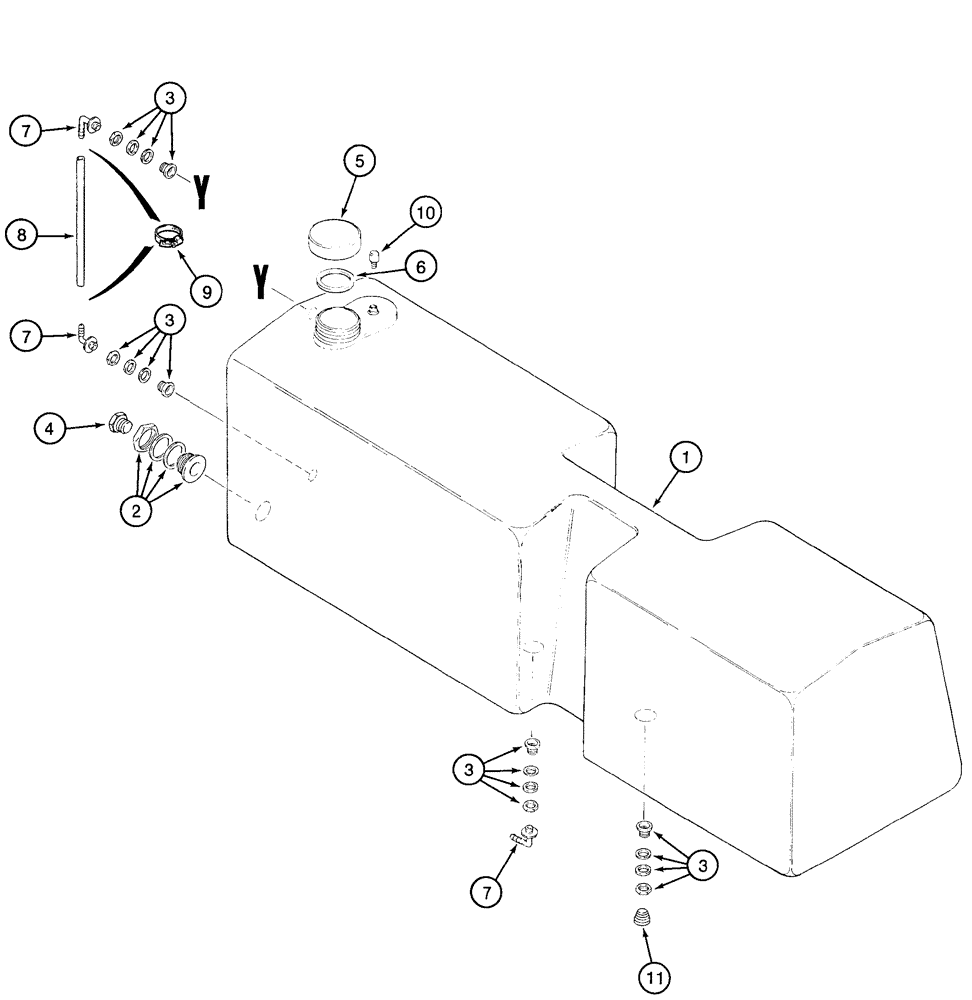

Запчасти Case IH 2155 (9B-02) - WATER TANK (14) - WATER SYSTEM

1

121402A1

TANK

- water, 385 gallon

1шт.

2

1254377C1

FITTING

- nylon, 4 piece, special, water tank

1шт.

3

1345186C1

FITTING

- nylon, 4 piece, 3/4 inch PT, water tank

4шт.

4

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- hex, special, nylon

1шт.

5

1345185C1

CAP

- water tank

1шт.

6

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

REFER TO ILLUSTRATION PAGE,TO THE LEFT OF ITEM#6 BRASS FITTING USE ADAPTER 1251790C1 O/RING 238-5210 NUT 1251791C1.ITEM 10 WILL SCREW INTO THIS FITTING ASSEMBLY.

1шт.

7

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch

3шт.

8

1545978C3

HOSE

- 27 inch (686 mm) long, cut from 665181R1 bulk hose, sight gauge, see below

1шт.

9

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj, 1/2 - 29/32 inch dia, hose

2шт.

10

1971726C1

BREATHER,1/4" - 18

- tank

1шт.

11

217-440

PLUG,3/4" - 14 NPT

- hex socket headless, 3/4 inch PT, plugs unused hole in bottom of tank

1шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.
