Запчасти Case IH 2155 (9A-86) - TOOLBARS AND EXTENSIONS (13) - PICKING SYSTEM

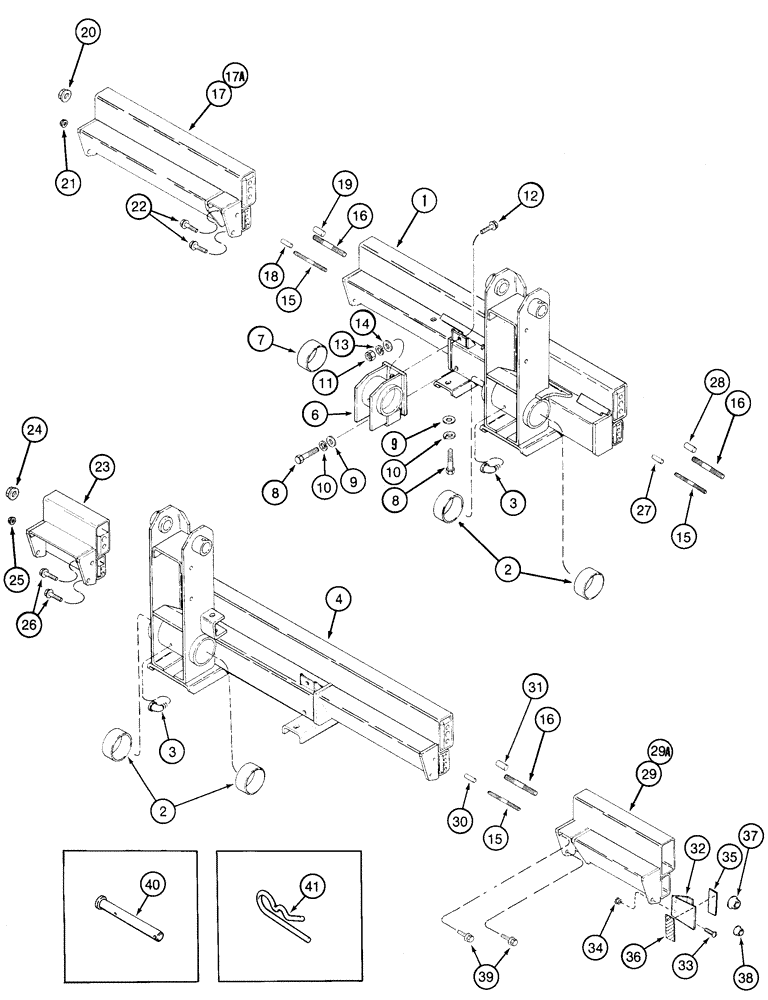

Схема запчастей Case IH 2155 - (9A-86) - TOOLBARS AND EXTENSIONS (13) - PICKING SYSTEM
12
29a
4
3
15
41
1
20
26
27
28
2
38
21
23
16
9
37
11
7
15
8
6
15
30
35
31
22
33
19
36
14
16
13
40
34
10
39
16
32
8
3
17
25
2
17a
18
29
10
9
24

Артикул

Название

Примечание

Количество

1

116218A1

BAR ASSY.

TOOLBAR - main, left-hand

1шт.

2

115792A1

BUSHING

- pivot, not shown

2шт.

3

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

5шт.

4

116220A2

BAR ASSY.

TOOLBAR - main, right-hand

1шт.

5

115792A1

BUSHING

- pivot, not shown

2шт.

6

1983056C6

SUPPORT

RETAINER - toolbar

2шт.

7

115792A1

BUSHING

- pivot

4шт.

8

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

2шт.

12

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

2шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

15

1546294C1

STUD

- toolbar, 13 x 113 mm long

5шт.

16

1546293C1

STUD

- toolbar, 19 x 113 mm long

5шт.

17

1546291C1

EXTENSION

- toolbar, left-hand, with dowels, 4 Row Wide or 5 Row Narrow models, includes items 18 and 19

1шт.

17a

119255A1

EXTENSION

- toolbar, left-hand, with dowels, 5 Row Wide models, includes items 18 and 19

1шт.

18

37-11236

DOWEL,3/4" x 2 1/4"

PIN - dowel, 3/4 x 2-1/4 inch, hardened

1шт.

19

37-11632

DOWEL,1" x 2"

PIN - dowel, 1 x 2 inch, hardened

1шт.

20

232-53112

FLANGE NUT,Flg, 3/4"-10

NUT - hex flange, self-locking, 3/4 inch NC

2шт.

21

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

2шт.

22

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

23

1546301C1

EXTENSION

- toolbar, 11-1/2 inch, 11-1/2 inch

1шт.

24

232-53112

FLANGE NUT,Flg, 3/4"-10

NUT - hex flange, self-locking, 3/4 inch NC

1шт.

25

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

26

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

27

37-11236

DOWEL,3/4" x 2 1/4"

PIN - dowel, 3/4 x 2-1/4 inch, hardened

1шт.

28

37-11632

DOWEL,1" x 2"

PIN - dowel, 1 x 2 inch, hardened

1шт.

29

1546292C1

EXTENSION

- toolbar, right-hand with dowels, 4 Row Wide or 5 Row Narrow models, includes items 30 and 31

1шт.

29a

119260A1

EXTENSION

- toolbar, right-hand with dowels, 5 Row Wide models, includes items 30 and 31

1шт.

30

37-11236

DOWEL,3/4" x 2 1/4"

PIN - dowel, 3/4 x 2-1/4 inch, hardened

1шт.

31

37-11632

DOWEL,1" x 2"

PIN - dowel, 1 x 2 inch, hardened

1шт.

32

1994997C1

BRACKET

- reflector toolbar

2шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

- serrated slotted truss head, 5/16 NC x 1 inch

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

35

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

36

1284365C2

REFLECTOR

- amber

2шт.

37

232-53112

FLANGE NUT,Flg, 3/4"-10

NUT - hex flange, self-locking, 3/4 inch NC

2шт.

38

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

2шт.

39

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

40

118485A1

PIN,12.7mm OD x 150.75mm L

- hanger hold-down

1шт.

41

586591R1

COTTER PIN

PIN - cotter, hair

1шт.

118604A1

PACKAGE

KIT - toolbar, right-hand, 4 Row Wide, includes (1) each of items 4, 23, 27, 28, 29, 40 41, and (3) each of items 15 and 16, shown on pages 9A-87 and 9A-89

1шт.

118605A1

PACKAGE

KIT - toolbar, left-hand, 4 Row Wide, includes (1) each of items 1 and 17 and (2) each of items 15 and 16, shown on page 9A-87

1шт.

118606A1

PACKAGE

KIT - toolbar, right-hand, 5 Row Narrow, includes (1) each of items 4 and 29 and (2) each of items 15 and 16, shown on page 9A-87

1шт.

118607A1

PACKAGE

KIT - toolbar, left-hand, 5 Row Narrow, includes (1) each of items 1, 17, 23, 27, 28, 40, 41, and (3) each of items 15 and 16, shown on page 9A-87

1шт.
