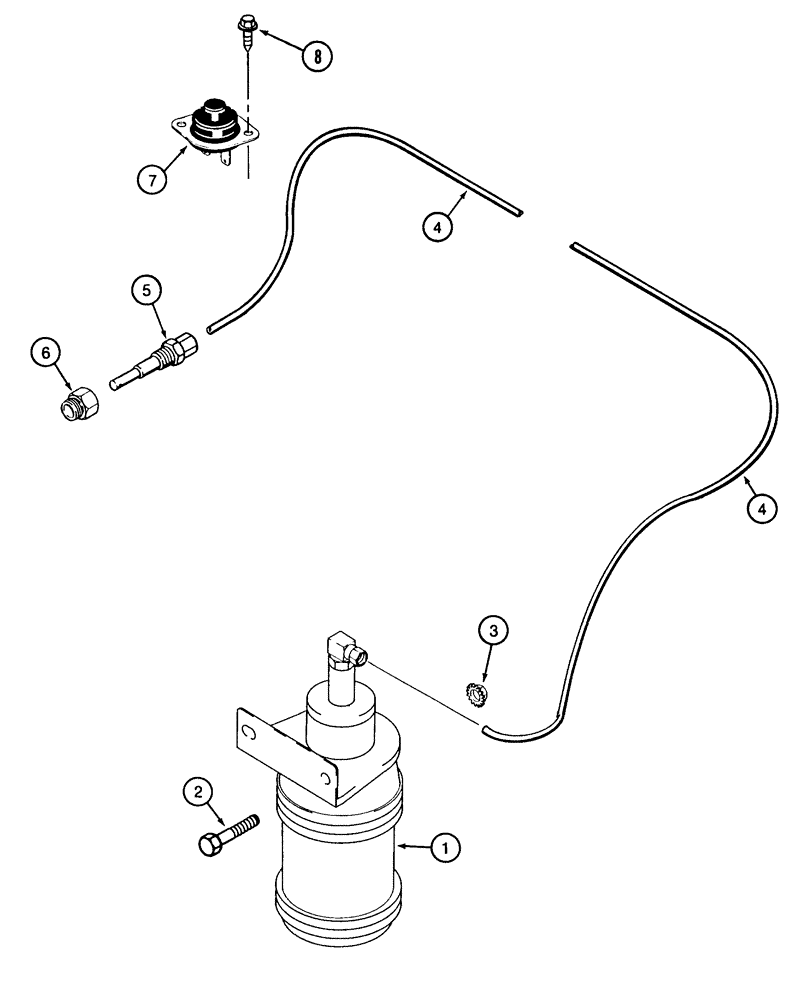

Запчасти Case IH 2155 (2-14) - ETHER STARTING SYSTEM (01) - ENGINE

1

185552A1

SOLENOID

- ether injection, 12 volt

1шт.

1a

190752A1

HOUSING

- ether injection solenoid, not shown

1шт.

2

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

4

86829C1

PLASTIC-RUBBER TUBE,0.125" OD x 14" L

TUBE - 14 inch (356 mm) long, cut from 1954063CX bulk tube, solenoid to nozzle, see below

1шт.

5

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer

1шт.

6

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch female PT

1шт.

7

D67872

SWITCH

- push button, ether start

1шт.

8

281-5358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

1954063CX

TUBE

- bulk, 1/8 (3) OD x 1200 inch (30480 mm) long

1шт.
