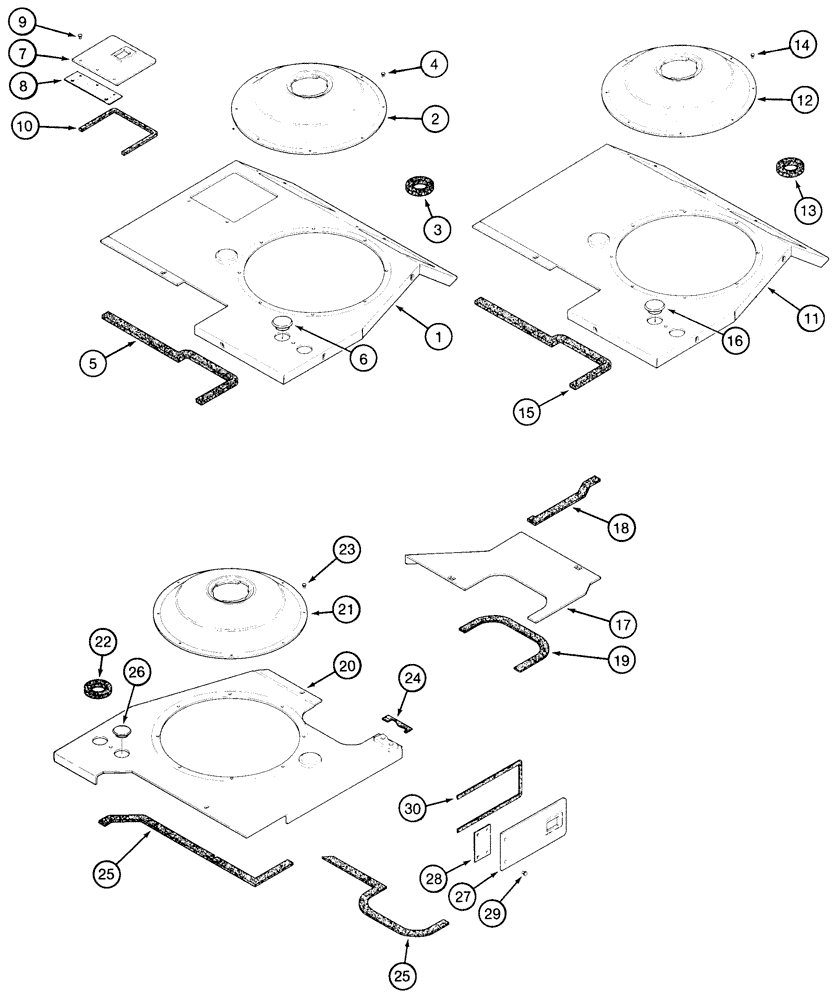

Запчасти Case IH 2155 (9A-84) - DRUM COVERS (13) - PICKING SYSTEM

1982724C1

COVER ASSY

COVER ASSEMBLY - upper, front, with opening for operator presence system

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - top front

1шт.

2

1982649C1

COVER

- drum rotor

1шт.

3

1990287C1

GASKET

GASKET - doffer, foam, foam

1шт.

4

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

5

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 540 mm, cut from 195917C1 bulk seal, see below

1шт.

6

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

1982665C2

COVER ASSY

COVER ASSEMBLY - access

1шт.

7

1982666C2

COVER

- access, large

1шт.

8

1982668C1

HINGE

- access cover

1шт.

9

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

3шт.

10

1994969C1

SEALING STRIP

- foam, 17-3/4 inch (450 mm) long, cut from 199468C1 bulk seal, see below

1шт.

1982627C1

COVER ASSY

COVER ASSEMBLY - upper, front, right-hand

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - top front

1шт.

12

1982649C1

COVER

- drum rotor

1шт.

The rotor cover that fits on the drum rotor cover-1982649c1 is 1982787c2---on page 9a-78.

1шт.

13

1990287C1

GASKET

GASKET - doffer, foam

1шт.

14

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

15

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 540 mm long, cut from 195917C1 bulk seal see below

1шт.

16

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

1990261C2

COVER ASSY

COVER ASSEMBLY - top, center

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - top, center

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 262 mm long, cut from 195917C1 bulk seal, see below

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 390 mm long, cut from 195917C1 bulk seal, see below

1шт.

1982764C2

COVER ASSY

COVER ASSEMBLY - top, rear

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - top rear

1шт.

21

1982649C1

COVER

- drum rotor

1шт.

22

1990287C1

GASKET

GASKET - doffer, foam

1шт.

23

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

24

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 80 mm long, cut from 187874C1 bulk seal, see below

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 600 mm long , cut from 195917C1 bulk seal, see below

2шт.

26

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

1982669C2

COVER ASSY

COVER ASSEMBLY - access

1шт.

Latch for # 1982669c2 is a 1982673c1

1шт.

27

1982670C2

COVER

- access, small

1шт.

28

1982672C1

HINGE

- access cover

1шт.

29

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

2шт.

30

1994970C1

SEALING STRIP

- foam, 20-1/8 inch (512 mm) long, cut from 1994968C1 bulk seal, see below

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 1/8 (3) x 3/8 (10) x 600 inch (15240 mm) long

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

1994968C1

FOAM INSULATION

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

FOOTNOTE

1шт.

for black safety - sandpaper type tape Marv Hood found 7827728 which is 4" x 19.882 " used on drum cover kl 10/21/97

1шт.

FOOTNOTE

1шт.

FOOTNOTE

1шт.

FOOTNOTE

1шт.
