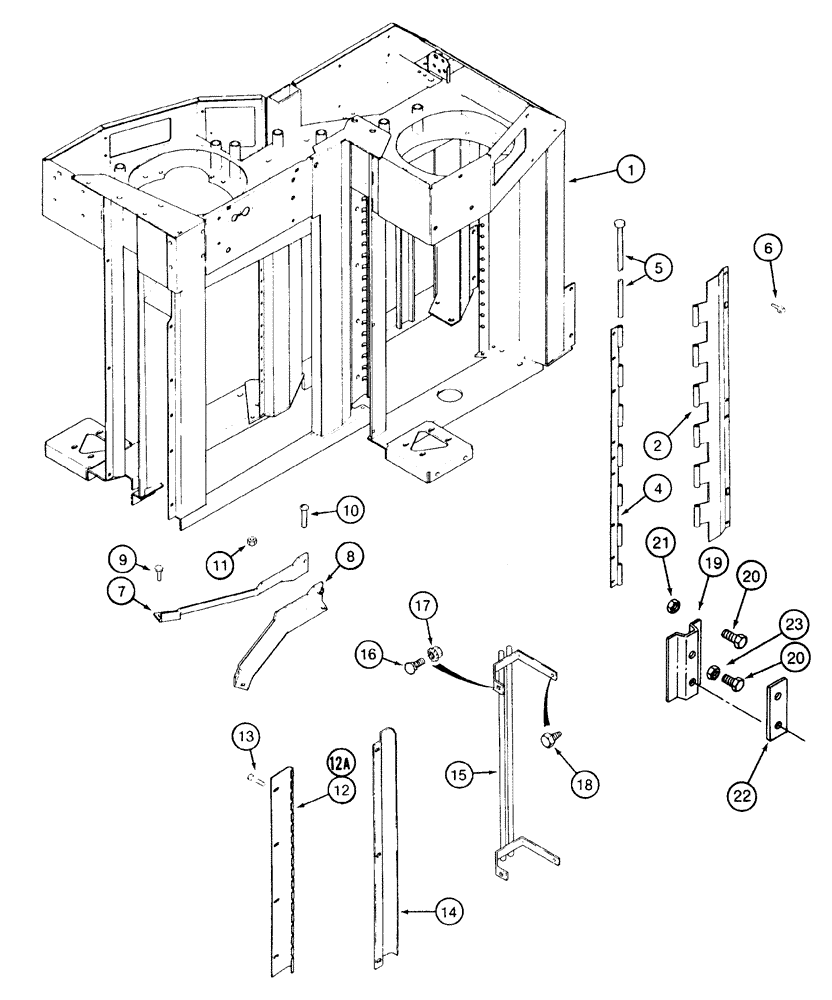

Запчасти Case IH 2155 (9A-82) - DRUM HOUSING (13) - PICKING SYSTEM

1

NSS

NOT SOLD SEPARAT

HOUSING - drum frame, order 1545965C3 drum housing service kit

1шт.

2

1982598C3

HINGE

POST - doffer

4шт.

4

1982599C1

HINGE

- doffer post

2шт.

5

1982600C1

PIN,7.94mm OD x 962mm L

- doffer post hinge

4шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

8шт.

7

1990342C2

ANGLE BAR

ANGLE - wear, left-hand

2шт.

8

1990343C2

ANGLE BAR

ANGLE - wear, right-hand

2шт.

9

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

10

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

- serrated slotted truss head, 5/16 NC x 1 inch

4шт.

11

425-106

NUT,3/8"-16, Cl 5

8шт.

12

1990345C1

PLATE

- vine knife, slat bar post, right-hand

1шт.

12a

1988970C2

PLATE

- vine knife, slat bar post, left-hand

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

14

1990349C1

PLATE

- vine knife, trash post, left-hand and right-hand

1шт.

15

108497A1

GRATE

- trash

1шт.

16

411-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

18

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.

19

177623A1

SUPPORT

CHANNEL - drum bumper

1шт.

Items 19 through 23 are used on No. 3 drum, 5 row narrow and No. 2 drum, 4 row narrow only.

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

Items 19 through 23 are used on No. 3 drum, 5 row narrow and No. 2 drum, 4 row narrow only.

1шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

Items 19 through 23 are used on No. 3 drum, 5 row narrow and No. 2 drum, 4 row narrow only.

1шт.

22

1984383C1

BAR

WEARSTRIP - guide bar top

1шт.

Items 19 through 23 are used on No. 3 drum, 5 row narrow and No. 2 drum, 4 row narrow only.

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

Items 19 through 23 are used on No. 3 drum, 5 row narrow and No. 2 drum, 4 row narrow only.

1шт.

1545965C3

PACKAGE,SERVICE

KIT - drum housing service

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - drum frame, service kit

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch, Drum housing, Service kit

2шт.

7

1990342C1

ANGLE BAR

ANGLE - wear, left-hand, drum housing, service kit

1шт.

8

1990343C1

ANGLE BAR

ANGLE - wear, right-hand, drum housing , service kit

1шт.

9

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, drum housing, service kit

2шт.

10

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

- serrated slotted truss head, 5/16 NC x 1 inch, drum housing, service kit

2шт.

11

425-106

NUT,3/8"-16, Cl 5

Drum housing, Service kit 3/8"-16, G5

8шт.

11

425-106

NUT,3/8"-16, Cl 5

Drum housing, Service kit 3/8"-16, G5

8шт.

231-5146

FLANGE NUT,3/8"-16

Drum housing, Service kit Flg, USR, 3/8"-16

4шт.

223977C1

PLATE

- adjusting, doffer, parts list page 9A-53, drum housing, service kit

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Parts list page 9A-53

8шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, See page 9A-53, drum housing, service kit

16шт.

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Parts list page 9A-53, drum housing, service kit 3/8"

8шт.

216828C2

GUIDE

SLAT - plant, left-hand, parts list page 9A-65, drum housing, service kit

17шт.

216829C2

GUIDE

SLAT - plant, right-hand, parts list page 9A-65, drum housing, service kit

17шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, Parts list page 9A-65, drum housing, service kit

34шт.

87058C1

BELLEVILLE WASHER

- Belleville lock, parts list page 9A-65, drum housing, service kit

34шт.
