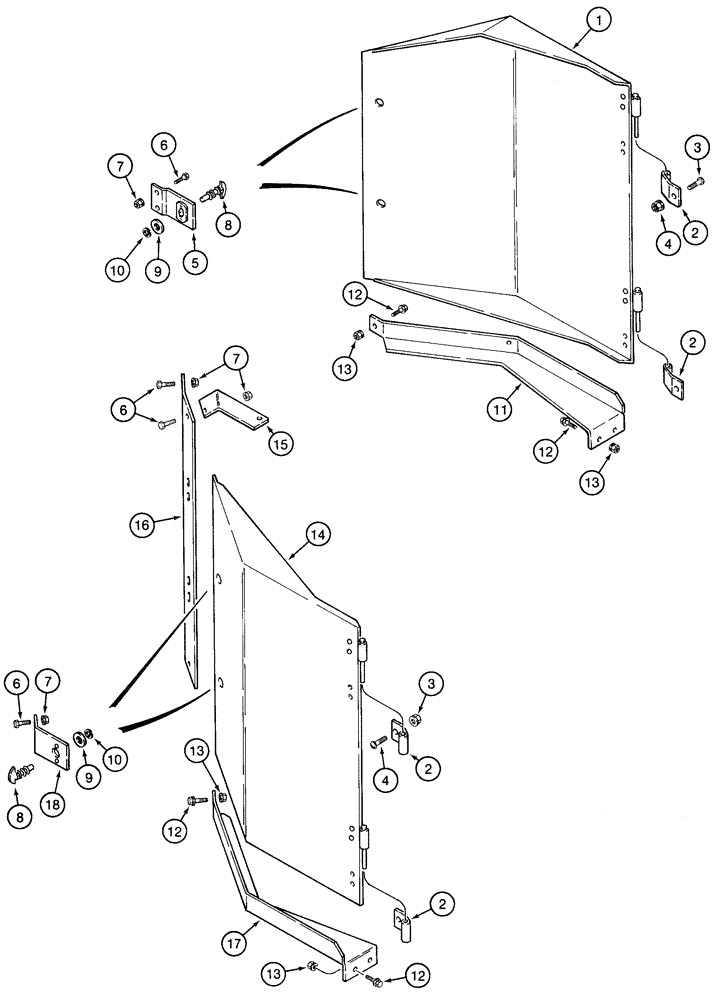

Запчасти Case IH 2155 (9A-80) - FRONT AND REAR DOORS (13) - PICKING SYSTEM

1

118129A1

DOOR

- plastic, front

1шт.

2

1546411C1

HINGE

- door, front

4шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

1546413C1

LATCH

- door, front

2шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", Door latch

12шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

8

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - fastener

4шт.

9

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch, 6 per fastener

24шт.

10

1326407C1

RETAINER

- stud fastener

4шт.

11

1990320C2

ANGLE BAR

ANGLE - door, front

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

14

118126A1

DOOR

- plastic, rear, use with 5 Row Narrow only

1шт.

REF#14 FOR 5 ROW NARROW USE 182022A1

1шт.

15

1546428C1

BRACKET

- plate support

1шт.

16

1546426C1

BRACKET

PLATE - door

1шт.

17

117998A1

SUPPORT

ANGLE - rear door, lower

1шт.

18

1546425C1

LATCH

- door, rear

2шт.
