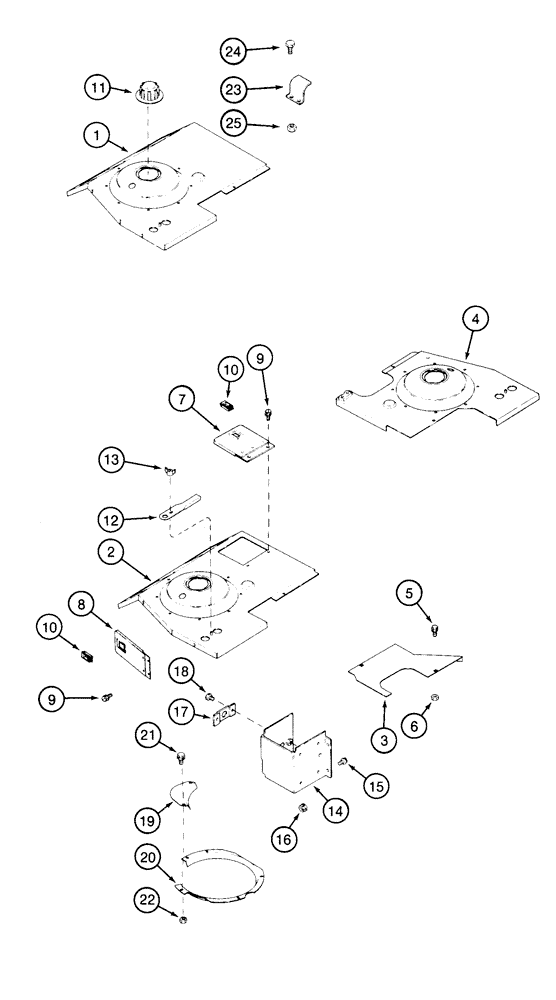

Запчасти Case IH 2155 (9A-78) - COVERS (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
1
1982627C1
COVER ASSY
COVER ASSEMBLY - upper, front
1шт.
See page 9A-85 for serviceable components.
1шт.
2
1982724C1
COVER ASSY
COVER ASSEMBLY - upper, front, operator presence system
1шт.
See page 9A-85 for serviceable components.
1шт.
3
1990261C2
COVER ASSY
COVER ASSEMBLY - top, center
1шт.
See page 9A-85 for serviceable components.
1шт.
4
1982764C2
COVER ASSY
COVER ASSEMBLY - top, rear
1шт.
See page 9A-85 for serviceable components.
1шт.
5
409-7412
BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl
- hex serrated flange, 1/4 NC x 3/4 inch
19шт.
6
673689R1
NUT
- speed, special, 1/4 inch NC
19шт.
7
1982665C1
COVER ASSY
COVER - access, large
1шт.
See page 9A-85 for serviceable components.
1шт.
8
1982669C1
COVER ASSY
COVER - access, small
2шт.
See page 9A-85 for serviceable components.
1шт.
9
477-82508
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"
- serrated slotted truss head, 1/4 NC x 1/2 inch
1шт.
10
1982673C1
LATCH
- cover
1шт.
11
1982787C2
PLUG
COVER - rotor
2шт.
12
1982894C2
LOCKING PLATE
PLATE - lock, doffer adjustment
2шт.
13
126177
WING NUT
NUT - wing, 1/4 inch NC
2шт.
14
1982730C1
SUPPORT
CHANNEL - tether
1шт.
15
477-82508
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"
- serrated slotted truss head, 1/4 NC x 1/2 inch
1шт.
17
91795C1
SUPPORT
BRACKET - transducer mounting
1шт.
18
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
- machine, hex head, No. 10 NC x 1/2 inch
1шт.
19
1982858C1
COVER
- access, picker bar
2шт.
20
1988726C1
RING
- rotor guard, left-hand
1шт.
20
1988727C1
RING
- rotor guard, right-hand
1шт.
21
409-7412
BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl
- hex serrated flange, 1/4 NC x 3/4 inch
14шт.
22
673689R1
NUT
- speed, special, 1/4 inch NC
14шт.
23
1983176C2
BRACKET
- rotor wrench
1шт.
24
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
2шт.
25
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
Выбрано товаров: 32
