Запчасти Case IH 2155 (9A-60) - PLANT LIFTER, LEFT-HAND (13) - PICKING SYSTEM

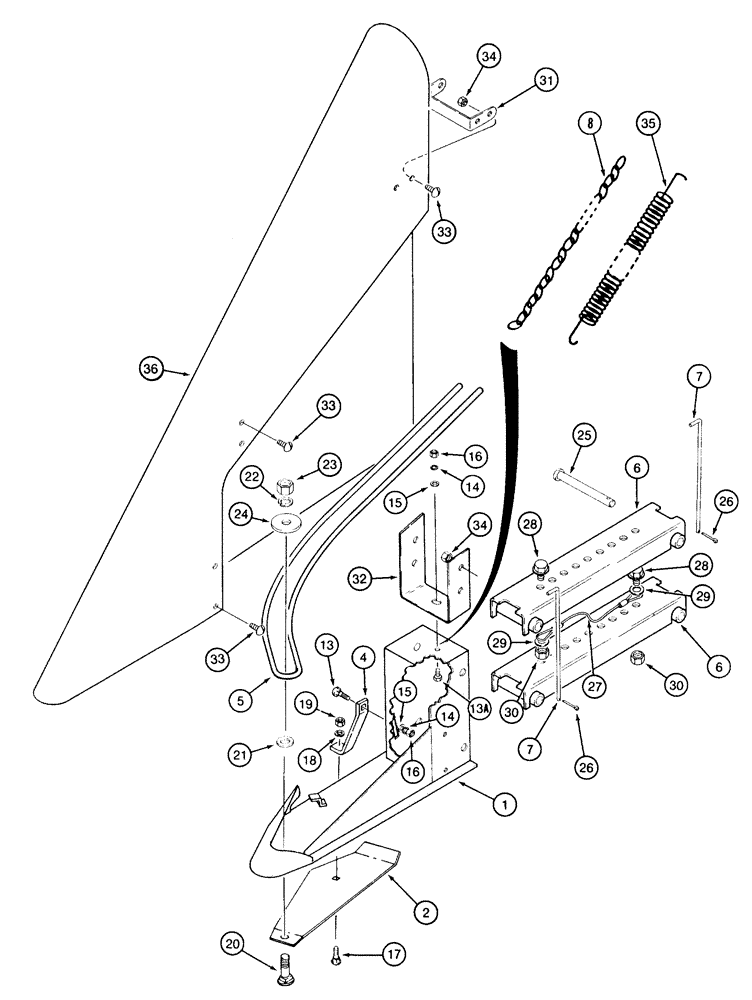

Схема запчастей Case IH 2155 - (9A-60) - PLANT LIFTER, LEFT-HAND (13) - PICKING SYSTEM
18
6
33
25
27
14
31
29
1
7
28
5
23
21
33
2
26
34
30
30
16
8
4
15
22
15
20
34
16
7
24
26
14
28
32
13
33
29
6
35
19
13a
17
36

Артикул

Название

Примечание

Количество

138963A1

RECTIFIER

LIFTER ASSEMBLY - plant, left-hand

1шт.

The plant lifter body, item 36, is not included with the lifter assembly. Order separately.

1шт.

1

216959C2

SHOE

- lifter

1шт.

2

216969C3

LARGE PLATE

PLATE - skid

1шт.

4

216972C1

SUPPORT

- skid plate

1шт.

5

1345015C1

ROD

- lifter, hardened

1шт.

6

220229C5

SUPPORT

BRACKET - lifter

2шт.

7

674820R1

PIN,4.76mm OD

- shoe

2шт.

8

87421C1

CHAIN,496mm L

- lift

1шт.

13

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

13a

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

18

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

1шт.

21

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

3шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

24

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch

1шт.

25

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

PIN - headed, 1/2 x 4-1/4 inch, grade 2

4шт.

26

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

27

126840A1

CABLE

- plant lifter stop

1шт.

28

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

30

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

31

126349A2

SUPPORT

BRACKET - lifter body, upper

1шт.

32

126350A1

SUPPORT

BRACKET - support, center

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

10шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

35

655919R1

SPRING

- lifter

1шт.

36

126348A1

HOUSING

BODY - plastic, lifter

1шт.

Выбрано товаров: 34
